Description

Price

1

Not Available As Spare Parts

XXX

Unavailable

2

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

$239.99

3

Support Plate Rh This part replaces M5344811.

5344811

$53.99

3

Support Plate Lh This part replaces M5344810.

5344810

$53.99

4

Support For Rearaxle Rh This part replaces M539673.

539673

$88.99

4

Support For Rearaxle Lh This part replaces M539672.

539672

$88.99

5

RIVET - Call your local BRP dealership

M544212

Unavailable

6

RUBBER STOPPER - Call your local BRP dealership

570023100

$16.99

7

Hex. Screw M6 X 40

207064044

$1.48

8

Washer

M548387

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Runner Protector

605348954

$19.49

11

Hex. Screw M6 X 25

207162544

$1.15

12

Flat Washer 6 mm

234061410

$1.36

13

Runner Shoe

M549582

$34.99

14

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

15

Elastic Stop Nut M6

232561414

$0.55

16

Front Arm

605254837

$434.49

17

Shaft This part replaces M549695.

549695

$39.99

18

Boggie Shaft This part replaces M542794.

542794

$53.99

19

Plastic Bushing This part replaces M541528.

541528

$4.00

20

Shaft Sleeve This part replaces M542770.

542770

$19.99

21

Spring Roller This part replaces M548799.

548799

$13.49

22

Hex. Screw M10 X 40

207004044

$4.76

23

Elastic Locking Nut M10 X 1.5

233601416

$1.69

24

Axle

M5345453

Unavailable

25

Plate Support

M548469

Unavailable

26

Sleeve

M5440313

Unavailable

27

Sleeve

M548841

Unavailable

28

Cross Shaft

M549718

Unavailable

29

STOPPER STRAP - Call your local BRP dealership

605454841

Unavailable

30

Bolt-Eye Adjuster

M5441643

Unavailable

31

SPRING - Call your local BRP dealership

414460600

Unavailable

32

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

33

Pin

M5441645

Unavailable

34

Flat Washer 10 mm

234001410

$1.26

35

Circlip

M41035

Unavailable

36

RH Front Arm Spring

605354840

$54.99

36

LH Spring Front Arm

605354839

$54.99

37

Bras Arr*Rear Arm This part replaces M5348213.

5348213

$519.49

38

Shaft This part replaces M5347731.

5347731

$209.99

39

Bearing This part replaces M31023.

31023

$14.22

40

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

41

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

42

Crank Arm R.H. This part replaces M5440350.

5440350

$88.99

43

Crank Arm Lh This part replaces M5440349.

5440349

$76.99

44

Spacer This part replaces M545758.

545758

$27.99

45

Hex. Screw M8 X 45

207084544

$1.48

46

Hex. Elastic Stop Nut M8

232581414

$0.56

47

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

$14.99

48

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

49

Spring R.H. This part replaces M538806.

538806

$58.49

49

Spring L.H. This part replaces M538805.

538805

$72.99

50

SPRING SUPPORT - Call your local BRP dealership

M5442112

Unavailable

51

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

51

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

52

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

53

Thin Wheel 165

503189478

$51.99

54

Wheel 135

503191029

$33.99

55

Cushion

503189534

$4.76

56

Support Shaft

M549680

Unavailable

57

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

$4.59

58

Sleeve

M546577

Unavailable

59

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

60

Washer

503183100

$3.17

61

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.44

62

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.17

63

Hex. Screw With Nylon Patch

M40050

Unavailable

64

Washer

503183300

$5.82

65

Hex. Screw M8 x 16

207181644

$1.15

66

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

67

Protector

M548262

Unavailable

68

Axle This part replaces M541816.

541816

$60.49

69

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

$58.99

70

Cup Spring This part replaces M25004.

25004

$3.69

71

Axe *Shaft

M5341979

Unavailable

72

Sleeve

M541815

Unavailable

73

Sleeve

M5441980

Unavailable

74

Spacer This part replaces M5440422.

5440422

$27.99

75

Spacer

605633002

$1.48

76

SCREW - Call your local BRP dealership

M40239

Unavailable

77

Hex. Nut M10 X 1.5

232006414

$1.37

78

Flat Washer 10 mm This part replaces M20011.

234002410

$1.48

79

Loctite 243, 10 ml

293800060

$21.49

80

Retainer for stopper strap - Call your local BRP dealership

605349381

Unavailable

81

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

82

SHIM - Call your local BRP dealership

M31091

Unavailable

83

SHOCK - Call your local BRP dealership

503189997

$234.99

84

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

85

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

86

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

Unavailable

87

Wheel 165 mm Yellow

503190817

$51.99

88

Wheel 135, Yellow

503190785

$33.99

89

Adjustment Plate This part replaces M5440645.

5440645

$17.99

90

Ball Bearing

293350115

$12.11

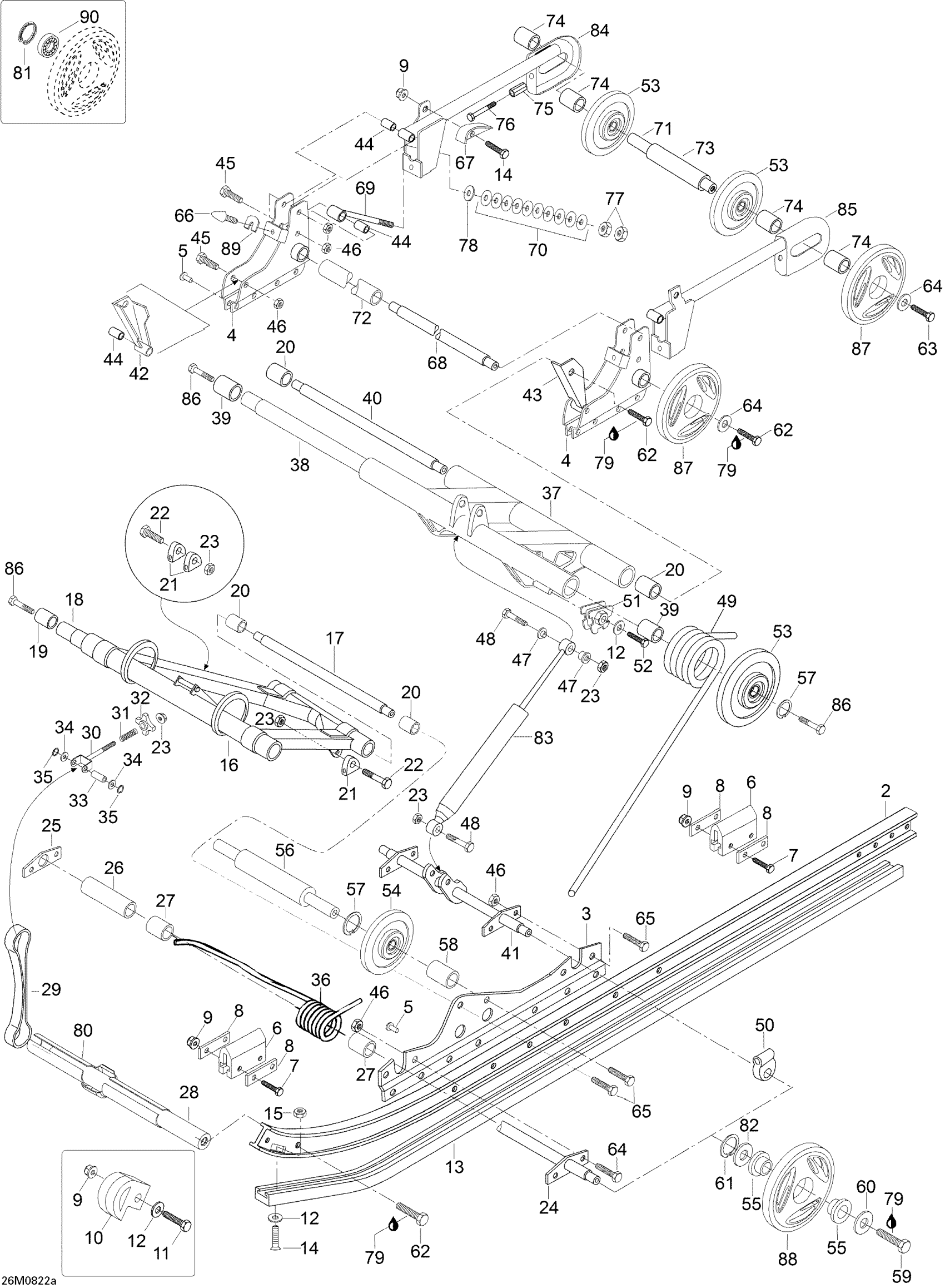

Ski-Doo Skandic SWT 550F, 2008 08- Rear Suspension SWT 550F Diagram
