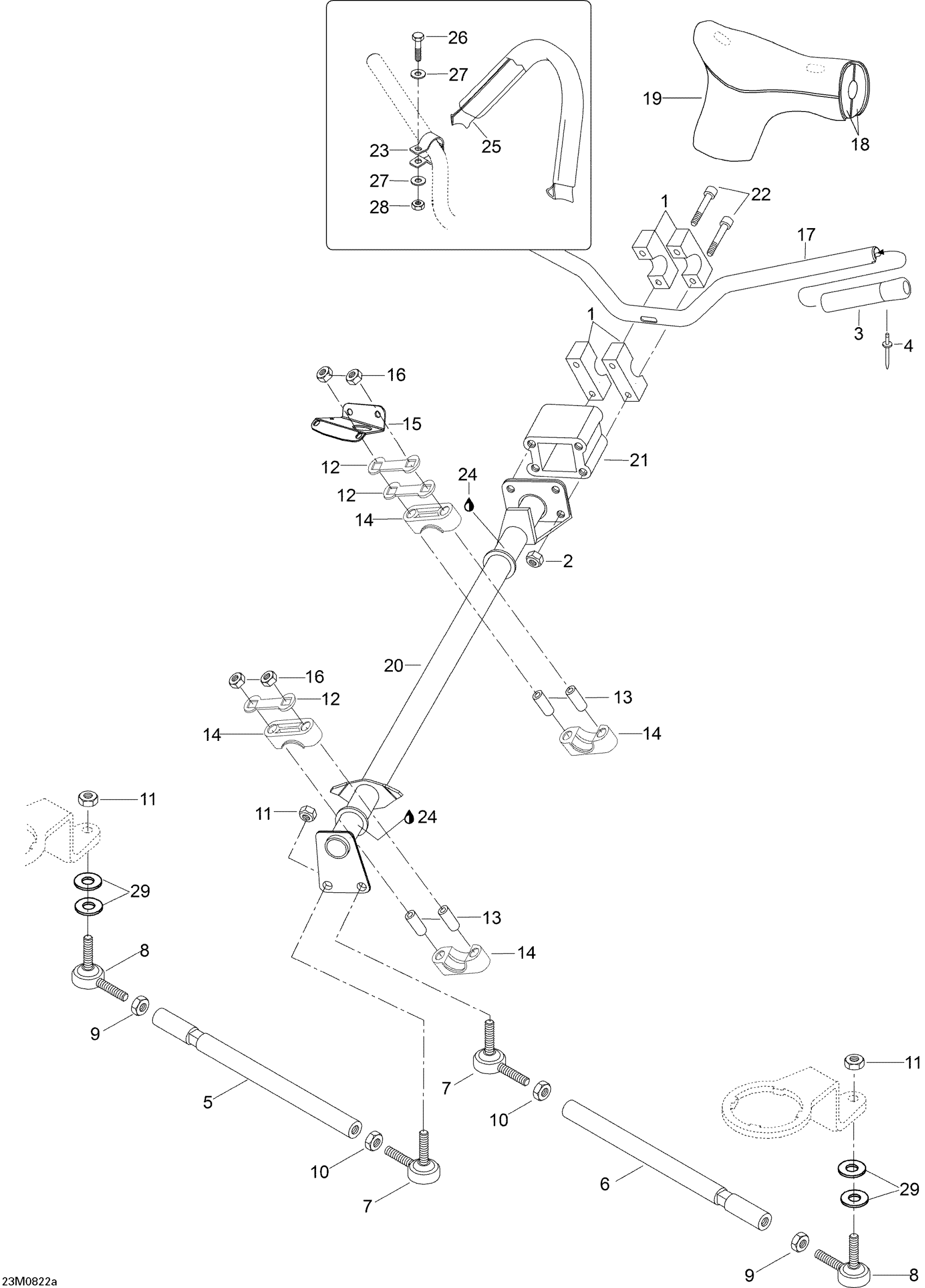

Ski-Doo Skandic SWT 550F, 2008 07- Steering SWT 550F Diagram

#

Description
Price

1

Support Guidon *Support-Steer.

M548448

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Grip | WAKE This part replaces M5340464.

506152483

$12.17

4

Rivet

36005

$2.11

5

ROD_LINK - Call your local BRP dealership

605455619

Unavailable

6

ROD_LINK - Call your local BRP dealership

605455620

Unavailable

7

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

8

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

9

RH NUT - Call your local BRP dealership

M33019

Unavailable

10

LH NUT - Call your local BRP dealership

M33017

Unavailable

11

Elastic Flange Nut M10

232501416

$1.48

12

Stopper Plate

506150600

$4.39

13

Housing Bushing

506150500

$7.99

14

Housing Half

506150400

$7.62

15

CONSOLE HOLDER - Call your local BRP dealership

605352322

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

HANDLE BAR - Call your local BRP dealership

605251368

$92.99

18

FOAM, REAR - Call your local BRP dealership

605252111

Unavailable

18

FOAM, FRONT - Call your local BRP dealership

605252110

Unavailable

19

STEERING COVER - Call your local BRP dealership

605254571

Unavailable

20

MAIN TUBE - Call your local BRP dealership

605255608

Unavailable

21

EXTENSION - Call your local BRP dealership

605349584

Unavailable

22

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

M40124

Unavailable

23

Black Support Plate

506152536

$9.19

24

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

25

Strap Ass'y | Package XMR

506152115

$44.49

26

Hex. Screw M6 X 25

207162544

$1.15

27

Flat Washer 6 mm

234061410

$1.36

28

Elastic Stop Nut M6

232561414

$0.55

29

Washer

M31014

Unavailable
