Description

Price

1

Lower Cushion

414803200

$14.68

2

Upper Cushion

414803100

$10.49

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

$28.99

4

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

5

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

6

PAINTED COVER - Call your local BRP dealership

605249284

Unavailable

7

SPACER - Call your local BRP dealership

503145600

Unavailable

8

Rubber Bumber

605354835

$16.49

9

Washer This part replaces M549493.

549493

$15.28

10

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

11

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

12

SHOCK - Call your local BRP dealership

505070920

Unavailable

13

Spring This part replaces M5241330.

5241330

$67.99

14

RH STEERING ARM - Call your local BRP dealership

605353422

$184.99

14

LH STEERING ARM - Call your local BRP dealership

605353423

Unavailable

15

Hex. Screw M6 X 25

207162544

$1.15

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Support Ass'Y This part replaces M5344180.

619380015

$45.99

18

Screw

M40146

Unavailable

19

Elastic Stop Nut M4

232541414

$0.58

20

Lock Washer 8 mm

234181401

$0.92

21

Socket Head Screw M8 X 20

205082044

$1.15

22

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$14.22

23

Ski Axle

505073209

$16.49

24

Cushion

572034500

$12.58

25

Elastic Locking Nut M10 X 1.5

233601416

$1.69

26

Grease Fitting

M34019

Unavailable

27

Ski | Europe models

505073034

$238.49

28

Ski Liner

605153964

$106.49

29

Black, Handle

505070963

$35.99

30

Retainer 17mm long

505071812

$5.95

31

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

$95.99

32

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

33

Rubber Stopper

605348439

$39.99

34

PLATE SUPPORT - Call your local BRP dealership

605348437

$20.99

35

Bushing

605448594

$12.58

36

PLASTOFAST SCREW 6X18 - Call your local BRP dealership

605640019

Unavailable

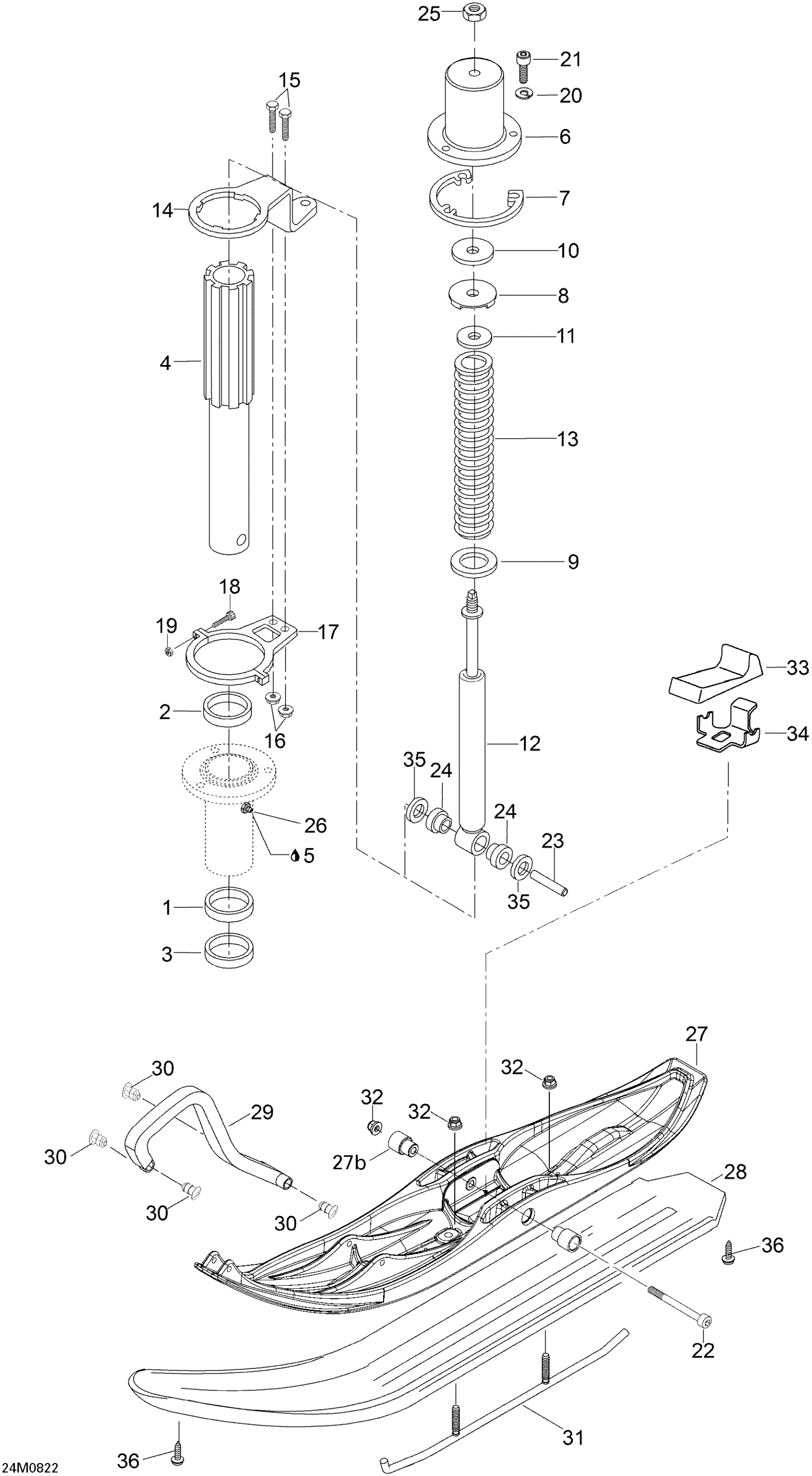

Ski-Doo Skandic SWT 550F, 2008 07- Front Suspension And Ski SWT 550F Diagram

Lower Cushion

Upper Cushion

Seal - Call your local BRP dealership This part replaces M316373.

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

PAINTED COVER - Call your local BRP dealership

SPACER - Call your local BRP dealership

Rubber Bumber

Washer This part replaces M549493.

Absorberfibber washer - Call your local BRP dealership

Absorberfibber washer - Call your local BRP dealership

SHOCK - Call your local BRP dealership

Spring This part replaces M5241330.

RH STEERING ARM - Call your local BRP dealership

LH STEERING ARM - Call your local BRP dealership

Hex. Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Support Ass'Y This part replaces M5344180.

Screw

Elastic Stop Nut M4

Lock Washer 8 mm

Socket Head Screw M8 X 20

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

Ski Axle

Cushion

Elastic Locking Nut M10 X 1.5

Grease Fitting

Ski | Europe models

Ski Liner

Black, Handle

Retainer 17mm long

Carbide Round Runner Kit | Europe models This part replaces 605352643.

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

Rubber Stopper

PLATE SUPPORT - Call your local BRP dealership

Bushing

PLASTOFAST SCREW 6X18 - Call your local BRP dealership
