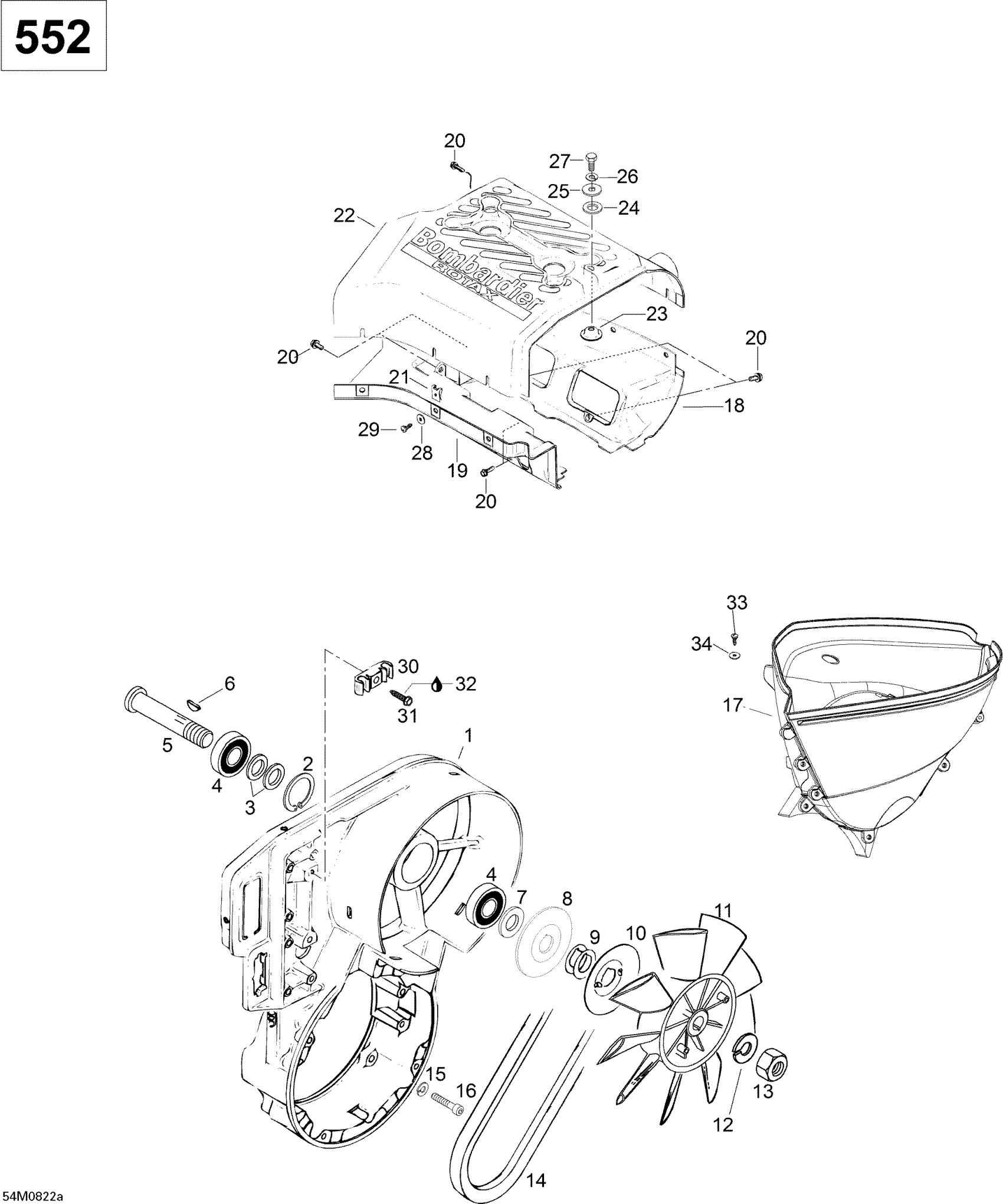

Ski-Doo Skandic SWT 550F, 2008 01- Fan SWT 550F Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

$476.49

2

Lock Ring

420945880

$4.44

3

Shim

420244585

$1.90

4

Ball Bearing

420832161

$35.99

5

Fan Axle This part replaces 420937940.

420937941

$14.28

6

Woodruff Key

420246015

$3.17

7

Spacer Bushing

420827650

$13.16

8

Flange

420980496

$14.28

9

Shim 0.5 mm

420827080

$2.11

9

Shim 0.2 mm

420827082

$3.17

10

Protection Washer

420980523

$13.16

11

Fan

420866294

$96.49

12

Lock Washer

420945756

$3.17

13

Nut M16 This part replaces 420942285.

420942289

$10.33

14

V-Belt

414630800

$24.99

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Torx Flange Screw M6 X 30

420440647

$2.00

17

COOLING CHANNEL ASS'Y - Call your local BRP dealership

605155173

Unavailable

18

Lower Cowling | 550 F.

420811392

$190.49

19

LOWER COWLING INTAKE SIDE - Call your local BRP dealership

420811835

Unavailable

20

Torx Screw M6 X 16

420640324

$2.11

21

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

22

CYLINDER COWL - Call your local BRP dealership

420811295

Unavailable

23

Cup Washer

420827817

$14.28

24

Rubber Washer

420960865

$2.11

25

Washer This part replaces 420227935.

420227936

$3.38

26

Washer-Lock Din.128

420945832

$1.15

27

Torx Flange Screw M8 X 16

420440852

$4.12

28

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

29

Tapping Screw M4.8 X 16

417300006

$0.72

30

CLAMP - Call your local BRP dealership

420860945

Unavailable

31

Hex. Tapping Screw M5 X 20

420841555

$1.69

32

Loctite 243, 10 ml

293800060

$21.49

33

Self Tapping Screw #8 X 5/8

250000202

$1.48

34

Washer | DS 650 X

391301600

$0.48
