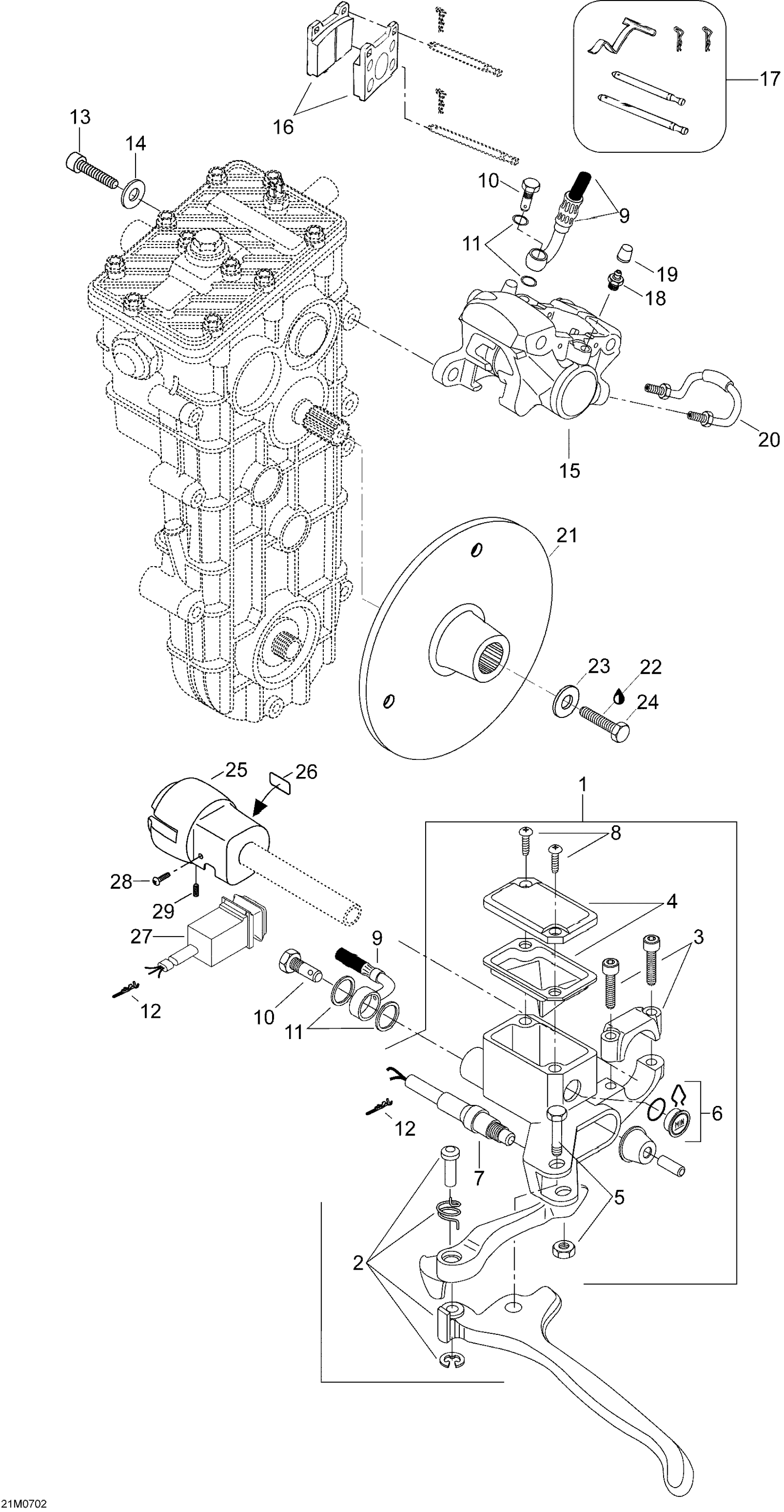

Ski-Doo Skandic SWT 550F, 2007 06- Brakes Diagram

#

Description
Price

1

Master Cylinder | Includes 1 to 8

605352693

Unavailable

2

LEVER - Call your local BRP dealership

415129216

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Pin Ass'y

415030000

$19.99

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Microswitch

507032366

$98.99

8

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

9

HOSE - Call your local BRP dealership

507032219

Unavailable

10

Banjo Bolt

414920500

$8.68

11

Washer

414920600

$1.90

12

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

13

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

Unavailable

14

Lock Washer D10

20068

$2.00

15

Caliper | Includes 15 to 20

507032412

Unavailable

16

Brake Pad Kit

415084600

$79.49

17

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

18

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

21

Brake Disc

605353250

$206.49

22

Loctite 243, 10 ml

293800060

$21.49

23

Washer

M546336

Unavailable

24

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

25

BRAKE HOUSING - Call your local BRP dealership

515175696

Unavailable

26

Switch Decal

415025500

Unavailable

27

LIGHT SWITCH - Call your local BRP dealership

515175814

Unavailable

28

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.12
