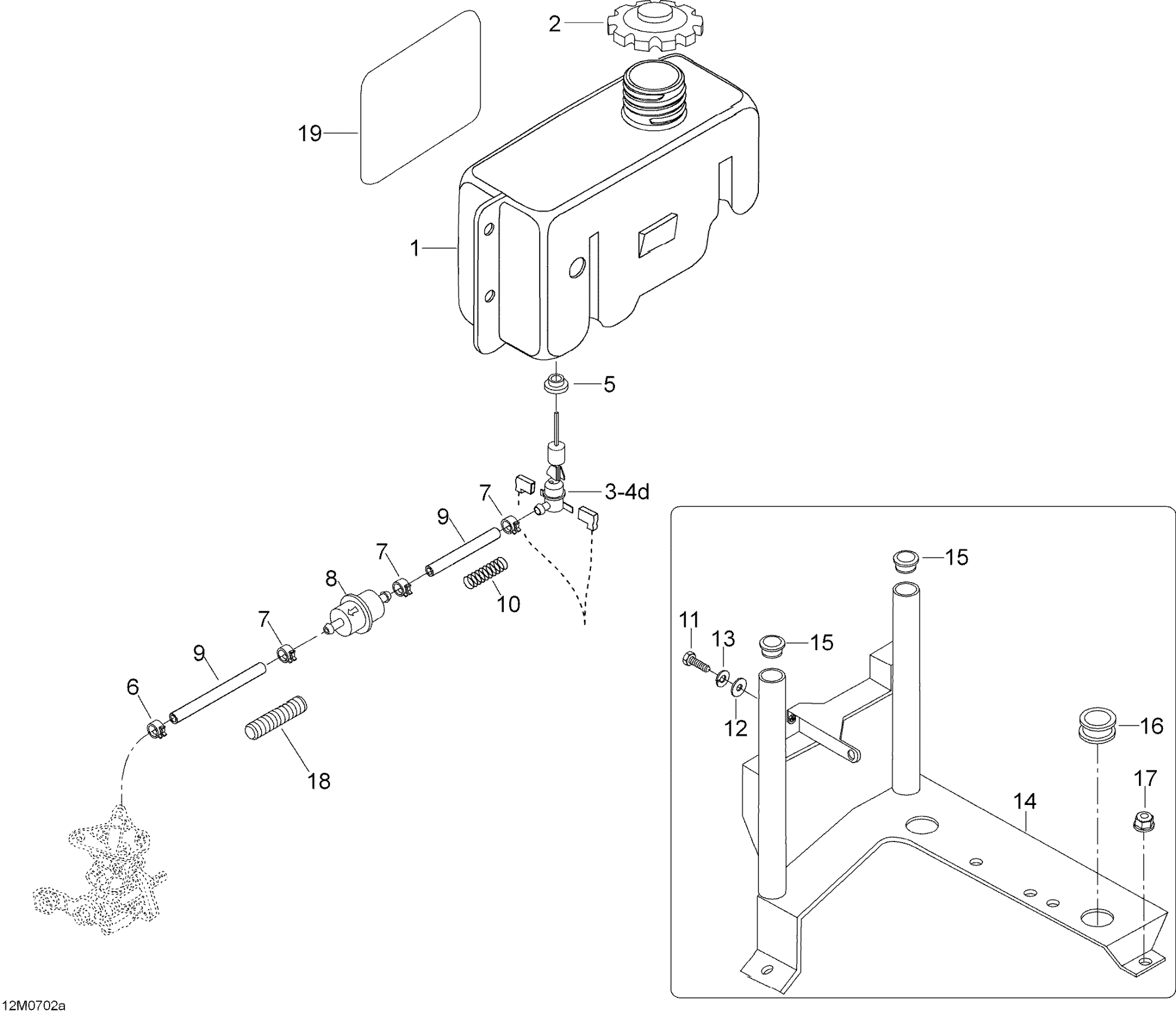

Ski-Doo Skandic SWT 550F, 2007 02- Oil System 550 Diagram

#

Description
Price

1

Oil Tank

M5142700

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

4a

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

4b

Female Housing, 2 Circuits

409209500

$15.27

4c

Female Terminal

278001014

$3.28

4d

Wire Seal

278001013

$3.28

5

Insulating Ring

570023000

$5.61

6

Spring Clamp

414420700

$0.72

7

Spring Clamp

414415200

$0.88

8

Filter

414536500

$4.02

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

SPRING - Call your local BRP dealership

M25005

Unavailable

11

Screw

M40322

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

Oil Tank Support | SUV 550

605350521

Unavailable

15

PLUG - Call your local BRP dealership

M28136

Unavailable

16

Grommet This part replaces M28022.

28022

$15.29

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

HOUSING - Call your local BRP dealership

M28015

Unavailable

19

Reflecting Sheet

M5443578

Unavailable
