- Skandic SWT 550F, 2005
07- Drive Axle, Track And Belt Guard 550F SWT

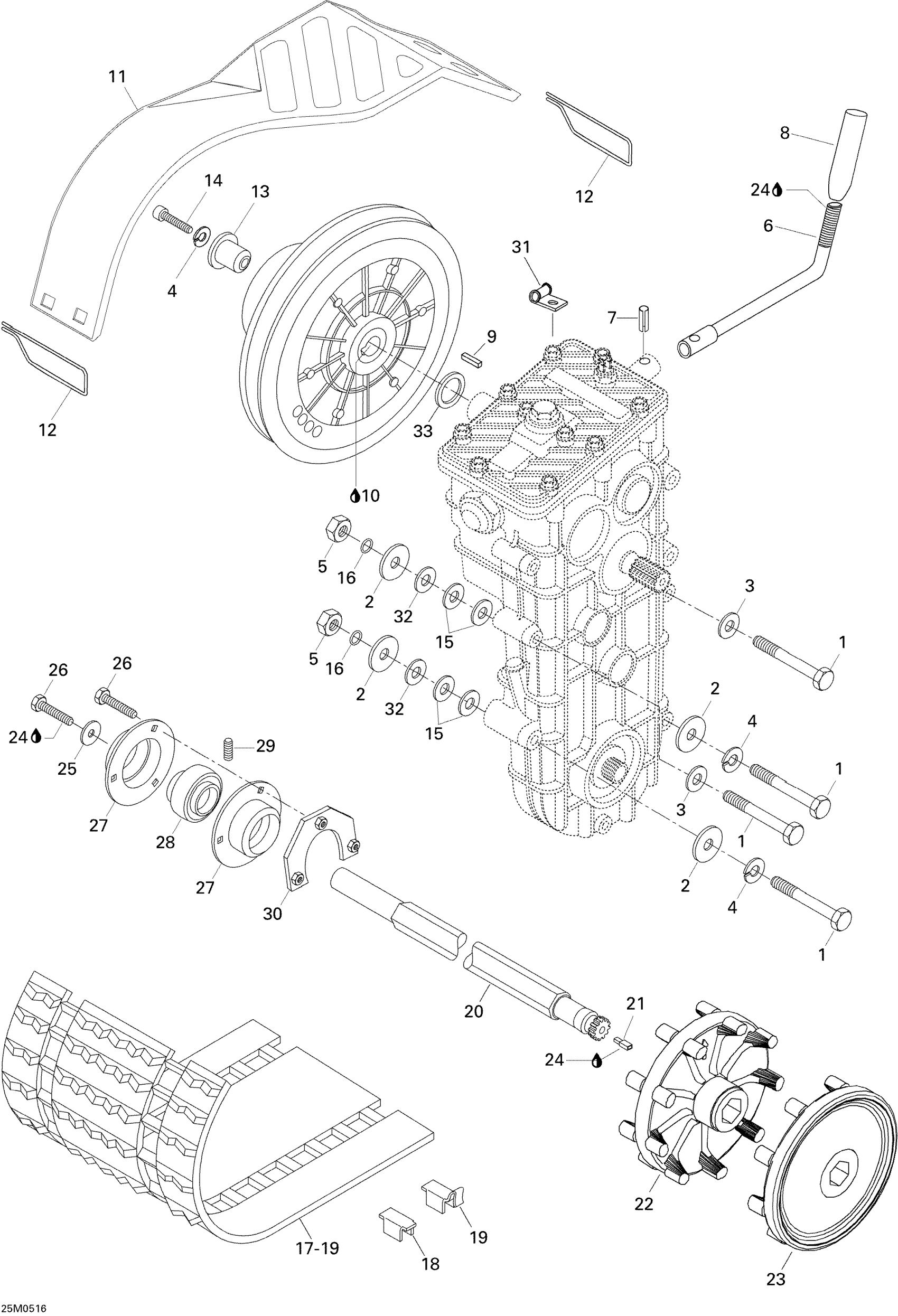

Ski-Doo Skandic SWT 550F, 2005 07- Drive Axle, Track And Belt Guard 550F SWT Diagram
#
Description
Price
1
Screw M8 X 80
M40012
Unavailable
6
Bras Vitesse *Arm-Shifter
M5340902
Unavailable
7
Pin Spring
M41008
Unavailable
9
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
10
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
11
BELT GUARD - Call your local BRP dealership
M5142660
Unavailable
13
Shaft Extension
M5443765
Unavailable
14
SOCKET HEAD SCREW M8 X 55 - Call your local BRP dealership
M40290
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
18
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
19
CLEAT - Call your local BRP dealership
M5318322
Unavailable
20
Drive Axle
M5344243
Unavailable
22
SPROCKET - Call your local BRP dealership
414931800
Unavailable
23
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
25
Washer
M546336
Unavailable
26
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
28
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
29
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Shim
M3125351
Unavailable
