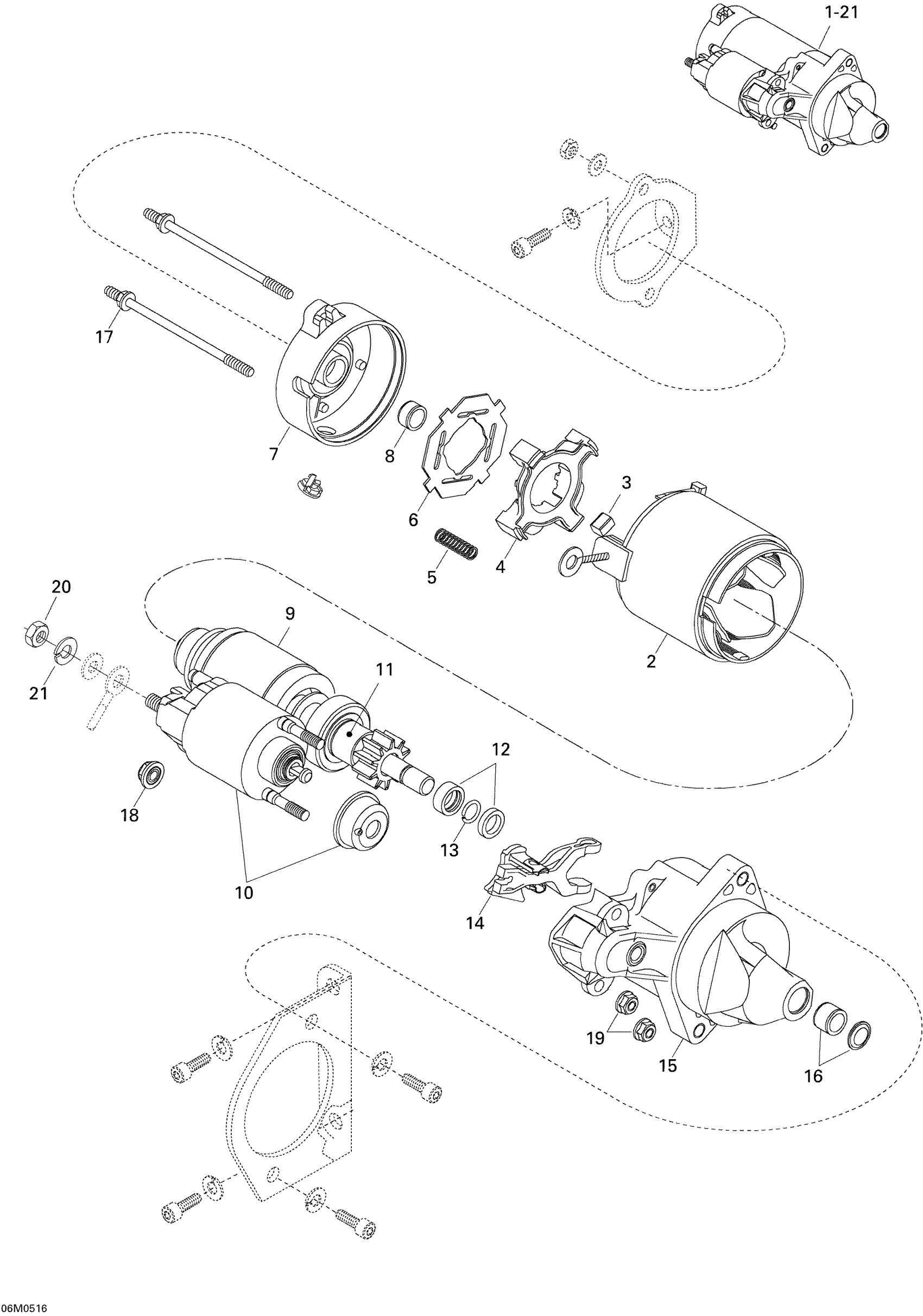

Ski-Doo Skandic SWT 550F, 2005 04- Electric Starter 550F Diagram
#
Description
Price
1
STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A
515175795
Unavailable
2
Starter Housing
410213106
Unavailable
3
BRUSH KIT - Call your local BRP dealership
410213107
Unavailable
4
BRUSH HOLDER - Call your local BRP dealership
410209700
Unavailable
5
BRUSH SPRING - Call your local BRP dealership
410209800
Unavailable
6
INSULATOR - Call your local BRP dealership
410209900
Unavailable
7
HOUSING - Call your local BRP dealership
410213108
Unavailable
8
BRASS BUSHING - Call your local BRP dealership
410210100
Unavailable
9
Armature Assy.
410210200
Unavailable
10
SWITCH ASSY. - Call your local BRP dealership
410210300
Unavailable
11
STARTER CLUTCH - Call your local BRP dealership
410210400
Unavailable
12
NUT - Call your local BRP dealership
410212500
Unavailable
13
CIRCLIP - Call your local BRP dealership
410212600
Unavailable
14
Lever
410213109
Unavailable
15
Housing
410213113
Unavailable
16
BRASS BUSHING - Call your local BRP dealership
410210900
Unavailable
17
BOLT - Call your local BRP dealership
410212000
Unavailable
18
NUT - Call your local BRP dealership
410211100
Unavailable
19
NUT - Call your local BRP dealership
410211200
Unavailable
