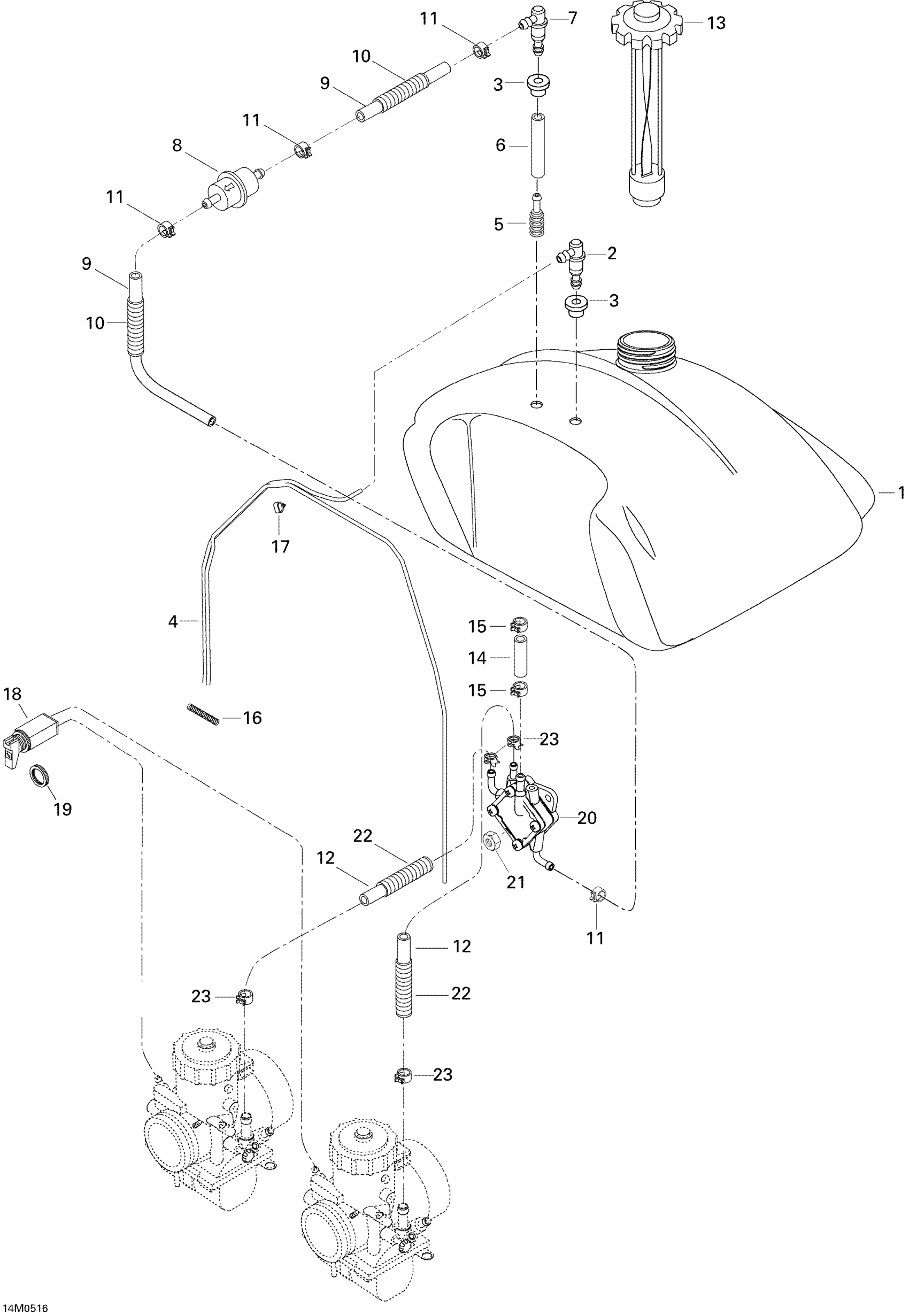

Ski-Doo Skandic SWT 550F, 2005 02- Fuel System 550F Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Male Connector This part replaces M533535.

533535

$19.49

3

Grommet

280000674

$4.69

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

6

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

7

CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.

5341709

$13.49

8

Fuel Filter This part replaces 414363600.

605352516

$18.49

9

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

10

HOUSING - Call your local BRP dealership

M28012

Unavailable

11

Spring Clamp

M27086

Unavailable

12

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

13

Cap Fuel Tank

605349994

$65.99

14

Polyurethane Hose 10000Mm Long

219704410

$56.99

15

Spring Clamp

414420700

$0.72

16

SPRING - Call your local BRP dealership

M25003

Unavailable

17

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

18

Choke This part replaces M535482.

535482

$73.99

19

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

20

FUEL PUMP - Call your local BRP dealership | SUV 550

403800600

Unavailable

21

Elastic Stop Nut M6

232561414

$0.55

22

HOUSING - Call your local BRP dealership

M28012

Unavailable

23

Spring Clamp

M27086

Unavailable
