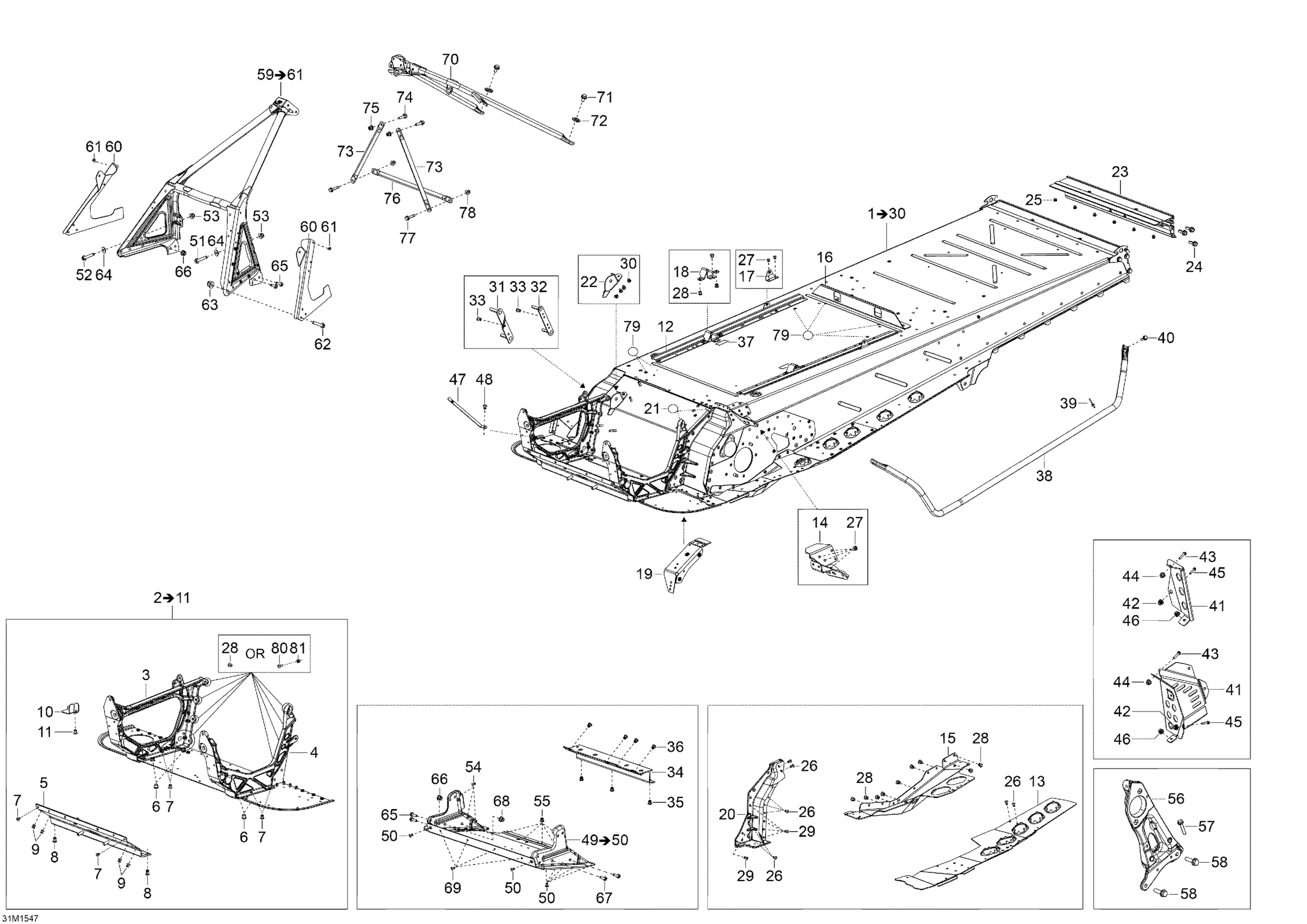

Ski-Doo Skandic SWT 550, 2015 Frame _31M1547 Diagram

#

Description
Price

1

FRAME 69 FC SC-5 - Call your local BRP dealership | Includes 1 To 30

518328210

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

$259.97

4

LH Member

518325558

$230.74

5

Front Member | Includes 10as to 10at

518325818

$54.58

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Muffler Support

518328433

$16.89

11

Rivet Hucklok

293150163

$2.82

12

Fastening rail

518326107

$15.35

13

LH FOOTREST - Call your local BRP dealership

518328440

Unavailable

13

RH Footrest

518328441

Unavailable

14

Fastening Bracket

518327884

$25.35

15

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

TUNNEL SUPPORT - Call your local BRP dealership

518327003

Unavailable

17

Seat Box Bracket

518327457

$29.97

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

CLINCH NUT PLATE - Call your local BRP dealership

518328096

Unavailable

20

LH Frame Corner

518325643

$52.28

20

RH Frame Corner

518325644

$52.28

21

Adhesive Patch

518325560

$4.34

22

RH Support

518326520

$12.80

23

Rear Profile

518328749

$217.66

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

25

Hemlock Rivet, 6.4 mm

293150174

$6.43

26

Avex Rivet

390909100

$0.29

27

Avex Rivet

390909200

$0.29

28

Hemlock Rivet, 6.5 mm

293150119

$4.00

29

Rivet

293150183

$2.06

30

Hemlock Rivet, 6.5 mm

293150096

$3.17

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$15.26

33

Pop Rivet 3/16"

390402200

$0.26

34

Engine Support

518326719

$44.99

35

Rivet Hucklok

293150163

$2.82

36

Avex Rivet

390909200

$0.29

37

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

38

LH Footboard Support Tube

518327595

$81.51

38

RH Footboard Support Tube

518327596

$81.51

39

Avex Rivet

390909100

$0.29

40

Hex. Flange Screw M6 x 20

207662056

$0.98

41

TOE HOOK LH BLACK 69 LTS - Call your local BRP dealership This part replaces 518328567.

518328568

Unavailable

41

RH Toe Hold

518328570

Unavailable

42

Clinch Nut M6 Hexsert

605636003

$4.12

43

Hex. Flange Screw M6 x 20

207662056

$0.98

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

45

Torx Screw M6 X 16

250000223

$1.74

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

47

Spring Bracket

514054846

$4.34

48

Avex Rivet

390909200

$0.29

49

S Module | Includes 300 to 300a

518326213

$776.12

50

Avex Rivet

390909200

$0.29

51

Hex. Flange Screw M6 X 25

207662544

$0.53

52

Hex. Flange Screw M6 X 25

207662544

$0.53

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

54

Avex Rivet

390909100

$0.29

55

Avex Rivet

390909200

$0.29

56

Pulley Support

518328434

$130.74

57

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

58

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

59

Front Member Ass'y | Includes 700 to 700d

518327004

$499.97

60

LH Bumper Fastener

502007077

$53.05

60

RH Bumper Fastener

502007078

$53.05

61

Avex Rivet

390909200

$0.29

62

Hex. Flange Screw M6 X 20

207662044

$1.66

63

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

64

Flat Washer

224061201

$1.11

65

Hex. Flange Screw M6 X 20

207662044

$1.66

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

67

Hex. Flange Screw M6 X 20

207662044

$1.66

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

69

Avex Rivet

390909200

$0.29

70

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

71

Hex. Flange Screw M6 x 20

207662056

$0.98

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Upper Lateral Column Support

518325114

$20.74

74

Hex. Flange Screw M6 x 20

207662056

$0.98

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

76

Center Column Support

518325115

$20.74

77

Hex. Flange Screw M6 X 25

207662556

$3.61

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

79

Adhesive Patch

518325560

$4.34

80

Hex. Flange Screw M6 X 20

207662044

$1.66

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
