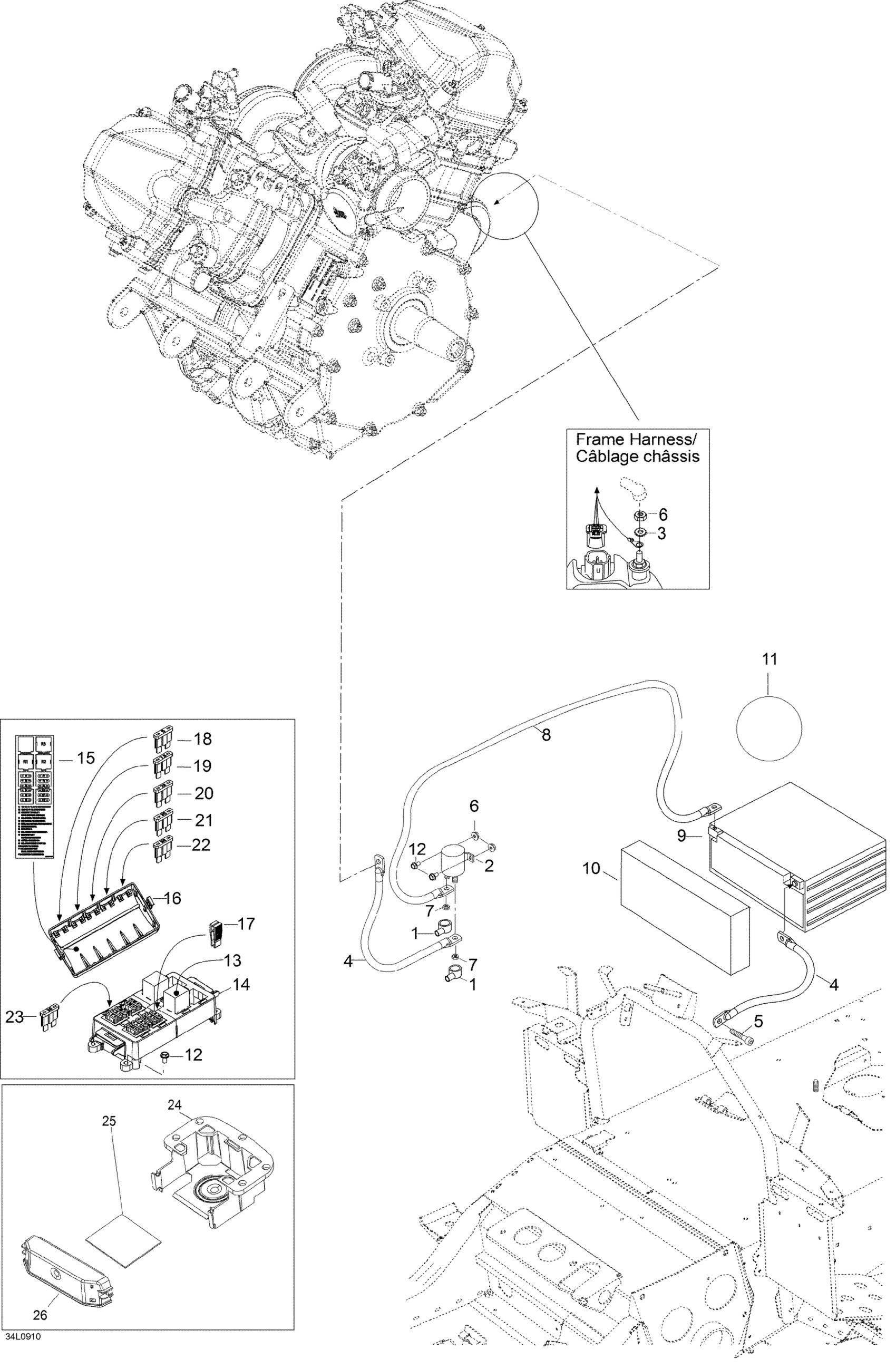

Ski-Doo Skandic SWT, 2009 10- Battery And Starter Diagram

#

Description
Price

1

Protection Cap

570151000

$21.99

2

Starter Relay

515176011

$62.49

3

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

4

GROUND WIRE - Call your local BRP dealership

605455189

Unavailable

5

Socket Head Screw M6 X 20

M40052

Unavailable

6

Elastic Stop Nut M6

232561414

$0.55

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

BATTERY WIRE - Call your local BRP dealership

605355251

Unavailable

9

Battery, 12 Volts, 21 Amperes

410922962

$194.99

10

COVER - Call your local BRP dealership

605352572

Unavailable

11

O'RING 130 X6,0 - Call your local BRP dealership

605676001

Unavailable

12

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

13

Relais *Relay This part replaces 410113604.

515177672

$46.49

14

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

15

FUSE DECAL - Call your local BRP dealership

605454618

Unavailable

16

COVER - Call your local BRP dealership

515176066

Unavailable

17

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

18

Fuse 1 A

M42044

Unavailable

19

Fuse, 5 Amperes | CE

278000344

$3.28

20

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

21

Fuse, 20 Amperes

409003900

$3.28

22

Fuse, 30 Amperes

410917200

$3.28

23

Little Fuse, 15 Ampere

710000745

$8.49

24

Battery Holder - Call your local BRP dealership

605255588

Unavailable

25

FOAM - Call your local BRP dealership

605355846

Unavailable

26

BATTERY COVER - Call your local BRP dealership

605255586

Unavailable
