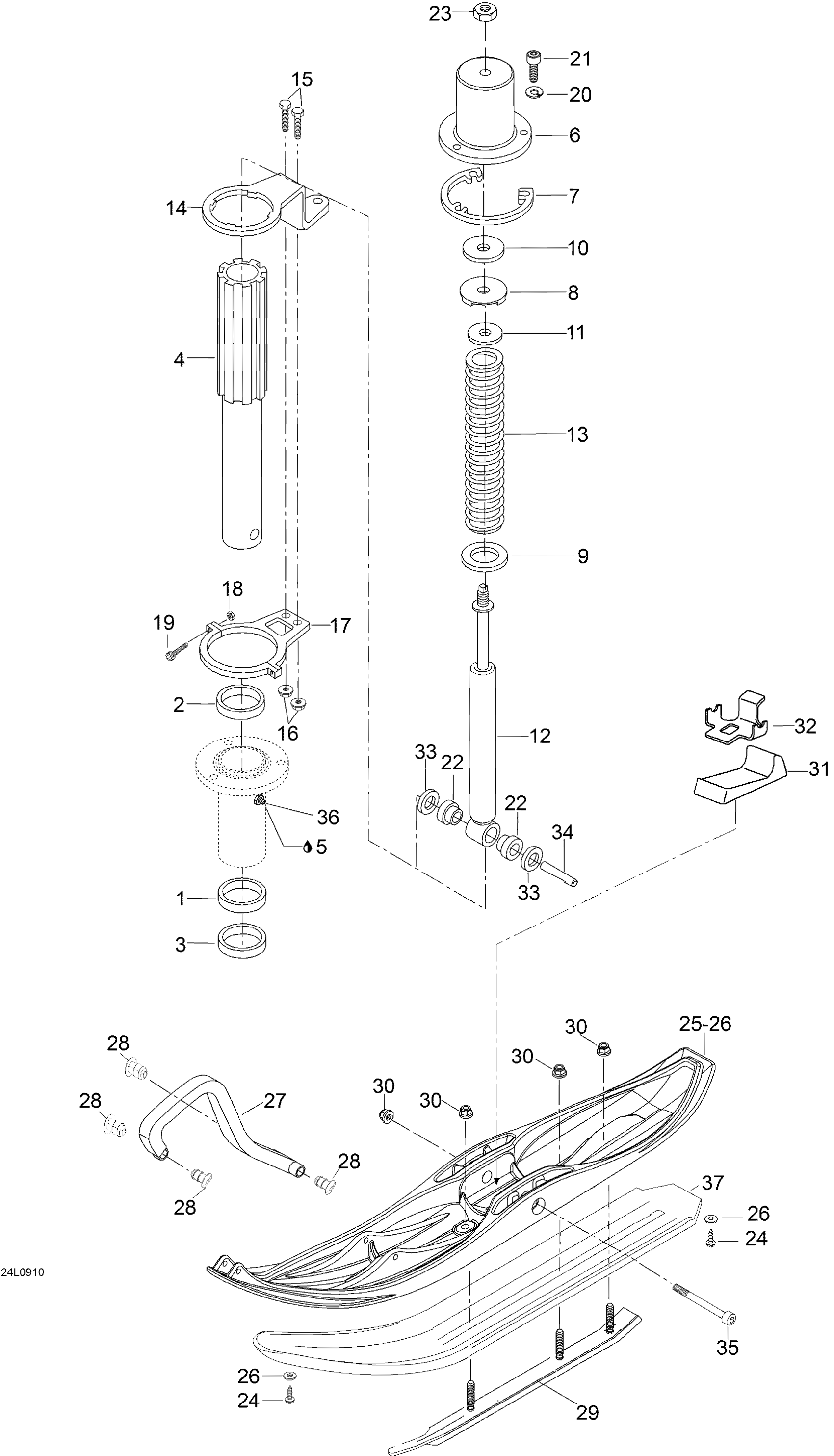

Ski-Doo Skandic SWT, 2009 07- Front Suspension And Ski Diagram

#

Description
Price

1

Lower Cushion

414803200

$14.68

2

Upper Cushion

414803100

$10.49

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

$28.99

4

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

PAINTED COVER - Call your local BRP dealership

605249284

Unavailable

7

SPACER - Call your local BRP dealership

503145600

Unavailable

8

Rubber Bumber

605354835

$16.49

9

Washer This part replaces M549493.

549493

$15.28

10

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

11

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

12

Front Gaz Shock

M23134

Unavailable

13

SPRING, BLACK - Call your local BRP dealership

605625001

Unavailable

14

RH STEERING ARM - Call your local BRP dealership

605353422

$184.99

14

LH STEERING ARM - Call your local BRP dealership

605353423

Unavailable

15

Hex. Screw M6 X 25

207162544

$1.15

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Support Ass'Y This part replaces M5344180.

619380015

$45.99

18

Elastic Stop Nut M4

232541414

$0.58

19

Screw

M40146

Unavailable

20

Lock Washer 8 mm

234181401

$0.92

21

Socket Head Screw M8 X 20

205082044

$1.15

22

Cushion

572034500

$12.58

23

Elastic Locking Nut M10 X 1.5

233601416

$1.69

24

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

25

Ski | Europe models

505073034

$238.49

26

Bushing | Europe models

605348392

$52.99

27

Black, Handle

505070963

$35.99

28

Retainer 17mm long

505071812

$5.95

29

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

30

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

31

Rubber Stopper

605348439

$39.99

32

PLATE SUPPORT - Call your local BRP dealership

605348437

$20.99

33

Bushing

605448594

$12.58

34

Ski Axle

505073209

$16.49

35

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$14.22

36

Grease Fitting

M34019

Unavailable

37

Ski Liner

605153964

$106.49
