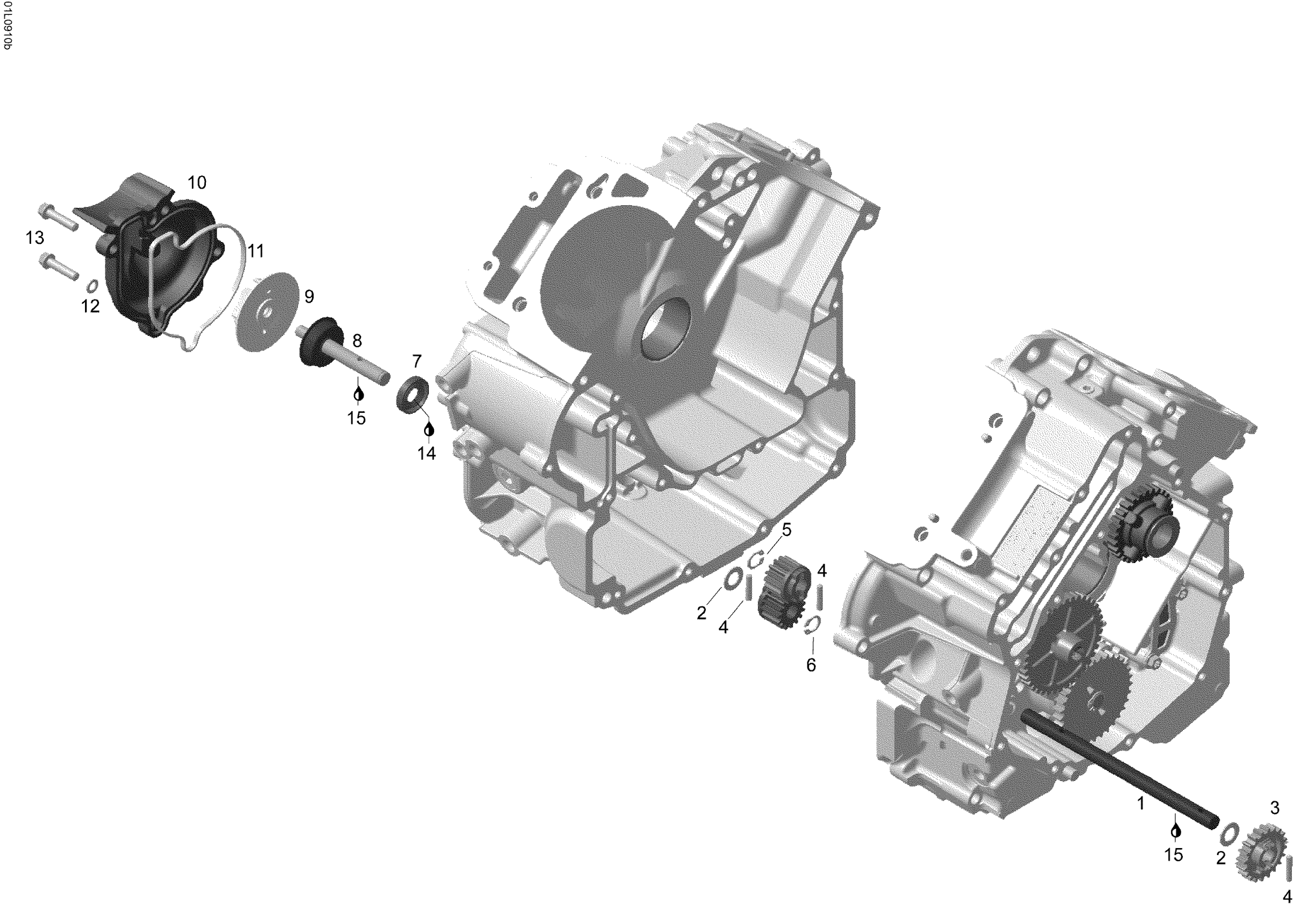

Ski-Doo Skandic SWT, 2009 Waterpump, Alternator and Ignition Cover Diagram

#

Description

Price

1

Intermediate Shaft

420620500

$36.99

2

Thrust Washer

420827590

$4.01

3

Water Pump Gear

420434330

$11.63

4

Needle Pin

420232420

$4.01

5

Pump Gear, 15 Teeth

420234627

$11.63

6

Snap Ring

420245330

$1.79

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

$72.99

9

Water Impeller

420222505

$19.99

10

WATER PUMP HOUSING - Call your local BRP dealership

420222780

Unavailable

11

Gasket

420651190

$8.57

12

Seal Washer

420230415

$1.79

13

Torx Flange Screw M6 X 25

420641238

$3.27

14

Grease, Super Lube

293550030

$28.99

15

Synth Oil 4T 12x1

293600054

Unavailable
