Description

Price

1

CRANKSHAFT ASS'Y - Call your local BRP dealership

420819355

Unavailable

2

Woodruff Key 4 X 5

420246570

$3.38

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

4

Connecting Rod Screw M8 X 1

420641645

$14.28

5

Plain Bearing 40 X 43 X 15

420233980

$28.49

6

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$159.49

6

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

7

Piston Ring Set | 400HO

420296774

$78.99

7

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

8

Piston Pin

420216270

$25.99

9

Piston Circlip

420845106

$3.93

10

Gasket

420630210

$12.71

11

Cylinder Ass'y | 400HO / Includes 12 to 13

420613586

Unavailable

12

Drive Pin 5 X 10

420929650

$1.68

13

GASKET SET - Call your local BRP dealership

420684133

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

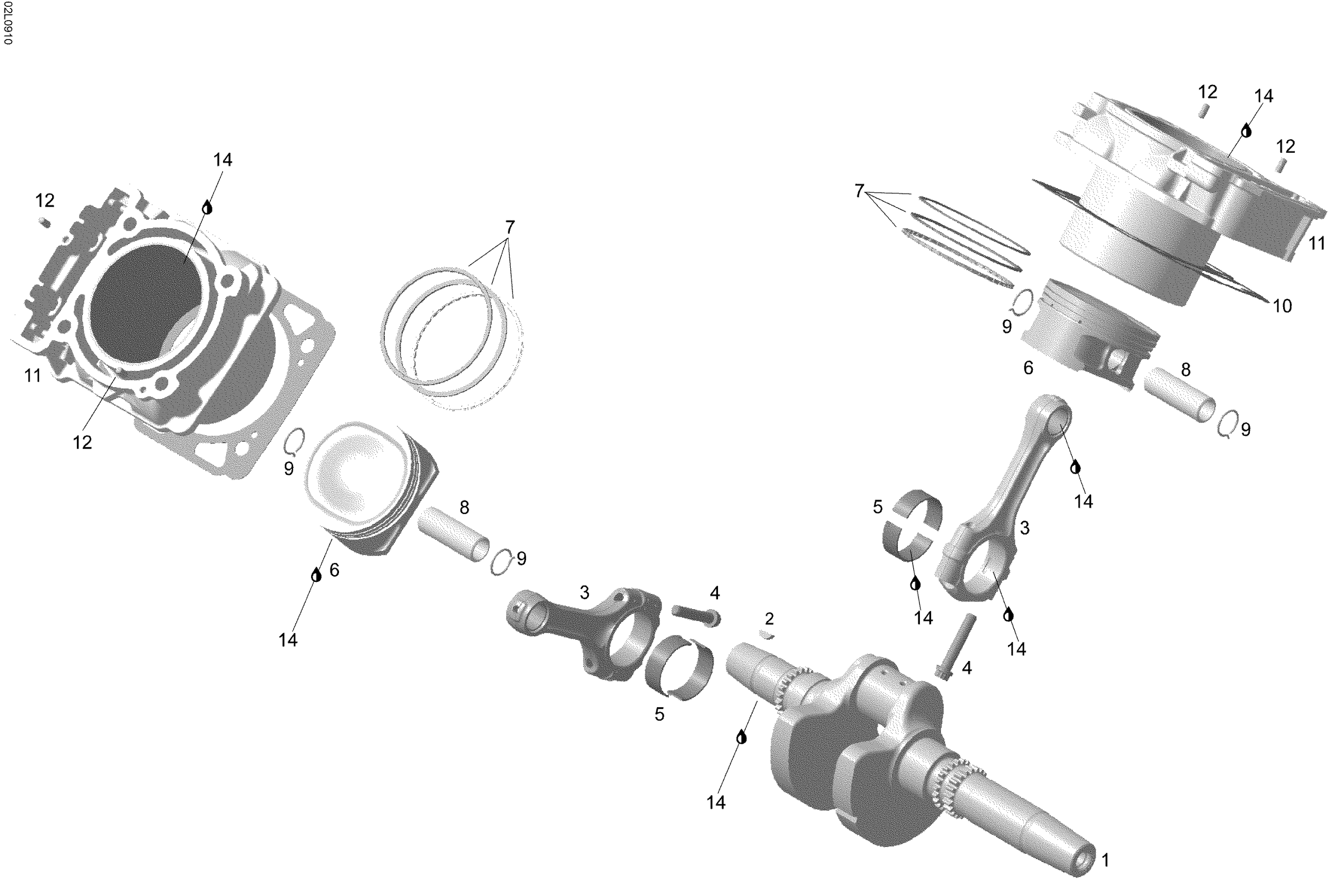

Ski-Doo Skandic SWT, 2009 01- Crankshaft And Pistons Diagram

CRANKSHAFT ASS'Y - Call your local BRP dealership

Woodruff Key 4 X 5

Connecting Rod Ass’y | Includes 3 to 4

Connecting Rod Screw M8 X 1

Plain Bearing 40 X 43 X 15

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

Piston Ring Set | 400HO

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

Piston Pin

Piston Circlip

Gasket

Cylinder Ass'y | 400HO / Includes 12 to 13

Drive Pin 5 X 10

GASKET SET - Call your local BRP dealership

Not Available As Spare Part - Friction Washer
