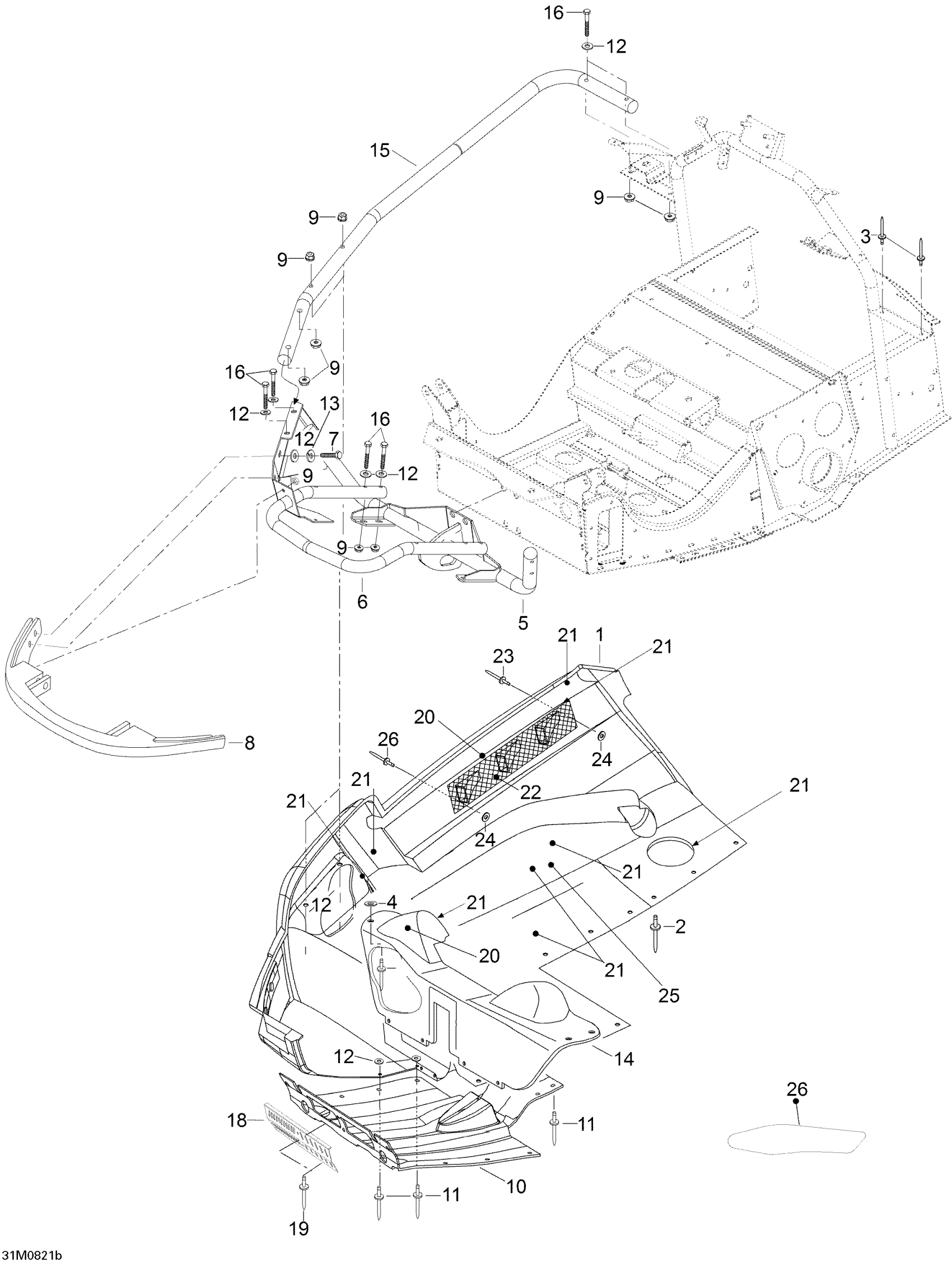

Ski-Doo Skandic SUV 600HO SDI, 2008 Bottom Pan 600HO SDI Diagram

#

Description
Price

1

Bottom Pan Ass'y, RH

605155339

Unavailable

1

BOTTOM PAN ASS'Y, LH - Call your local BRP dealership

605155679

Unavailable

2

Black Rivet

36037

$1.43

3

Rivet

36108

$1.79

4

Washer 5,3 mm

20008

$0.70

5

WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership

605255398

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.70

8

Bumper, Black

502006719

$95.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Central Front Pottom Pan

605154930

Unavailable

11

RIVET - Call your local BRP dealership

M36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.73

13

Lock Washer M6, Black

234161471

$0.51

14

Bottom Cover Shock

605355607

Unavailable

15

SIDE BUMPER - Call your local BRP dealership

605255395

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.43

18

FRONT GRILL - Call your local BRP dealership

605255513

Unavailable

19

Rivet

M36071

Unavailable

20

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

21

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable

22

RH SIDE GRILL - Call your local BRP dealership

605354968

Unavailable

22

LH SIDE GRILL - Call your local BRP dealership

605354969

Unavailable

23

Rivet This part replaces M36009.

36009

$1.03

24

Washer 5,3 mm

20008

$0.70

25

Isolation Sheet 450x100

605354904

Unavailable

26

Bottom Isolation LH

605355681

Unavailable
