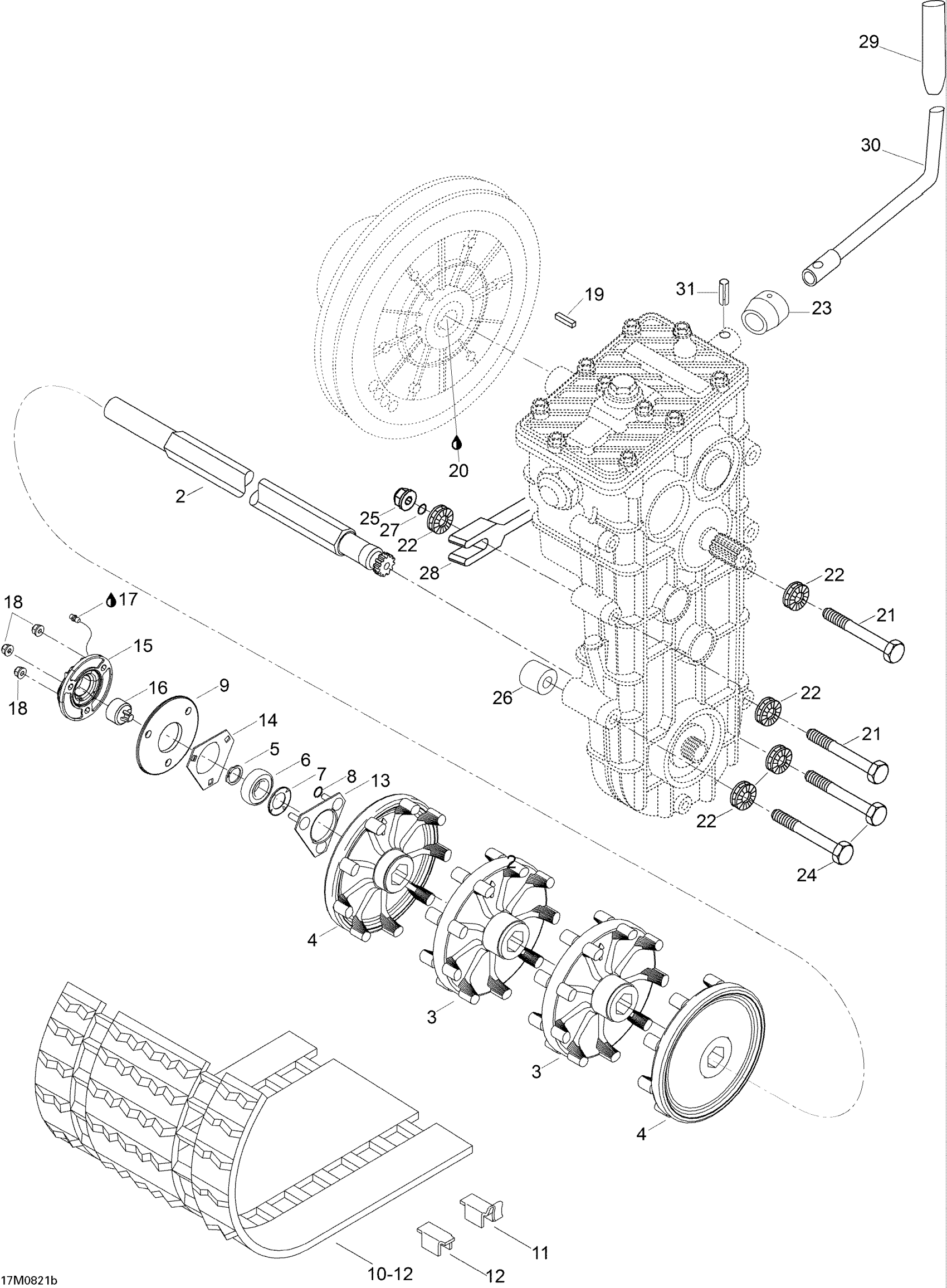

Ski-Doo Skandic SUV 600HO SDI, 2008 05- Drive System 600HO SDI Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
DRIVE AXLE - Call your local BRP dealership
605249455
Unavailable
3
SPROCKET - Call your local BRP dealership
414931800
Unavailable
4
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
Washer
M5446641
Unavailable
11
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
12
CLEAT - Call your local BRP dealership
M5318322
Unavailable
13
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
14
FLANGE - Call your local BRP dealership
501025000
Unavailable
16
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
17
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
19
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
21
Hex. Screw M8 X 110
M40291
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
SLEEVE - Call your local BRP dealership
M5446699
Unavailable
24
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
26
SLEEVE - Call your local BRP dealership
605452406
Unavailable
27
O-RING - Call your local BRP dealership
506151140
Unavailable
28
SUPPORT SHAFT - Call your local BRP dealership
605352407
Unavailable
30
SHIFT HANDLE - Call your local BRP dealership
605350153
Unavailable
31
Pin Spring
M41008
Unavailable
