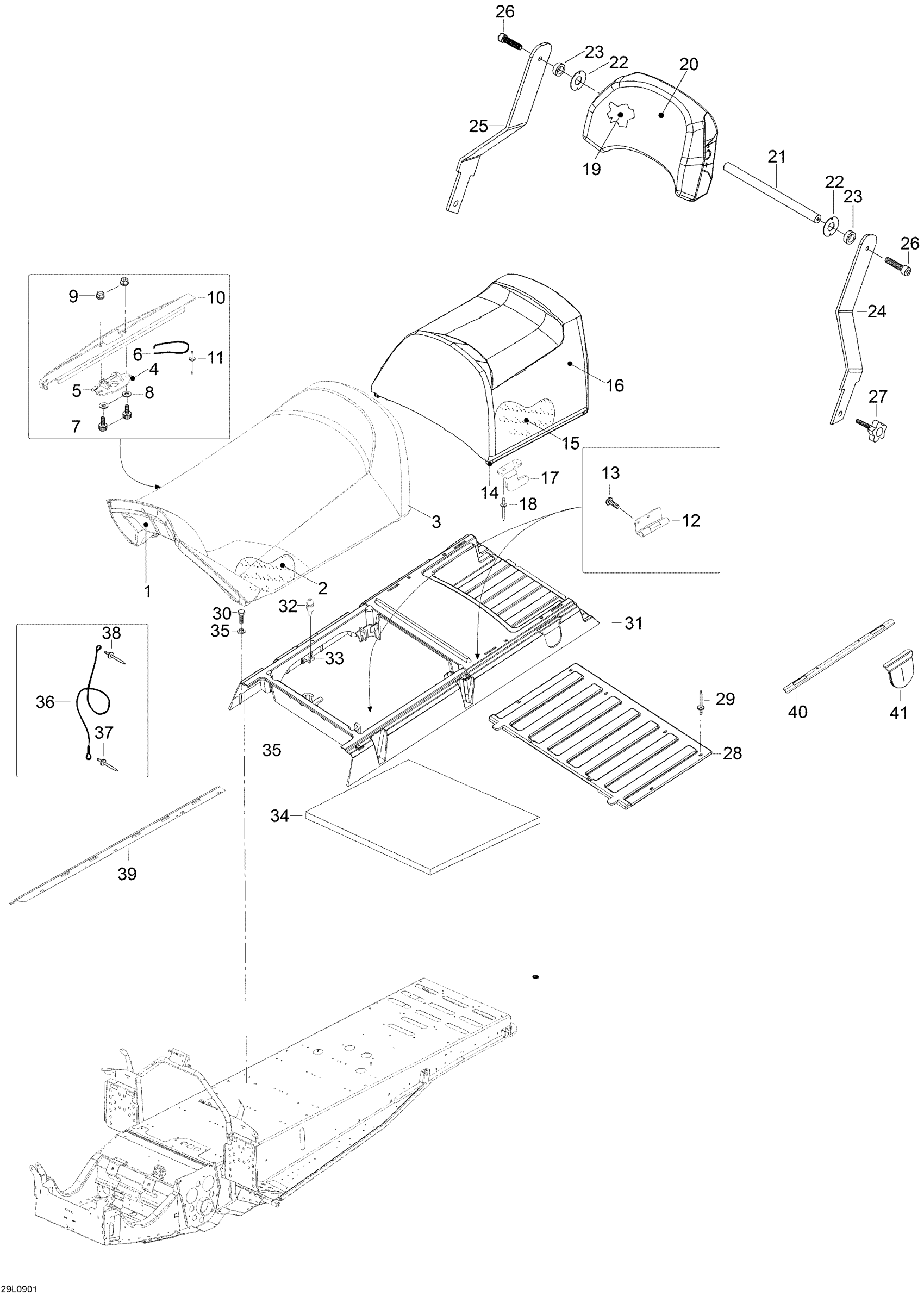

Ski-Doo Skandic SUV 600 Europe, 2009 09- Seat _29L0901 Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Seat Foam

605255689

$449.99

3

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

Socket head screw M6 x 25

40276

Unavailable

8

Washer A6,4

20003

Unavailable

9

Elastic Stop Nut M6

232561434

$1.99

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Rivet Avibulb 4.8x8.8 Zn(1=25pcs) - Call your local BRP dealership

36088

Unavailable

12

Hinge

605351798

$42.99

13

Wronic-screw 4,2 x 16

40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

REAR SEAT FOAM - Call your local BRP dealership

605255691

Unavailable

16

SEAT COVER, SUV - Call your local BRP dealership

605255218

$234.99

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$1.04

19

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

20

BACKREST COVER - Call your local BRP dealership

605355498

Unavailable

21

BACKREST AXLE - Call your local BRP dealership

605355357

$63.99

22

WASHER - Call your local BRP dealership

605355358

Unavailable

23

Rubber Shim

510004378

$10.99

24

LH ARM - Call your local BRP dealership

605355499

Unavailable

25

RH ARM - Call your local BRP dealership

605355500

Unavailable

26

SCREW M10X20 - Call your local BRP dealership

605640010

Unavailable

27

Handle M8 X 35 | Model-T3

510003533

$44.49

28

FRAME COVER - Call your local BRP dealership

605255587

Unavailable

29

Rivet

36036

Unavailable

30

Hex. screw M6 x 16

605640022

Unavailable

31

SEAT BASE - Call your local BRP dealership

605155585

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

$24.99

33

Not Available As Spare Part - Friction Washer

Unavailable

34

FOAM - Call your local BRP dealership

605355635

Unavailable

35

Spring Washer

20052

Unavailable

36

Seat Retainer Cable

293750070

$12.99

37

Black Rivet

36037

$1.48

38

Rivet This part replaces M36009.

36009

$1.15

39

RH SEAT BRACKET - Call your local BRP dealership

605255762

Unavailable

40

REAR SEAT SUPPORT - Call your local BRP dealership

605355816

Unavailable

41

CAP - Call your local BRP dealership

605355589

Unavailable
