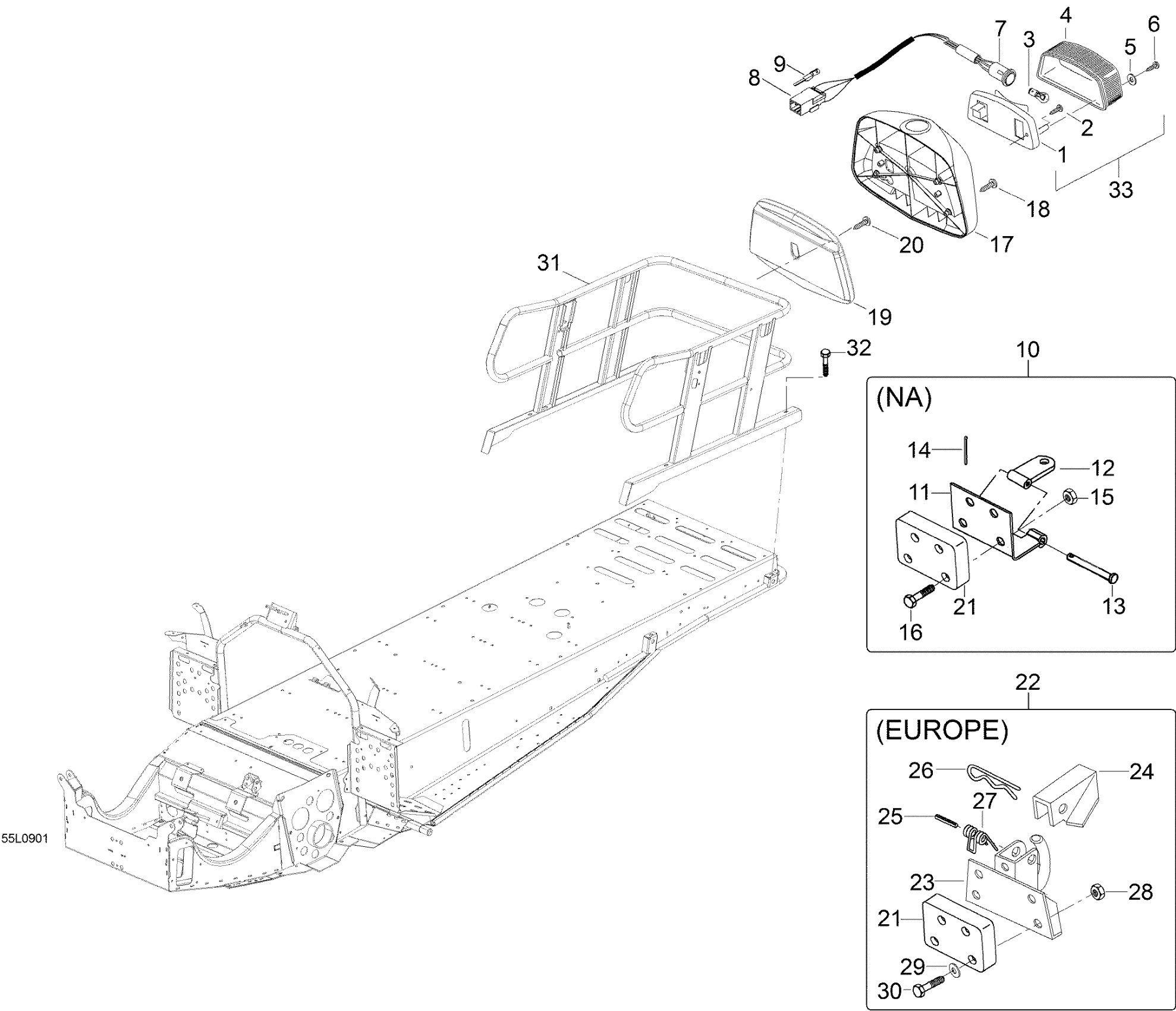

Ski-Doo Skandic SUV 600 Europe, 2009 09- Luggage Rack _55L0901 Diagram
#
Description
Price
1
LAMP HOUSING - Call your local BRP dealership
515175397
Unavailable
2
Plate Screw Zn 4.8x45 DIN 7981(1=10pcs) - Call your local BRP dealership
40207
Unavailable
5
Washer - Call your local BRP dealership
414516400
Unavailable
7
Adapter
515175852
Unavailable
8
Connector housing
42606
Unavailable
9
Connector AMP 926882-3 - Call your local BRP dealership
605642629
Unavailable
12
TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.
548745
$42.99
13
PIN-RETAINER - Call your local BRP dealership | North America
560309200
Unavailable
16
Hex. screw M8 x 50
40009
Unavailable
17
MOLD TAIL LAMP - Call your local BRP dealership
605251392
Unavailable
18
Plate Screw Zn 4.8x25 DIN 7981(1=10pcs) - Call your local BRP dealership
40206
Unavailable
19
BASE - Call your local BRP dealership
605251963
Unavailable
20
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership
40322
Unavailable
21
SPACER - Call your local BRP dealership
605351510
Unavailable
24
Lock | EU
5440767
Unavailable
27
SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.
545693
Unavailable
30
Hex. screw M8 x 50
40009
Unavailable
31
LUGGAGE RACK - Call your local BRP dealership
605156016
Unavailable
32
Hex Sc. M8 x 20 BN73 m(1=10pcs) - Call your local BRP dealership
40316
Unavailable
33
Tail lamp Ass'y | Includes 1 to 6
605352543
Unavailable
