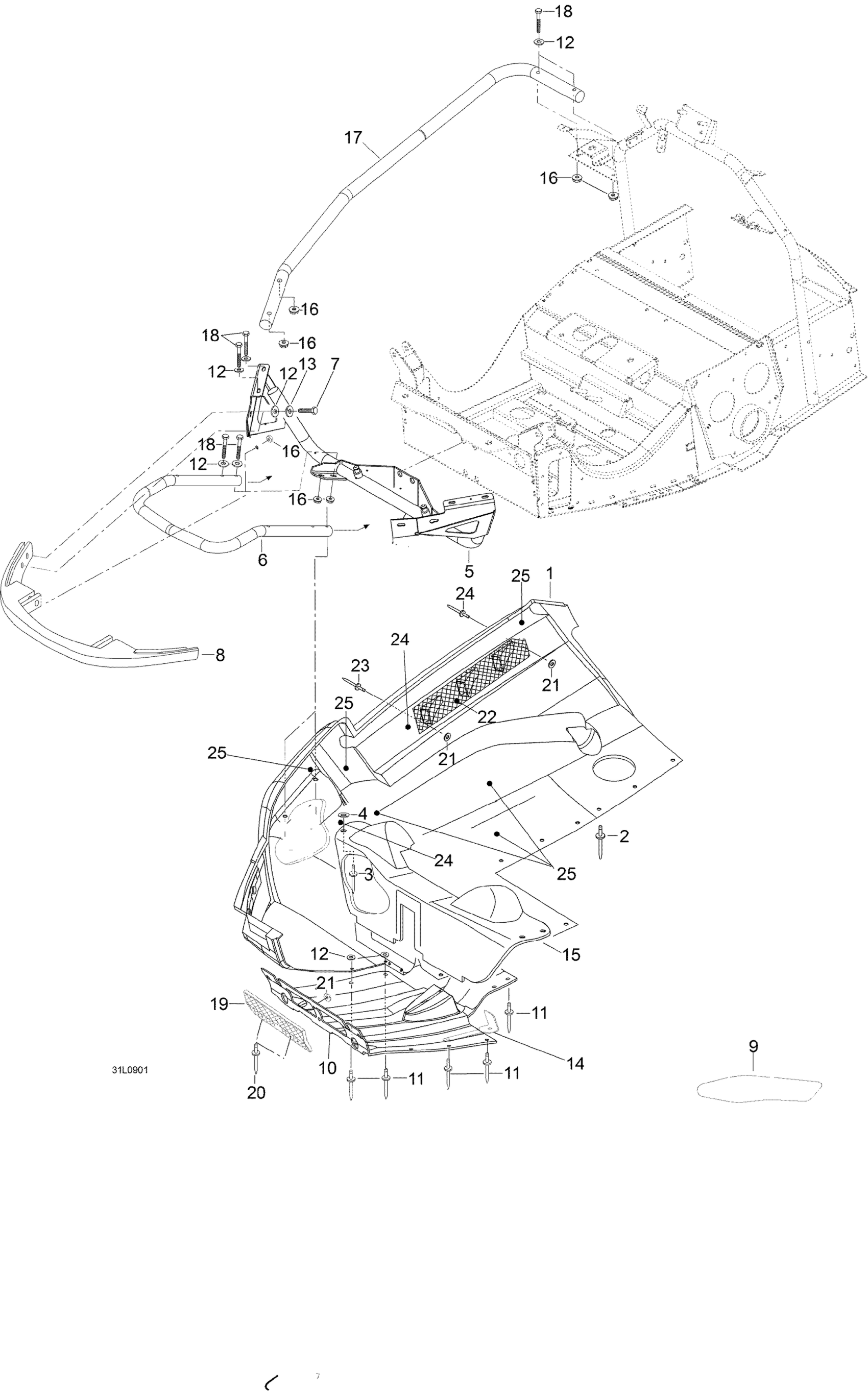

Ski-Doo Skandic SUV 600 Europe, 2009 09- Bottom Pan _31L0901 Diagram

#

Description
Price

1

Bottom Pan Ass'y

605355655

Unavailable

1

BOTTOM PAN ASS'Y, LH - Call your local BRP dealership

605155679

Unavailable

2

Black Rivet

36037

$1.48

3

Rivet

36108

$1.90

4

Washer 5,3 mm

20008

$0.74

5

WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership

605255398

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

7

Hex. screw M6 x 16

40029

Unavailable

8

Bumper, Black

502006719

$101.49

9

Bottom Isolation LH

605355681

Unavailable

10

Central Front Pottom Pan

605154930

Unavailable

11

Rivet

36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Spring Washer

20052

Unavailable

14

BOTTOM PAN RIVETING PLATE - Call your local BRP dealership

605355617

Unavailable

15

SHOCK COVER - Call your local BRP dealership

605355606

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

SIDE BUMPER - Call your local BRP dealership

605255395

Unavailable

18

Hex. screw M6 x 40

40002

Unavailable

19

FRONT GRILL - Call your local BRP dealership

605255513

Unavailable

20

Rivet

36071

Unavailable

21

Washer 5,3 mm

20008

$0.74

22

RH SIDE GRILL - Call your local BRP dealership

605354968

Unavailable

22

LH SIDE GRILL - Call your local BRP dealership

605354969

Unavailable

23

Rivet This part replaces M36009.

36009

$1.15

24

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

25

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable
