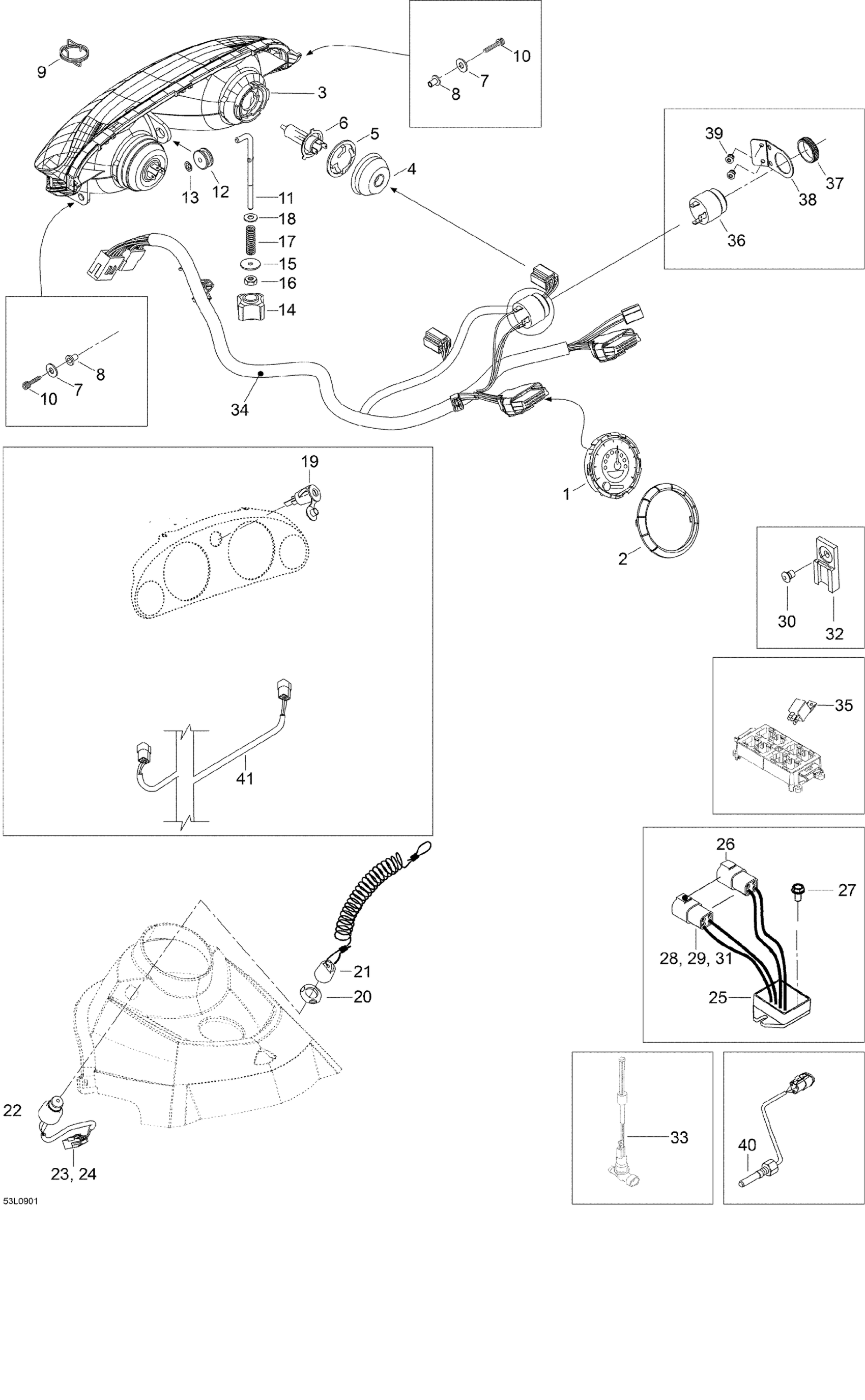

Ski-Doo Skandic SUV 600 Europe, 2009 06- Electrical Accessories _53L0901 Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

4

COVER - Call your local BRP dealership

515175911

Unavailable

5

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

6

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

7

Washer 5,3 mm

20008

$0.74

8

NUT M5 - Call your local BRP dealership

250100018

$6.99

9

Spring

5447238

Unavailable

10

Hex. screw M5 x 35

40235

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

Push Nut

732610072

$2.19

14

Handle - Call your local BRP dealership

515175548

Unavailable

15

Washer 6mm

20038

Unavailable

16

Elastic Stop Nut M6

232561434

$1.99

17

SPRING - Call your local BRP dealership

415100600

Unavailable

18

Washer A6,4

20003

Unavailable

19

Power outlet kit (Revo)

605352915

Unavailable

20

Safety Nut (DESS Switch)

278002963

$3.28

21

DESS

515178284

$84.99

22

DESS Switch

515177249

$114.99

23

Male Terminal

515175232

$1.58

24

Male Housing, 3 Circuits

515175494

$16.18

25

Voltage Regulator

515175968

$238.49

26

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

27

Hex. screw M6 x 20

40377

Unavailable

28

Male Terminal

515175568

$9.12

29

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

30

Rivet

36005

$2.11

31

Sealing Cap

293000052

$3.19

32

Clip

270000141

$11.49

33

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

34

MAIN HARNESS - Call your local BRP dealership

605354749

Unavailable

35

Relais *Relay This part replaces 410113604.

515177672

$46.49

36

HORN - Call your local BRP dealership

515176035

Unavailable

37

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

38

HORN SUPPORT - Call your local BRP dealership

5447941

Unavailable

39

Rivet

36005

$2.11

40

Temperature Sensor

515176132

$339.99

41

STEERING HARNESS - Call your local BRP dealership

605353266

Unavailable
