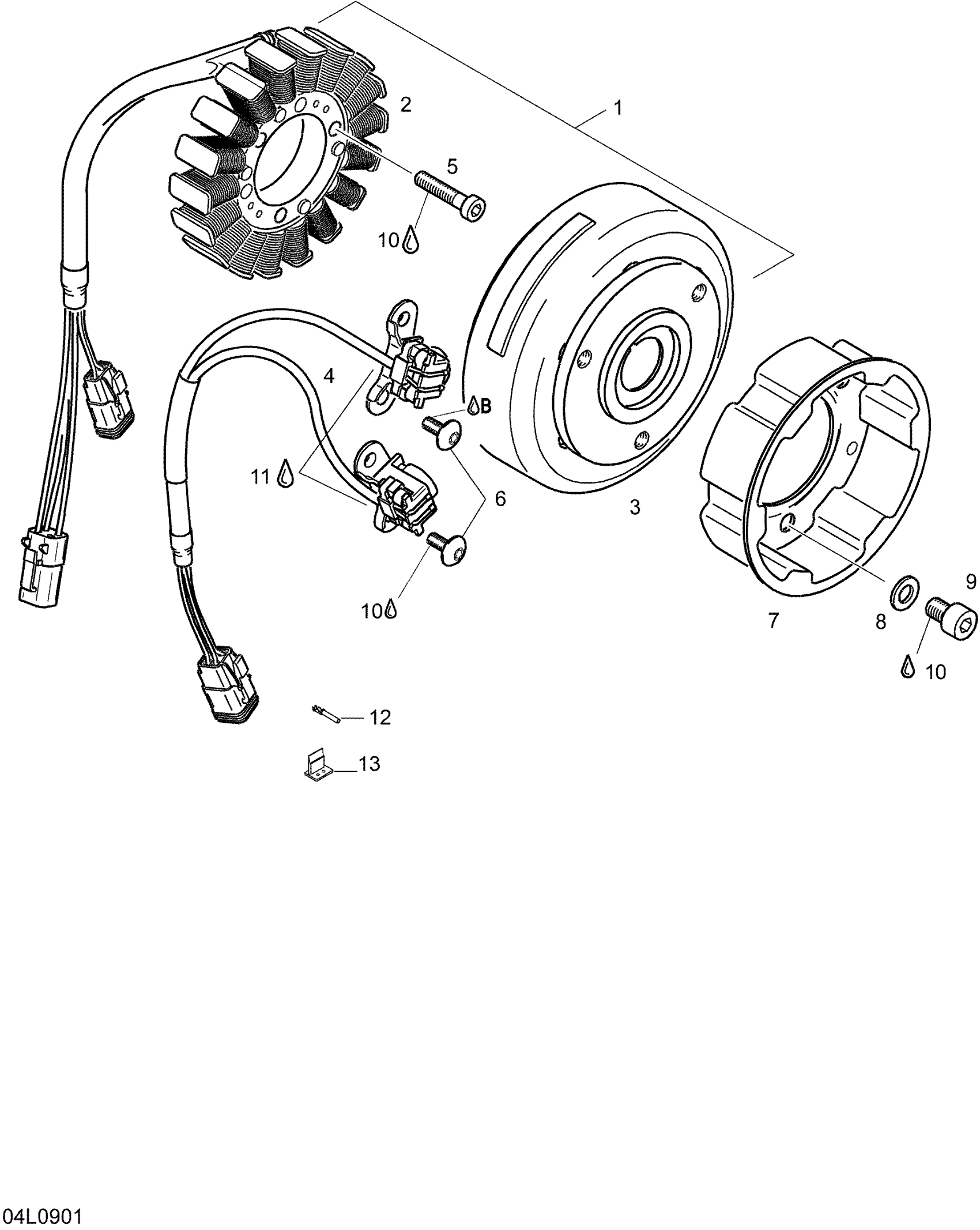

Ski-Doo Skandic SUV 600 Europe, 2009 03- Magneto 593 _04L0901 Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

$319.49

3

Flywheel

420665722

$547.99

4

Pickup Ass'y

410922948

$199.99

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Torx Screw M6 X 16

420640324

$2.11

7

Starting Pulley

420852590

$29.49

8

Flat Washer

420827405

$1.69

9

Socket Head Screw M8 X 12

420841520

$1.69

10

Loctite 243, 10 ml

293800060

$21.49

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Female Terminal

278000632

$2.09

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable
