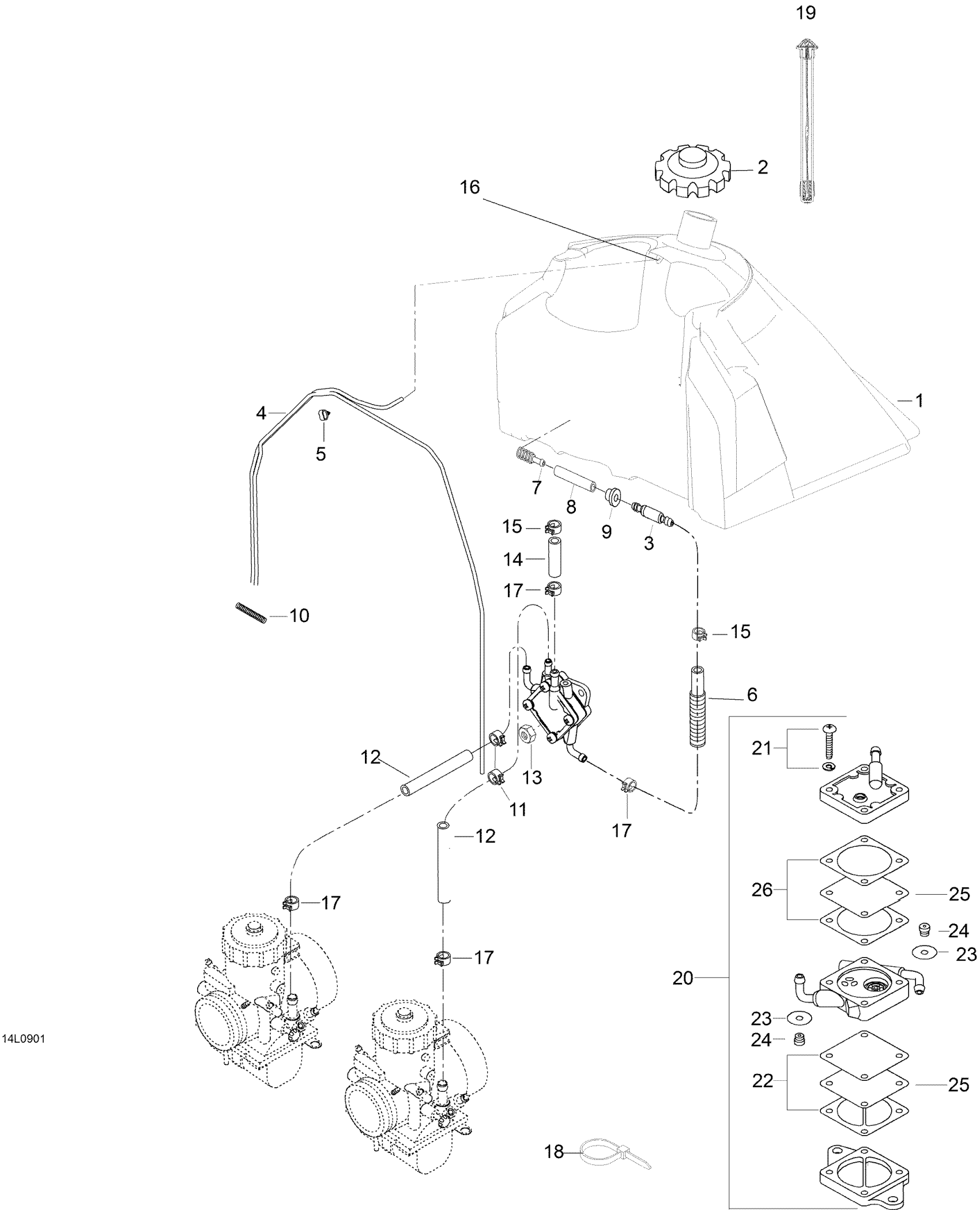

Ski-Doo Skandic SUV 600 Europe, 2009 02- Fuel System _14L0901 Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

605154804

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

Male Connector

414872700

$1.90

4

Hose

39035

Unavailable

5

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

6

Was M27127 Tubing

219704355

$23.49

7

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

8

House

39048

Unavailable

9

Grommet

293720058

$11.99

10

Spring

25003

Unavailable

11

Spring Clamp

414420700

$0.72

12

HOSE, POLYURETHANE - Call your local BRP dealership

415080200

Unavailable

13

Elastic Stop Nut M6

232561434

$1.99

14

Hose 1/4, 350 mm

605355647

Unavailable

15

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

16

NIPPLE - Call your local BRP dealership

404127600

Unavailable

17

CLAMP MINI ABA 13 - Call your local BRP dealership

605627005

Unavailable

18

Tie-Rap 180 mm

414115200

$0.11

19

FUEL GAUGE - Call your local BRP dealership

605351982

Unavailable

20

FUEL PUMP ASS'Y - Call your local BRP dealership

19113

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

GASKET - Call your local BRP dealership

404902300

Unavailable

23

GROMMET - Call your local BRP dealership

404902100

Unavailable

24

VALVE - Call your local BRP dealership

275500042

Unavailable

25

DIAPHRAGM - Call your local BRP dealership

404902200

Unavailable

26

GASKET - Call your local BRP dealership

404902400

Unavailable
