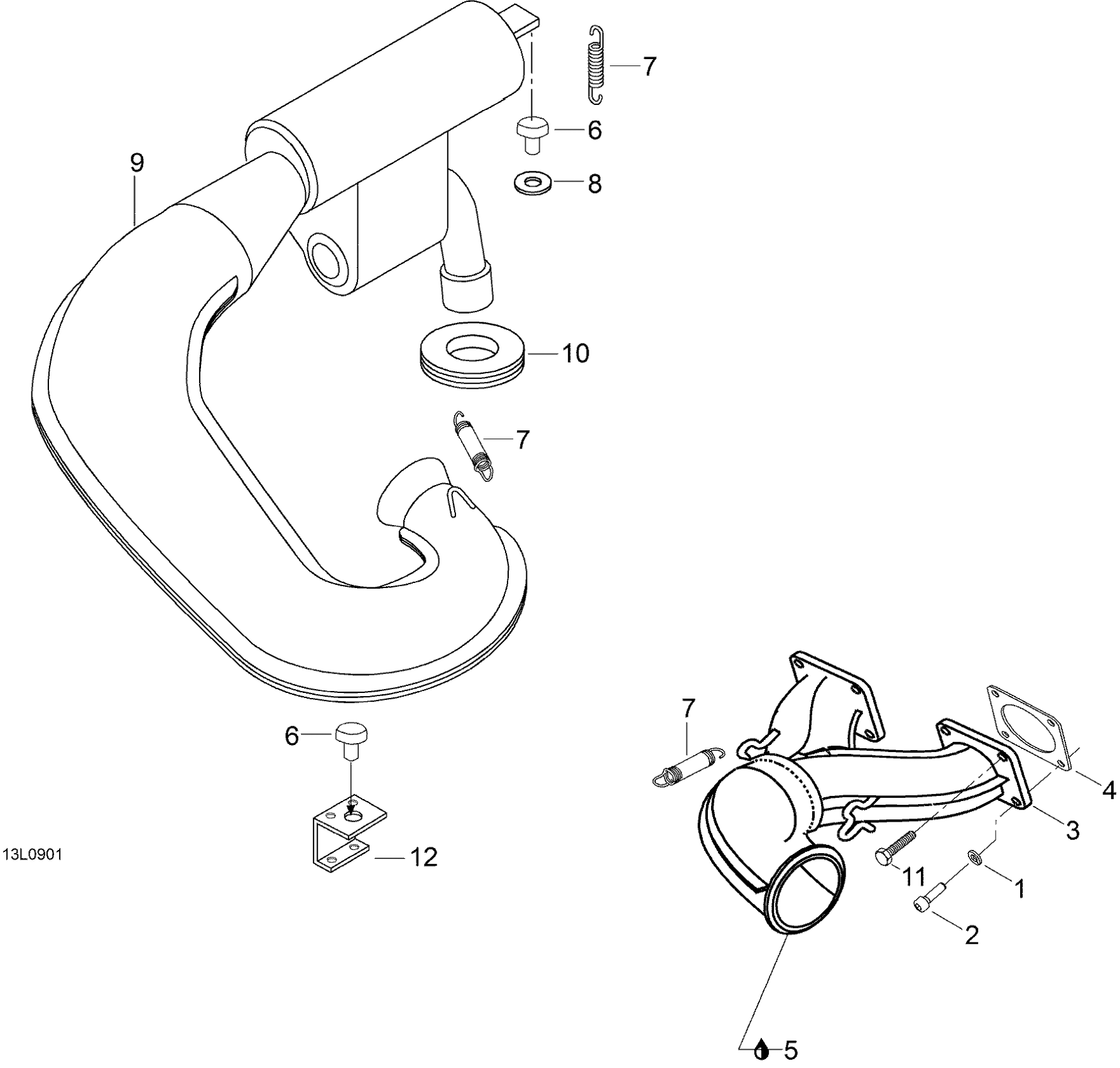

Ski-Doo Skandic SUV 600 Europe, 2009 Exhaust System _13L0901 Diagram

#

Description

Price

1

Lock washer A8

20014

Unavailable

2

Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership

40135

Unavailable

3

Branch-Y This part replaces M5245177.

5245177

$539.99

4

Gasket

420931610

$11.65

5

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

6

Rubber Bumper

514053654

$50.99

7

Spring This part replaces 420938795.

420938796

$9.27

8

Washer M14

20087

Unavailable

9

PIPE_TUNED ASSY - Call your local BRP dealership

605148762

Unavailable

10

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

11

Hex. screw M8 x 20

40036

Unavailable

12

Bracket

605355769

Unavailable
