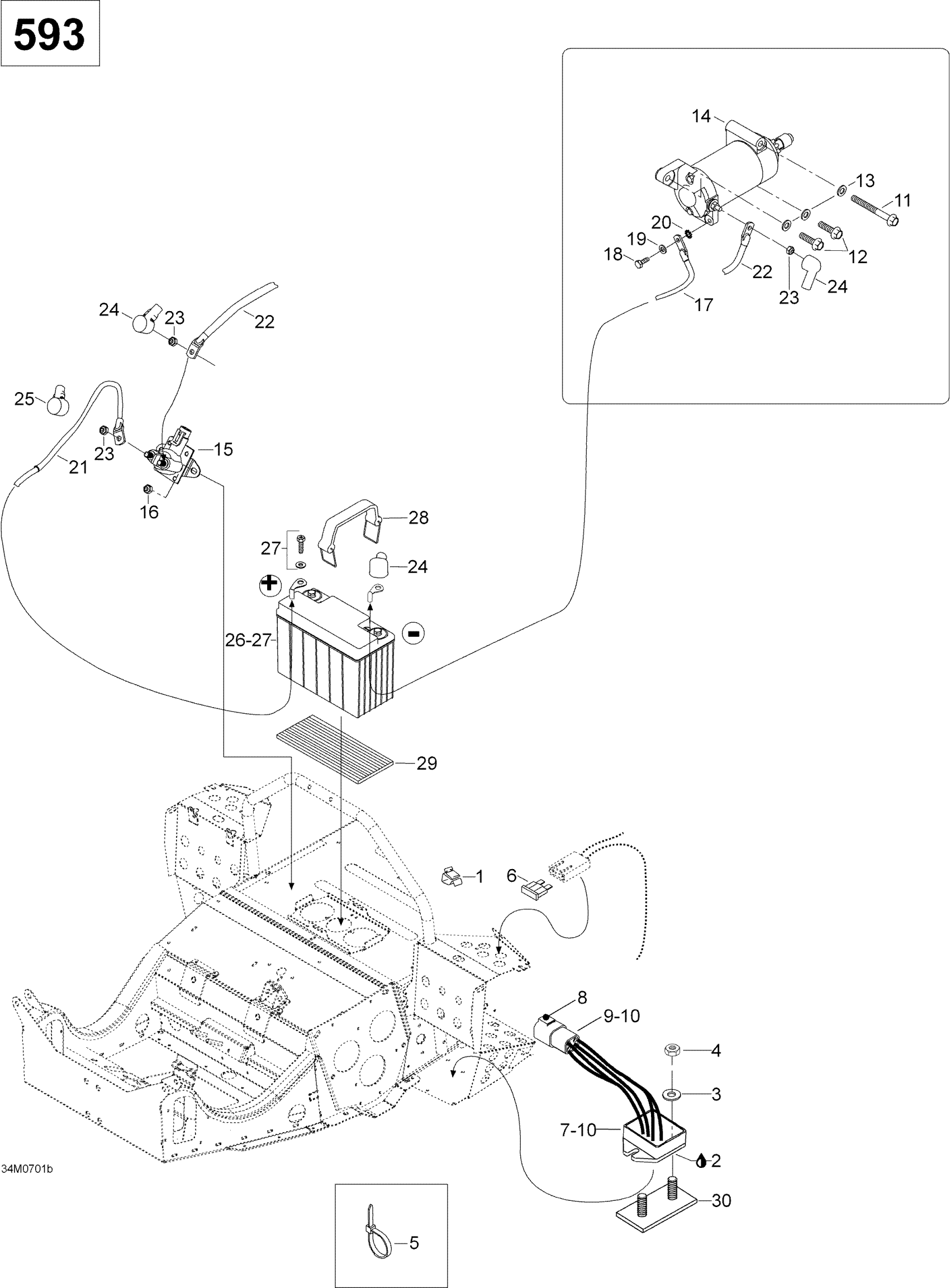

Ski-Doo Skandic SUV 600, 2007 04- Electric Starter 600 SUV Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Grease Tube Lmz, 400 G

413707500

Unavailable

3

Flat Washer 6 mm

234062410

$0.77

4

Elastic Stop Nut M6

232561414

$0.55

5

Tie-Rap 180 mm

414115200

$0.11

6

Fuse, 20 Amperes

409003900

$3.28

7

Voltage Regulator Ass'y

515175939

$209.99

8

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

9

Male Terminal

515175568

$9.12

10

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

11

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

12

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

13

Flat Washer With Teflon 8 mm

250200008

$3.80

14

Electric Starter Ass'y

515176133

$319.49

15

Starter Relay

278003012

$42.49

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Battery Wire

M5446597

Unavailable

18

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

19

Flat Washer 6 mm

234061410

$1.36

20

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

21

Battery Wire

M5348359

Unavailable

22

Elastic Stop Nut M6

232561414

$0.55

23

Elastic Stop Nut M6

232561414

$0.55

24

Protection Cap

570151000

$21.99

25

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

26

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

27

Battery Bolt Kit

250000282

$7.29

28

Battery Strap

515176044

$18.49

29

BATTERY CARPET - Call your local BRP dealership

605350237

Unavailable

30

SUPPORT - Call your local BRP dealership

M5448286

Unavailable
