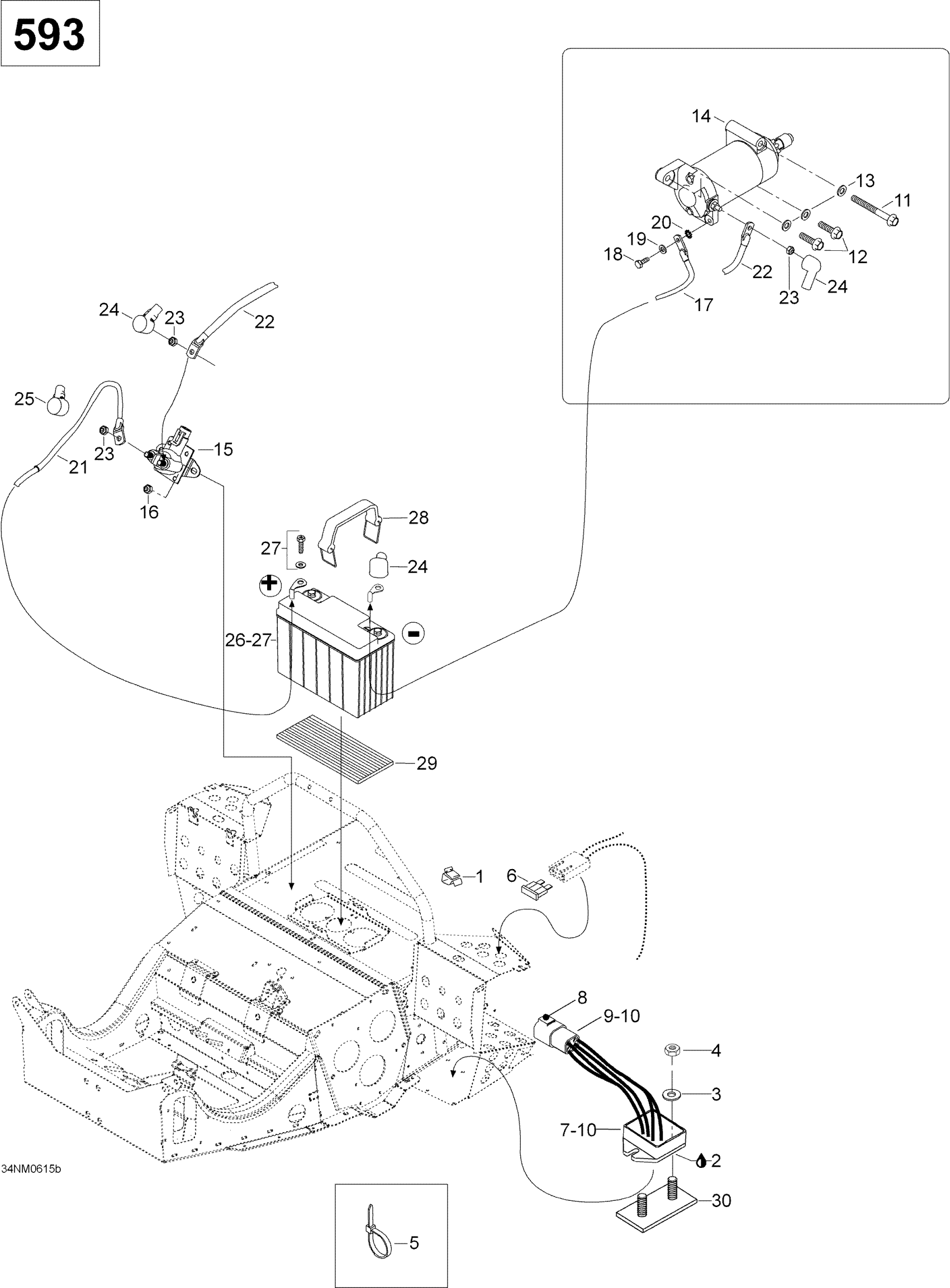

Ski-Doo Skandic SUV 600, 2006 Battery And Starter 593 Diagram

#

Description
Price

1

Clip

414227300

$1.40

2

Grease Tube Lmz, 400 G

413707500

Unavailable

3

Flat Washer 6 mm

234062410

$0.73

4

Elastic Stop Nut M6

232561414

$1.78

5

Tie-Rap 180 mm

414115200

$0.10

6

Fuse, 20 Amperes

409003900

$3.12

7

Voltage Regulator Ass'y

515175939

$188.78

8

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

9

Male Terminal

515175568

$7.25

10

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

11

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.57

12

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

13

Flat Washer With Teflon 8 mm

250200008

$3.58

14

Electric Starter Ass'y

515176133

$319.49

15

Starter Relay

278003012

$40.27

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

Battery Wire

M5446597

Unavailable

18

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

19

Flat Washer 6 mm

234061410

$1.19

20

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

21

Battery Wire

M5348359

Unavailable

22

BATTERY WIRE - Call your local BRP dealership

M5348358

Unavailable

23

Elastic Stop Nut M6

232561414

$1.78

24

Protection Cap

570151000

$17.88

25

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

26

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

27

Battery Bolt Kit

250000282

$3.39

28

Battery Strap

515176044

$16.39

29

BATTERY CARPET - Call your local BRP dealership

605350237

Unavailable

30

SUPPORT - Call your local BRP dealership

M5448286

Unavailable
