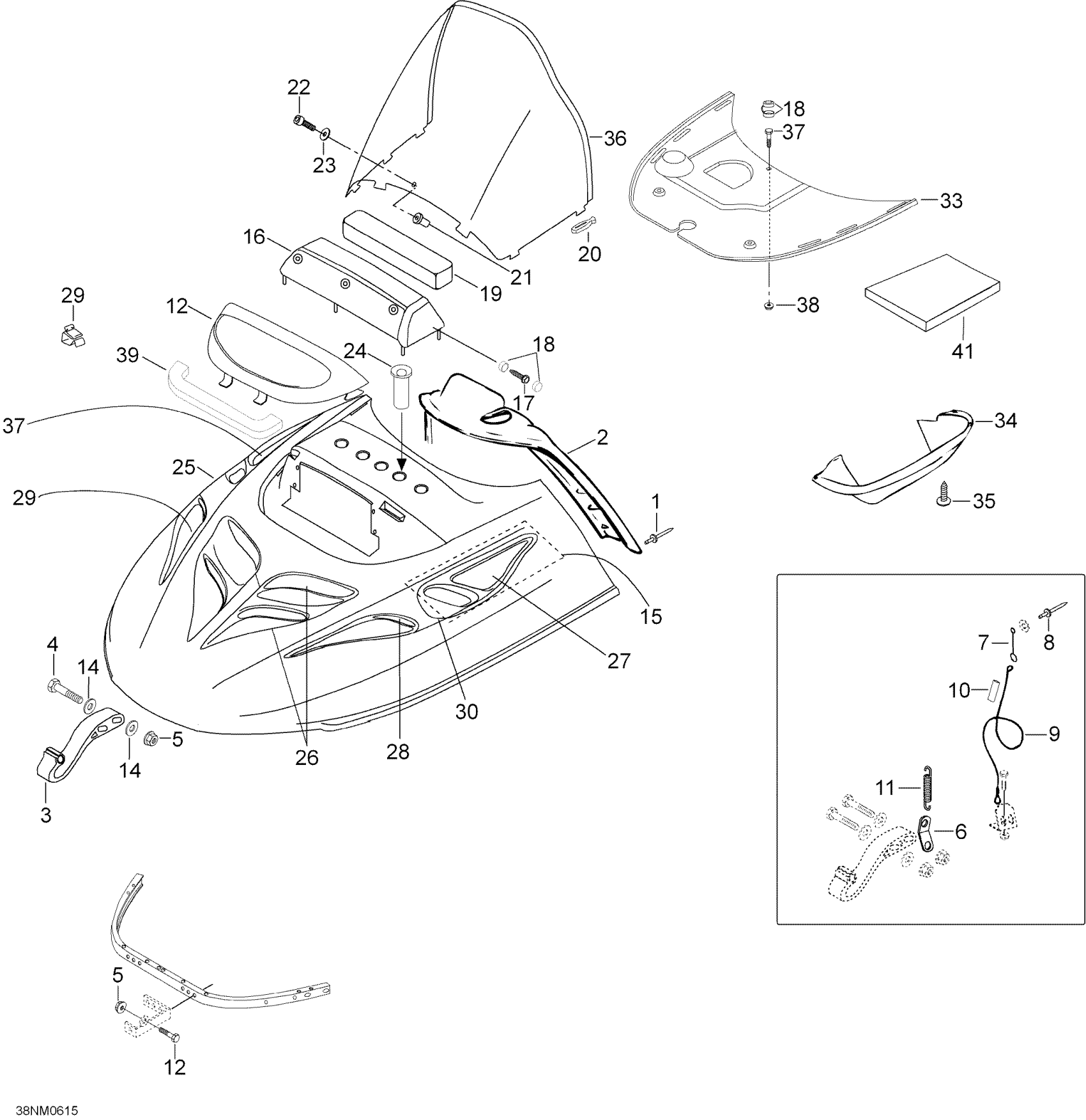

Ski-Doo Skandic SUV 600, 2006 09- Hood 600 SUV Diagram

#

Description
Price

1

Black, Rivet

M36036

$1.69

2

Dash | SUV 600

605148420

Unavailable

3

Hinge This part replaces M5343075.

5343075

$36.99

4

SCREW - Call your local BRP dealership

M40193

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

7

CABLE-KEEPER - Call your local BRP dealership | SUV 600

M5446948

Unavailable

8

Rivet

36005

$2.11

9

Retainer Cable | SUV 600

M5342674

Unavailable

10

Housing

M39023

Unavailable

11

Spring This part replaces M5442675.

5442675

$14.99

12

LAMP MOLDING - Call your local BRP dealership

605252351

Unavailable

13

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

14

Flat Washer 6 mm

234062410

$0.77

15

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

16

INTAKE COVER - Call your local BRP dealership

605149010

Unavailable

17

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

18

COVER - Call your local BRP dealership

M282000

Unavailable

19

FILTER - Call your local BRP dealership

605349056

Unavailable

20

Windshield Latch

570023800

$4.49

21

Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055.

28055

$7.51

22

Screw

M40156

Unavailable

23

Washer 5,3 mm

20008

$0.74

24

SHORT TUBE - Call your local BRP dealership

605449084

Unavailable

25

HOOD ASS'Y, YELLOW - Call your local BRP dealership | SUV 600 (Yellow), Includes 46 to 51

605149606

Unavailable

25

HOOD ASS'Y - Call your local BRP dealership | SUV 600 (Black), Includes 46 to 51

605150366

Unavailable

25

Hood, pre ass'y | SUV 600 (Black), Includes 46 to 51, Europe

605148694

Unavailable

26

Front Grill

M5142669

Unavailable

27

LH Upper Grill | SUV 600

M5242899

Unavailable

27

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

28

RH Lower Grill

M5242672

Unavailable

28

LH Lower Grill

M5342673

Unavailable

29

Clip

414227300

$1.67

30

RH Cover | SUV 600

M5342990

Unavailable

31

LH Cover | SUV 600

M5343408

Unavailable

32

Fan Cover | SUV 600

M5343409

Unavailable

33

Air Duct

M5246742

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable

35

Black, Dart

414644300

$0.98

36

WINDSHIELD - Call your local BRP dealership

M5147892

Unavailable

37

Screw M5X25

M40179

Unavailable

38

NUT M5 - Call your local BRP dealership

M33062

Unavailable

39

HEADLIGHT FOAM SEAL - Call your local BRP dealership | SUV 600

605349151

Unavailable

40

SUPPORT - Call your local BRP dealership | SUV 600

605450205

Unavailable

41

Acoustic Foam

414631900

Unavailable
