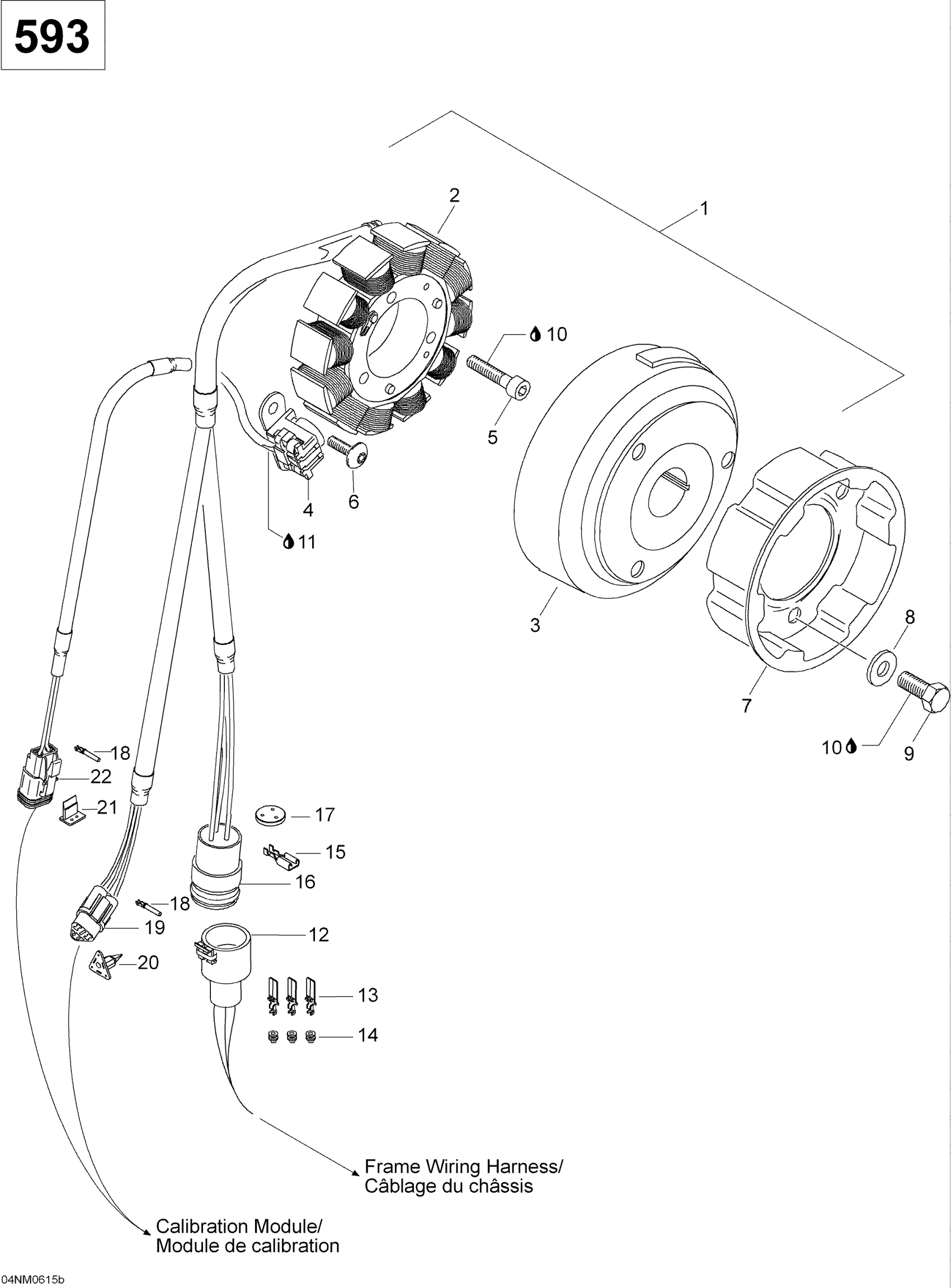

Ski-Doo Skandic SUV 600, 2006 03- Magneto 593 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate Ass’Y

410922949

Unavailable

3

FLYWHEEL - Call your local BRP dealership

410922950

Unavailable

4

Pick-Up

410922951

$114.99

5

Socket Head Screw M6 X 30

205063044

$1.69

6

Torx Screw M6 X 16

420640324

$2.11

7

Starting Pulley

420852590

$29.49

8

Flat Washer

420827405

$1.69

9

Socket Head Screw M8 X 12

420841520

$1.69

10

Loctite 243, 10 ml

293800060

$21.49

11

Not Available As Spare Part - Friction Washer

Unavailable

12

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

13

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

14

SEAL - Call your local BRP dealership

409208500

Unavailable

15

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

16

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Female Terminal

278000632

$2.09

19

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

20

Female Lock

409207200

$4.39

21

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

22

Female Connector, 2 Circuits

409207300

$9.85
