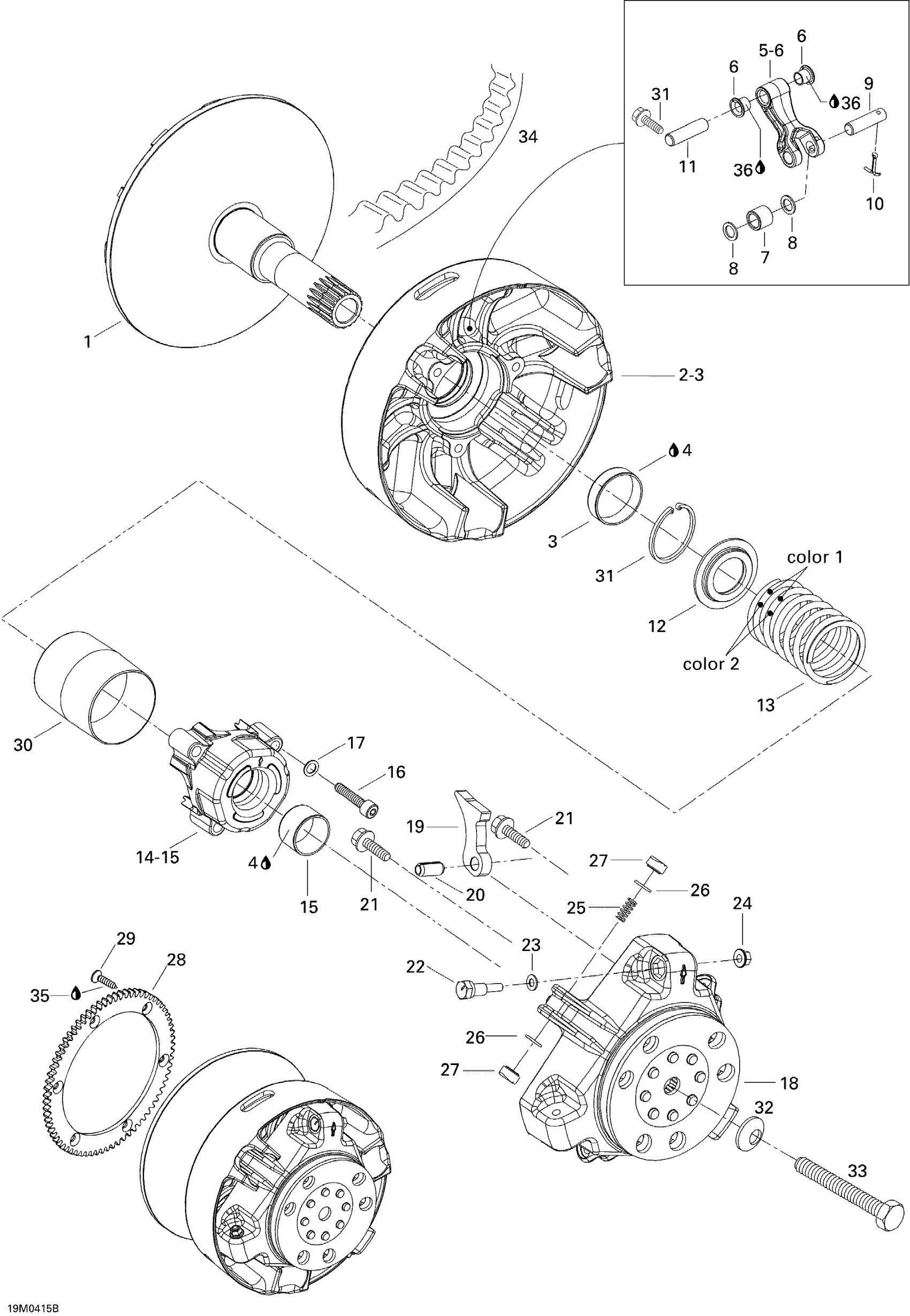

Ski-Doo Skandic SUV 600, 2004 05- Drive Pulley (593) Diagram

Fixed Flange Ass'y

417222937

$439.99

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

Bushing

417222758

$22.49

Loctite 609, 10 ml

413703100

$26.99

Lever | Includes 10f to 10g

417222671

$49.99

Bushing

417004305

$11.52

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Pin

417222594

$14.99

Cotter Pin

250400060

$2.00

Lever Axle

417223164

$4.49

Spring Seat

417222312

$9.59

Tra Spring

414993000

$56.99

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

Bushing

417009204

$17.49

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

Lock Washer 8 mm

250200009

$2.11

Governor Cup

417222213

Unavailable

Ramp 600

417222444

$36.99

Spring Pin M10 X 22

250400050

$2.99

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

Spring

417005700

$4.76

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

Ens This part replaces 861790500.

861791800

$201.49

HEX. TORX SCREW M8 X 14.5 - Call your local BRP dealership

250000049

Unavailable

Guard

417009205

$21.99

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

Conical Spring Washer

M20110

Unavailable

Drive Pulley Bolt

417120000

$65.49

Drive Belt | SUV 600

417300155

$134.99

Loctite 271, 10 ml

293800005

$26.99

Not Available As Spare Part - Friction Washer

Unavailable
