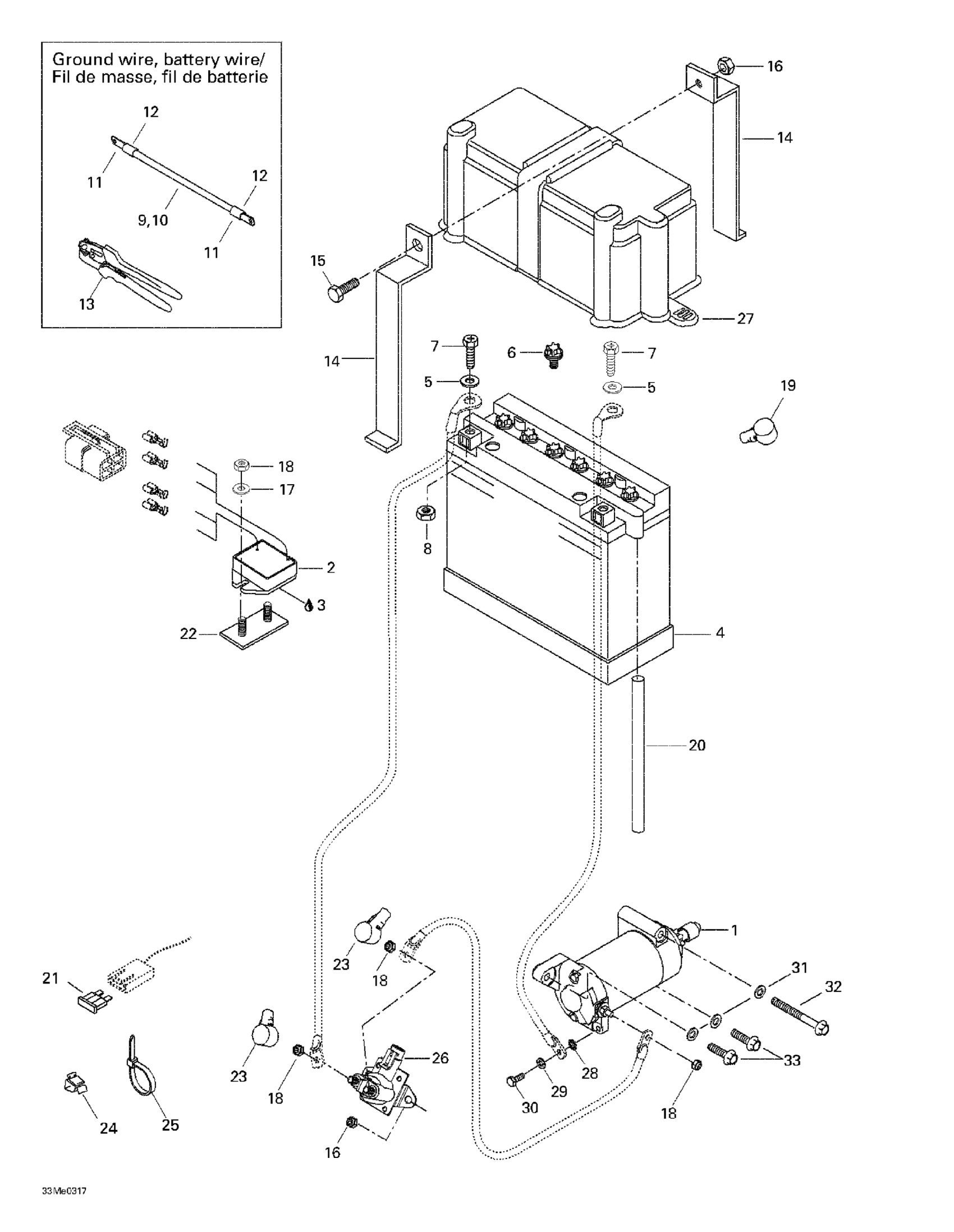

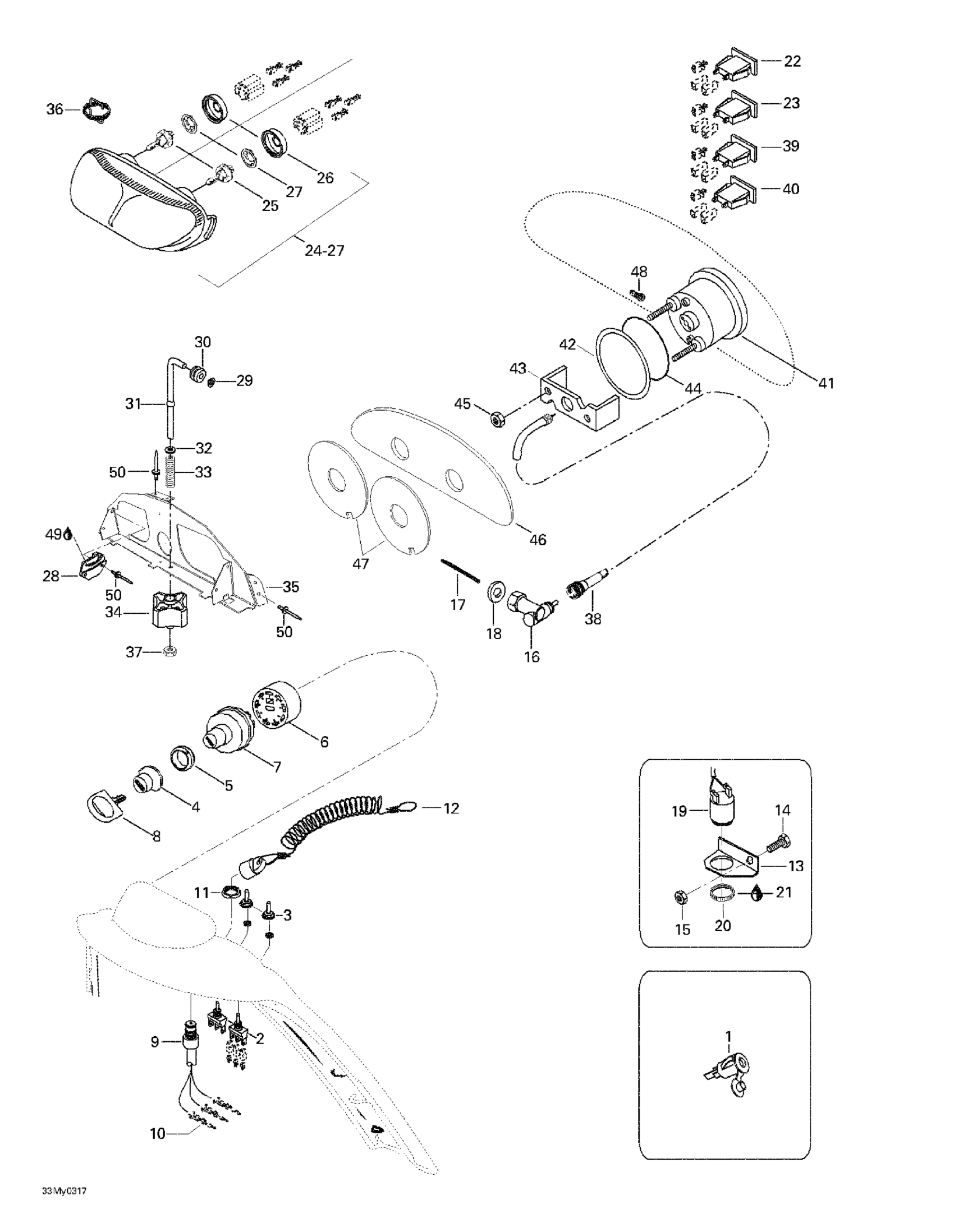

Ski-Doo Skandic SUV 600, 2003 Electrical System Diagram

#

Description
Price

1

DC Outlet

710001248

$31.17

2

Switch (Heating Grip) | FREERIDE

410107300

$34.58

3

Switch Cover

515175281

$15.03

4

Switch Boot

570013700

Unavailable

5

FACE NUT - Call your local BRP dealership

410112100

$14.29

6

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

7

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

8

Blank Key

415129350

Unavailable

9

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

10

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

11

Safety Nut (DESS Switch)

278002963

$2.72

12

DESS

515178284

Unavailable

13

Support

M549459

Unavailable

14

Hex. Screw M6 X 16

207161644

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

Unavailable

17

Tige Vitesse *Branch-Key This part replaces M45009.

45009

Unavailable

18

Washer

M5444186

Unavailable

19

Back-Up Alarm

414792102

$143.05

20

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

21

Silicone Sealant 51388, 300 ml

296000309

Unavailable

22

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

23

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

24

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

25

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

26

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

27

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

28

RH Support

517289300

Unavailable

28

LH Support

517289400

Unavailable

29

Push Nut

732610072

Unavailable

30

Grommet - Call your local BRP dealership

415100800

Unavailable

31

ADJUSTER ROD - Call your local BRP dealership

M5448100

Unavailable

32

Washer 6mm

M5448320

Unavailable

33

SPRING - Call your local BRP dealership

415100600

Unavailable

34

Handle - Call your local BRP dealership

515175548

Unavailable

35

Support

M5248092

Unavailable

36

Spring

M5445737

Unavailable

37

Elastic Stop Nut M6

232561414

Unavailable

38

Speedometer Cable This part replaces M5344162.

5344162

Unavailable

39

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

40

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

41

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

42

Washer

517258500

Unavailable

43

Case Holder

414806500

Unavailable

44

O-Ring

414807100

Unavailable

45

NUT M5 - Call your local BRP dealership

M33062

Unavailable

46

Foam

M5247817

Unavailable

47

Plastic Plate

M5447818

Unavailable

48

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

49

Grease Tube Lmz, 400 G

413707500

Unavailable

50

Rivet

36005

Unavailable
