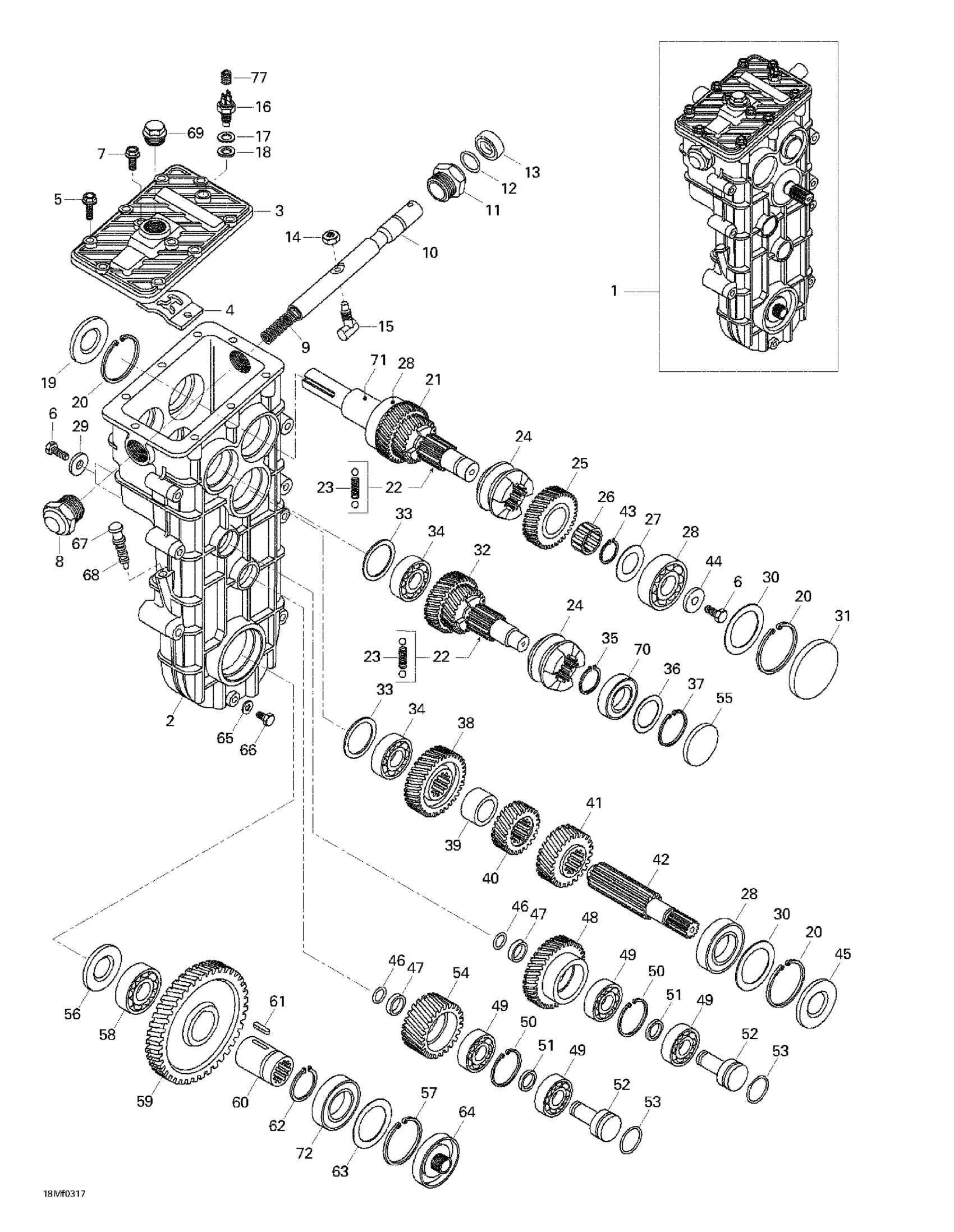

Ski-Doo Skandic SUV 600, 2003 Transmission Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

3

COVER - Call your local BRP dealership

M875156043

Unavailable

4

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

5

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

6

Hex. Screw M8 X 20

207182044

$0.70

7

Screw

M534801362

Unavailable

8

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

9

Spring This part replaces M875156078.

875156078

$99.22

10

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

11

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

12

O-ring This part replaces M614601523.

614601523

$10.21

13

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

14

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

15

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

16

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

17

Shim | Skandic 600.

M875156225

Unavailable

18

Shim

M617391218

Unavailable

19

Oil seal This part replaces M614103562.

614103562

$52.96

20

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

Unavailable

21

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

Unavailable

22

Ball This part replaces M616810064.

616810064

$24.60

23

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

24

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

25

Sprocket 29 Th

M875156135

Unavailable

26

Needle bearing This part replaces M611002529.

611002529

$25.34

27

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

28

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

29

Washer | Skandic 500F. Skandic 600.

M875156099

Unavailable

30

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

31

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

32

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

33

Plug This part replaces M875152953.

875152953

$38.78

34

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

35

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

Unavailable

36

Shim

M617394252

Unavailable

37

LOCK RING - Call your local BRP dealership

M617330052G

Unavailable

38

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

39

SLEEVE - Call your local BRP dealership

M875156088

Unavailable

40

Sprocket 29Th

M875156151

Unavailable

41

Sprocket 27 Th

M875156136

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

43

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

44

WASHER - Call your local BRP dealership

M875156112

Unavailable

45

Oil seal This part replaces M614102562.

614102562

$49.22

46

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

47

Shim This part replaces M875156094.

875156094

$19.37

48

Sprocket 28Th

M875156206

Unavailable

49

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

50

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

51

Washer

M875147205

Unavailable

52

Axe *Shaft This part replaces M875147204.

875147204

$120.87

53

O-ring This part replaces M614602431.

614602431

$10.21

54

Sprocket 31 Th

M875156156

Unavailable

55

Plug This part replaces M614100052.

614100052

$26.84

56

Oil seal This part replaces M614102852.

614102852

Unavailable

57

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

58

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

59

Sprocket 53 Th

M875156114

Unavailable

60

SHAFT - Call your local BRP dealership

M875156218

Unavailable

61

KEY - Call your local BRP dealership

M603345080

Unavailable

62

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

63

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

64

Bouchon *Plug

M875156104

Unavailable

65

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

66

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

67

Filler Cap Ass'y

M875156097

Unavailable

68

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

69

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

70

Bearing - Call your local BRP dealership This part replaces M6304.

6304

Unavailable

71

Sleeve

M875156089

Unavailable

72

BALL BEARING - Call your local BRP dealership This part replaces M610060084.

610060084

Unavailable
