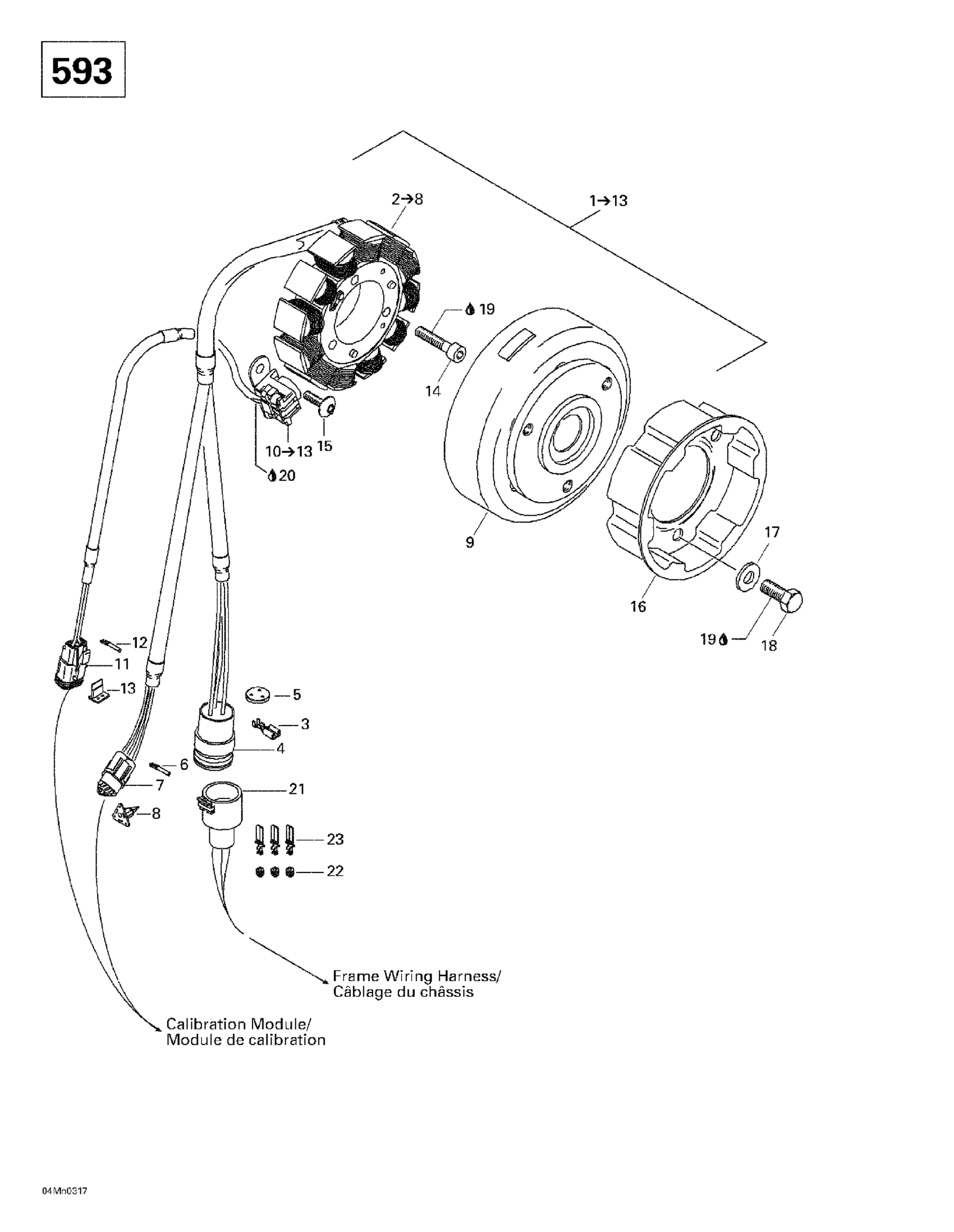

Ski-Doo Skandic SUV 600, 2003 Magneto (12V, 290W) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate Ass’Y

410922949

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

$3.82

4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

$10.74

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Female Terminal

278000632

Unavailable

7

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

8

Female Lock

409207200

$3.48

9

FLYWHEEL - Call your local BRP dealership

410922950

$345.99

10

Pick-Up

410922951

Unavailable

11

Female Connector, 2 Circuits

409207300

$9.60

12

Female Terminal

278000632

Unavailable

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

14

Socket Head Screw M6 X 30

205063044

Unavailable

15

Torx Screw M6 X 16

420640324

$2.06

16

Starting Pulley

420852590

$28.43

17

Flat Washer

420827405

$1.66

18

Socket Head Screw M8 X 12

420841520

$1.68

19

Loctite 243, 10 ml

293800060

$20.77

20

Not Available As Spare Part - Friction Washer

Unavailable

21

MALE HOUSING - Call your local BRP dealership

409207900

$7.66

22

SEAL - Call your local BRP dealership

409208500

Unavailable

23

MALE TERMINAL - Call your local BRP dealership

409011100

$3.82
