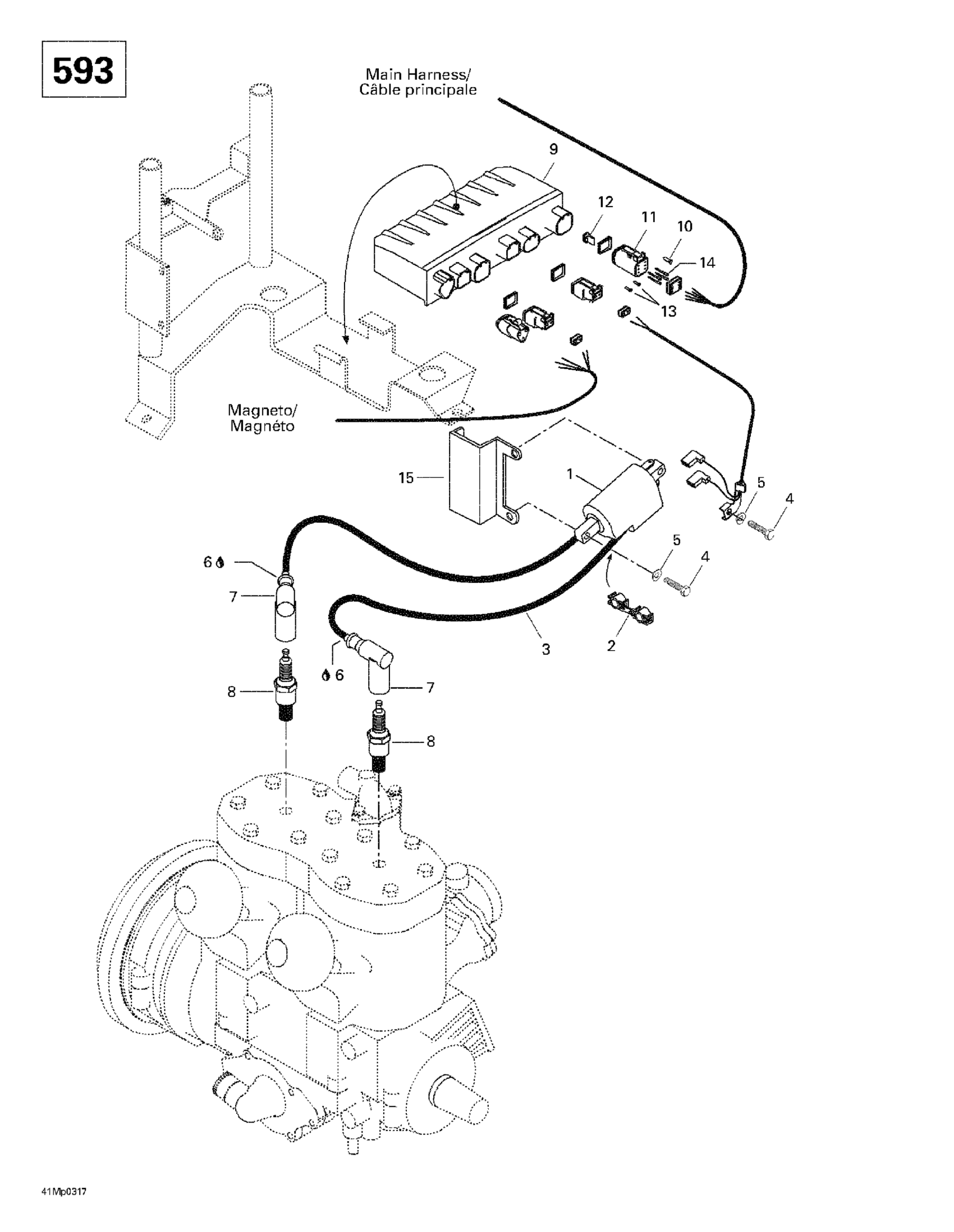

Ski-Doo Skandic SUV 600, 2003 Ignition Diagram
#
Description
Price
1
Ignition Coil
410922935
Unavailable
2
Plastic Clip, Spark Plug Wire
410914600
Unavailable
3
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
4
Screw
M40377
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
7
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
8
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
9
Calibration Module | Skandic 600.
M5247879
Unavailable
10
PLUG - Call your local BRP dealership
515175303
Unavailable
11
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
12
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
13
Sealing Cap
293000052
Unavailable
14
Female Terminal
278000632
Unavailable
15
Tank Support | Skandic 600.
M5343345
Unavailable
