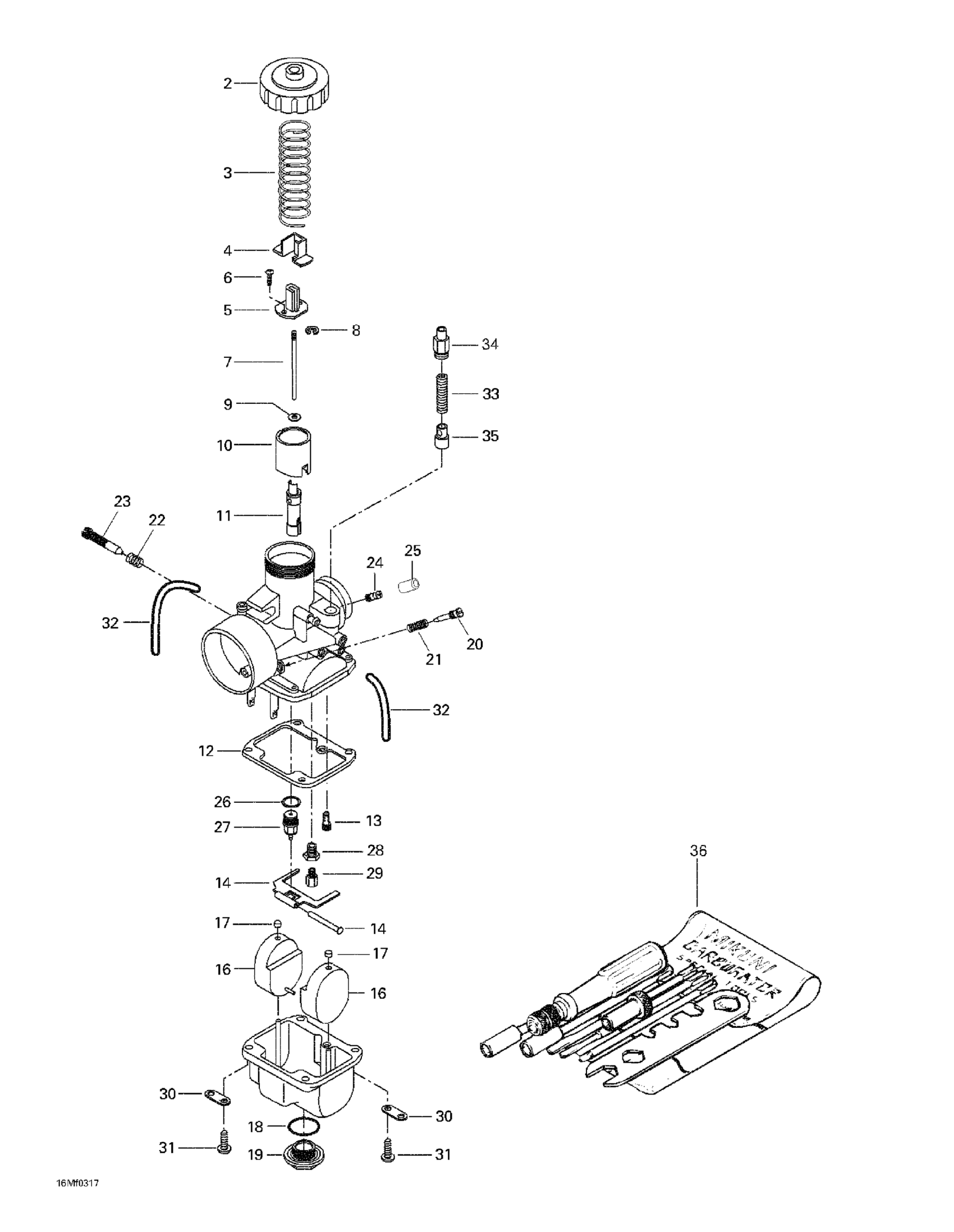

Ski-Doo Skandic SUV 600, 2003 Carburetors Diagram

#

Description
Price

1

Carburetor VM 38-443 (PTO) | Skandic 600.

M19111

Unavailable

2

COVER - Call your local BRP dealership

404105100

Unavailable

3

Spring

404154800

$24.60

4

Cover

404122100

$17.88

5

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

6

Screw With Washer

404121300

$4.24

7

Jet Needle J8 6FL14 | Skandic 600.

404114100

Unavailable

8

E-Ring

404152400

$6.36

9

Packing

404117000

$3.31

10

Piston Valve 2.5

404128400

$124.60

11

NEEDLE JET NJ 480 P-9 - Call your local BRP dealership

404161805

Unavailable

12

GASKET - Call your local BRP dealership

404104700

Unavailable

13

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

14

Lever Pin

404103300

$6.36

15

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

16

FLOAT - Call your local BRP dealership

404105400

Unavailable

17

Cap

404105800

$6.49

18

O-RING - Call your local BRP dealership

404101500

Unavailable

19

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

20

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

21

SPRING - Call your local BRP dealership

404139800

Unavailable

22

Spring

404101700

$4.24

23

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

24

Nipple

404153400

$11.16

25

Cap

404156600

$15.64

26

Seat Washer

404101600

$3.21

27

Needle Valve 1.5

404103200

$32.06

28

Guide Screw

404105500

$32.06

29

Main Jet 330

404101400

$7.90

30

PLATE - Call your local BRP dealership

404103000

Unavailable

31

Screw With Lock Washer

404102000

$3.19

32

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

33

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

34

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

35

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
