Description

Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$755.99

2

Check Valve

420956511

$35.99

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

4

Hex. Collar Screw M8 x 45

420640432

$8.57

5

STUD M10 - Call your local BRP dealership

420940704

Unavailable

6

Stud M8 X 173.5

420840556

$15.89

7

Cable Grommet

420860962

$13.16

8

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

8

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

421000663

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Sealant Loctite 648

219703000

$45.99

11

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

12

CAP - Call your local BRP dealership

420960772

Unavailable

13

Flat Washer 8.4 mm

420250315

$1.15

14

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.11

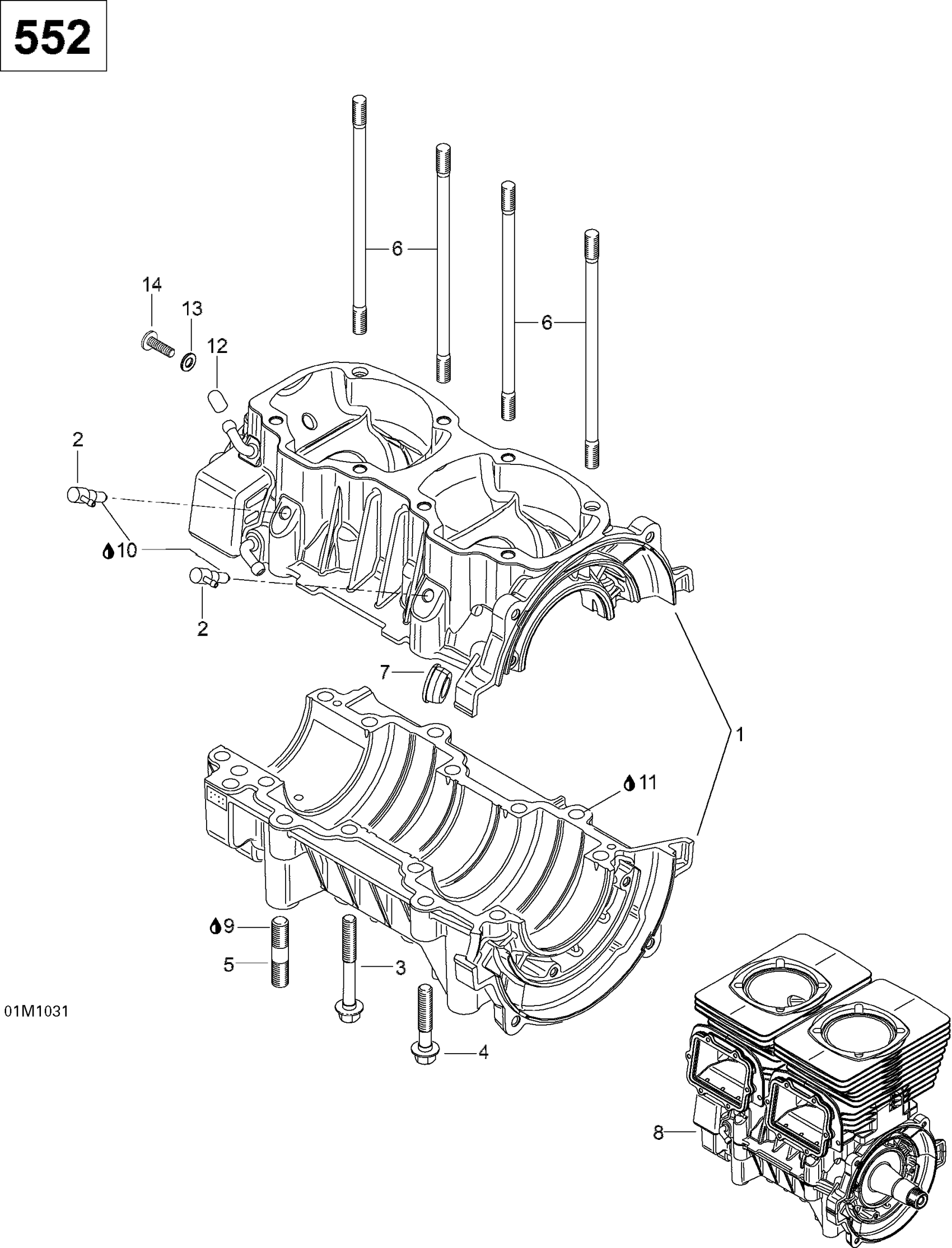

Ski-Doo Skandic SUV 550F, 2010 01- Crankcase Diagram

Crankcase Ass'y | Includes 1 to 4

Check Valve

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

Hex. Collar Screw M8 x 45

STUD M10 - Call your local BRP dealership

Stud M8 X 173.5

Cable Grommet

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.

Loctite 243, 10 ml

Sealant Loctite 648

Sealing Compound Loctite 5366 310Ml

CAP - Call your local BRP dealership

Flat Washer 8.4 mm

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.
