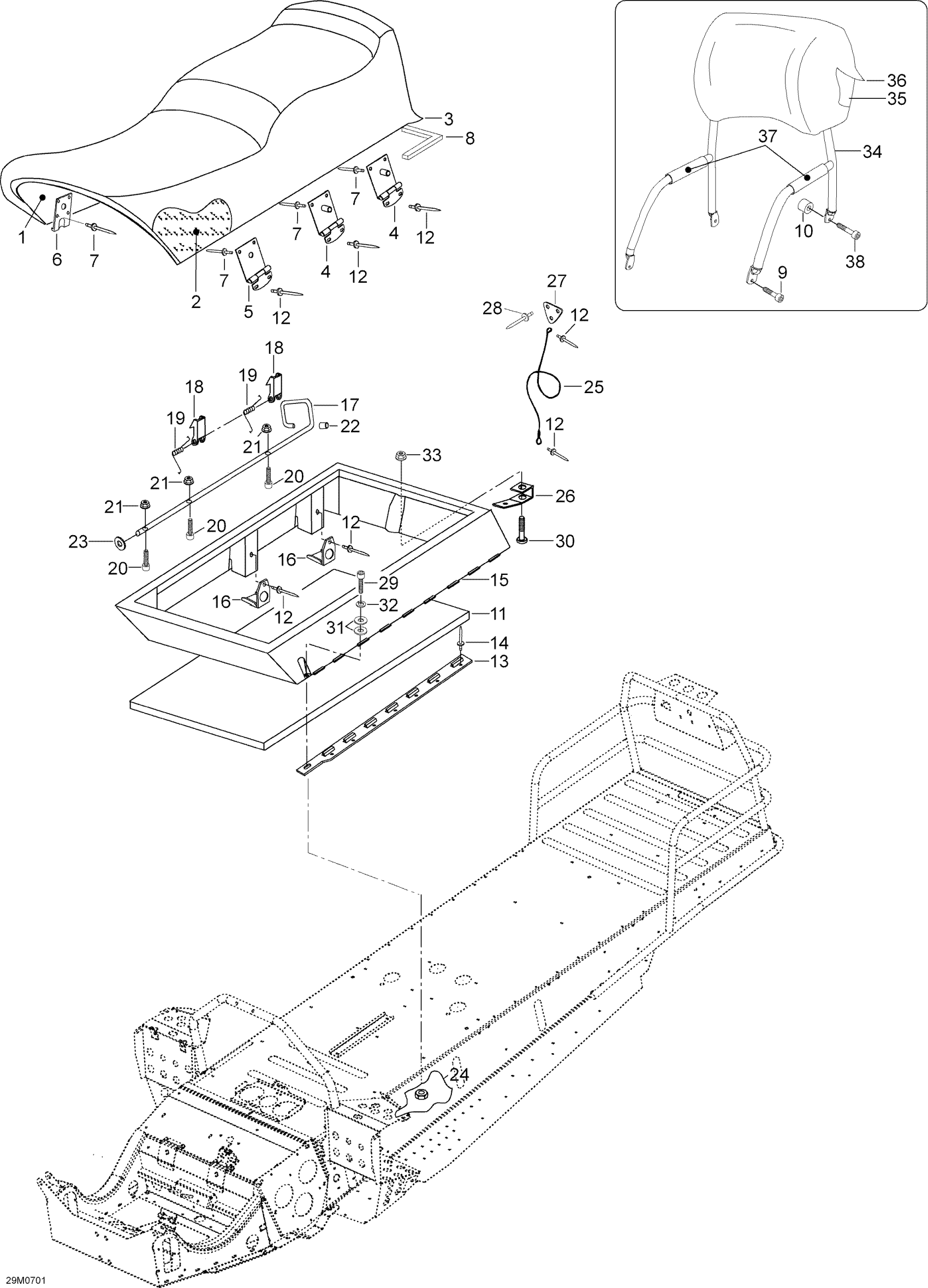

Ski-Doo Skandic SUV 550F, 2007 09- Seat 550F SUV Diagram
#
Description
Price
1
Sub Seat
M519394
Unavailable
2
Foam Seat
605148623
Unavailable
3
COVER - Call your local BRP dealership
605153063
Unavailable
4
HINGE - Call your local BRP dealership
M549874
Unavailable
5
HINGE - Call your local BRP dealership
M5440581
Unavailable
6
Lock Plate
M549732
Unavailable
7
Rivet
M36071
Unavailable
8
SEALING STRIP PROFIL - Call your local BRP dealership
M5440059
Unavailable
9
SCREW-SOCKET - Call your local BRP dealership
M40388
Unavailable
10
Spacer
M5440665
Unavailable
11
Foam | SUV 550
M5344621
Unavailable
12
Rivet
M36489
Unavailable
13
RH Support
M5144029
Unavailable
13
LH Support
M5144028
Unavailable
15
Welded Seat Base Weld
M5142066
Unavailable
16
Support
M5443661
Unavailable
17
Pivot Pin
M5344987
Unavailable
18
CAM LOCK - Call your local BRP dealership
605451589
Unavailable
19
SPRING - Call your local BRP dealership
M5444439
Unavailable
20
Screw M4 X 16
M40144
Unavailable
22
Cap
M28019
Unavailable
24
NUT M6 - Call your local BRP dealership
M33066
Unavailable
26
Keeper Cable | SUV 550
M5444464
Unavailable
27
SUPPORT - Call your local BRP dealership
605452535
Unavailable
28
Rivet
M36038
Unavailable
30
Screw M6 X 30 | SUV 550
M40149
Unavailable
34
Backrest
M5245664
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
RH Grip, 250 mm
415050300
Unavailable
38
Allen Screw
M40389
Unavailable
