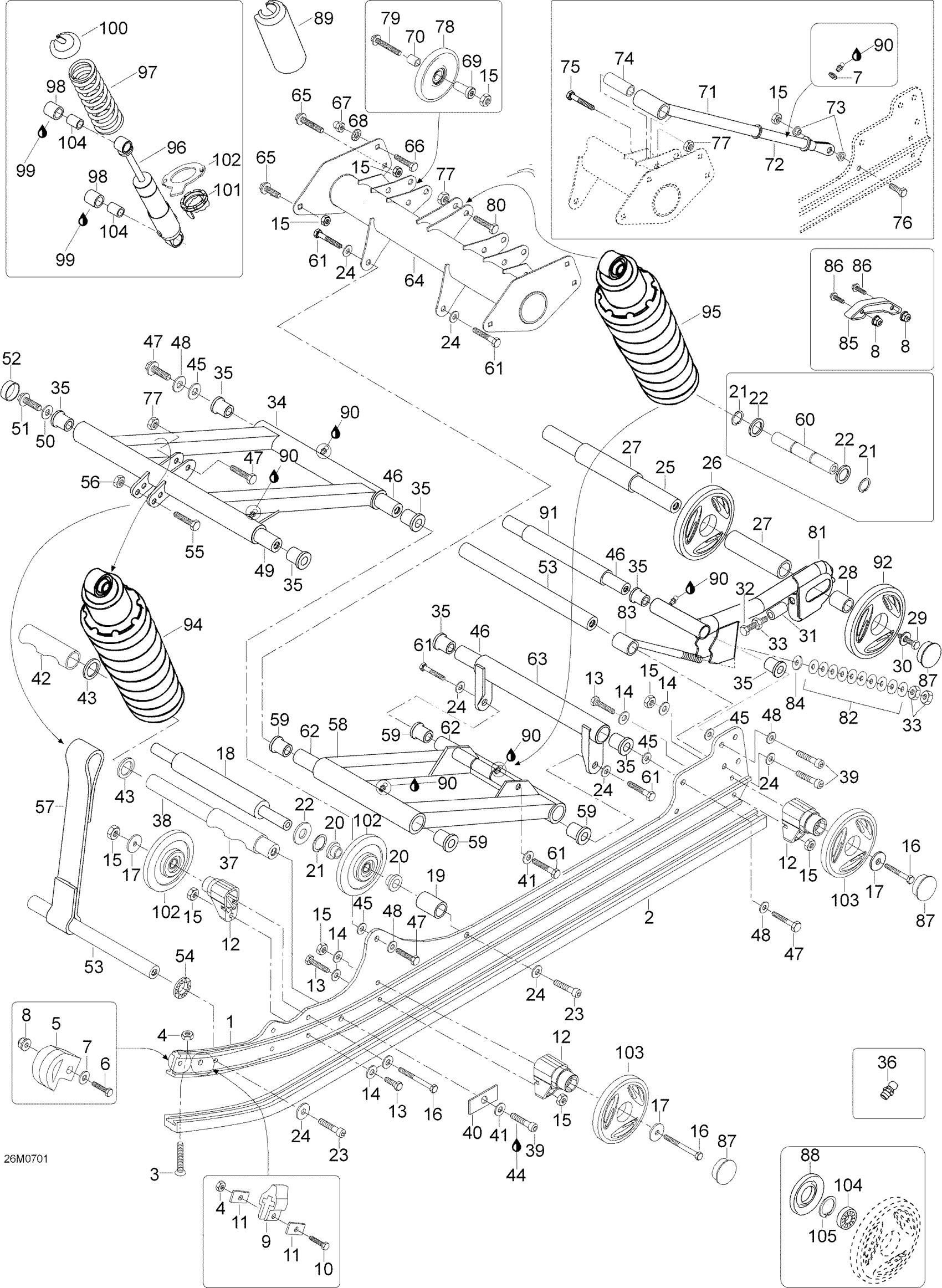

Ski-Doo Skandic SUV 550F, 2007 Rear Suspension Diagram

RAIL_SUSPENSION MACHINED - Call your local BRP dealership

605253573

Unavailable

Slide Shoe

605355362

$26.84

Screw M6X60

M40059

Unavailable

Elastic Stop Nut M6

232561414

$1.78

Runner Protector

605348954

$17.13

Hex. Screw M6 X 25

207162544

$1.01

Flat Washer 6 mm

234061410

$1.19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Rubber Stopper

M5448216

Unavailable

Hex. Screw M6 X 30

207063044

$1.12

Plate

M548470

Unavailable

SUPPORT - Call your local BRP dealership

605450182

Unavailable

Hex. Screw M8 X 25

207182544

$0.85

Flat Washer 8 mm

234081410

$0.79

Hex. Elastic Stop Nut M8

232581414

$0.54

Screw

M40089

Unavailable

Washer

503183100

$2.99

Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950.

5347950

Unavailable

Sleeve - Call your local BRP dealership This part replaces M5447951.

5447951

Unavailable

Cushion

503189534

$4.42

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.15

SHIM - Call your local BRP dealership

M31091

Unavailable

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$1.61

WASHER M10 - Call your local BRP dealership

20005

Unavailable

SHAFT - Call your local BRP dealership

M5343284

Unavailable

Thin Wheel 165

503189478

$48.48

Sleeve This part replaces M5444096.

5444096

$26.84

Sleeve L=29

M5444098

Unavailable

Hex. Screw With Nylon Patch

M40050

Unavailable

Washer

503183300

$5.51

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

SCREW - Call your local BRP dealership

M40239

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.27

Front arm - Call your local BRP dealership This part replaces M5147672.

5147672

Unavailable

Cushion This part replaces M31024.

31024

$12.45

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

Limiter - Call your local BRP dealership This part replaces M5347718.

5347718

Unavailable

Shaft This part replaces M5347726.

5347726

$76.09

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$1.61

Support plate This part replaces M5447940.

5447940

$11.00

Lock Washer D10

20068

$1.91

SLEEVE - Call your local BRP dealership

M5346649

Unavailable

Shim Ring This part replaces M31013.

31013

$7.09

Loctite 271, 10 ml

293800005

$23.85

Shim This part replaces M20116.

20116

$1.99

Lower Shaft, Front Arm This part replaces M5347713.

5347713

$64.15

Hex. Screw M10 X 45

207004544

$1.60

Lock Washer

512056700

$3.01

Upper Shaft This part replaces 605348606.

5347719

$74.60

Conical Spring Washer

M20090

Unavailable

Screw M12 X 60

M40243

Unavailable

Cap

M5448025

Unavailable

Shaft This part replaces M5347717.

5347717

$44.75

Washer

M4181158

Unavailable

Hex. Screw M8 X 45

207084544

$1.43

Hex. Elastic Stop Nut M8

232581414

$0.54

Stopper Strap

M5447961

Unavailable

Rear Arm Weld Light

605349313

Unavailable

Flange Bearing (Cushion) This part replaces M31027.

31027

$23.10

REARSHOCK SHAFT - Call your local BRP dealership

605451897

Unavailable

Hex. Screw M10 X 40

207004044

$4.51

SHAFT - Call your local BRP dealership This part replaces M5346865.

5346865

Unavailable

Welded Rear Arm

M5347668

Unavailable

UPPER ARM - Call your local BRP dealership

605249988

Unavailable

Carriage Bolt, M8 X 20

207782044

$1.79

Screw

M40056

Unavailable

Lock Washer

M20072

Unavailable

Nut

M33044

Unavailable

FLANGED SLEEVE - Call your local BRP dealership

605450372

Unavailable

SLEEVE - Call your local BRP dealership

605450373

Unavailable

Poker tube This part replaces M5347851.

5347851

$52.96

Axe *Shaft

M5347852

Unavailable

Insert

M5447853

Unavailable

Bearing sleeve - Call your local BRP dealership This part replaces M5447848.

5447848

Unavailable

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

Hex. Screw M10 X 35

207103544

$1.63

Elastic Locking Nut M10 X 1.5

233601416

$1.63

Idler Wheel

M46027

Unavailable

Hex. Screw M8 X 70

M40088

Unavailable

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

EXTENSION SWING RH - Call your local BRP dealership

605251780

Unavailable

EXTENSION SWING LH - Call your local BRP dealership

605251779

Unavailable

Cup Spring This part replaces M25004.

25004

$3.33

Eye bolt adjuster This part replaces M5447373.

5447373

$36.54

Flat Washer 10 mm This part replaces M20011.

234002410

$1.43

Sliding Pad

503192731

Unavailable

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

Wheel Cap

570063600

$3.18

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

Shock Protector

M5346754

Unavailable

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

Sleeve

605448429

$67.88

Wheel 165 mm Yellow

503190817

$48.48

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

SHOCK-CENTER - Call your local BRP dealership

M23161

Unavailable

Shock, rear arm This part replaces M23152.

23152

$231.31

REAR SHOCK - Call your local BRP dealership

M23162

Unavailable

White Spring

M25059

Unavailable

White Spring

M25060

Unavailable

Rear Spring

M230079

Unavailable

Cushion This part replaces M31094.

31094

$9.78

Loctite 641, 50 ml

M320006

Unavailable

Spring Seat

230076

$8.13

CAM - Call your local BRP dealership

M230078

Unavailable

ARM ADJUSTING ASS'Y - Call your local BRP dealership

605348748

Unavailable

Wheel 139 mm Ass'y

503190798

$31.31

Ball Bearing

293350115

$10.82

CIRCLIP - Call your local BRP dealership

371901700

Unavailable
