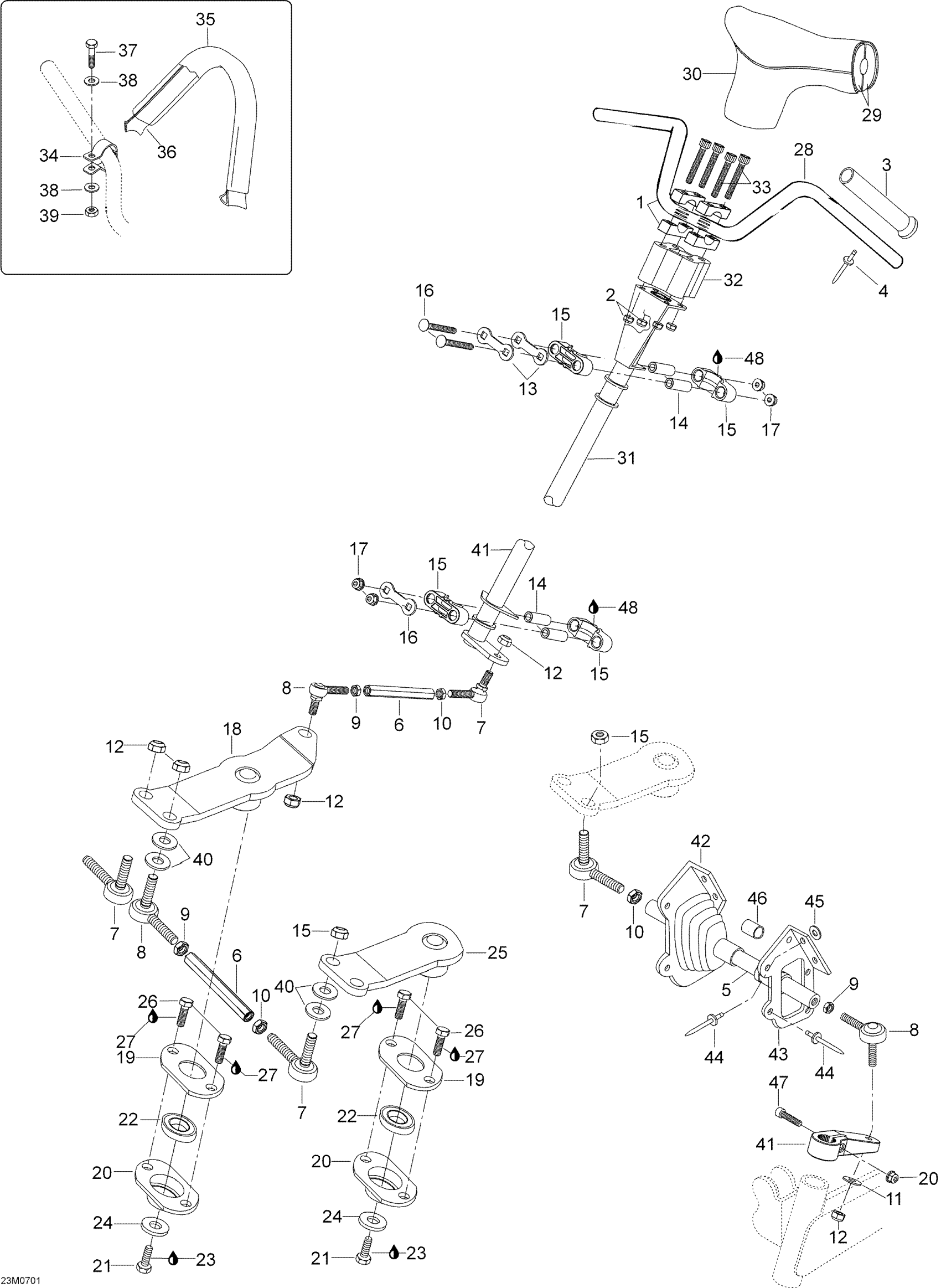

Ski-Doo Skandic SUV 550F, 2007 07- Steering System 550F SUV Diagram

#

Description
Price

1

Support Guidon *Support-Steer.

M548448

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Grip | WAKE This part replaces M5340464.

506152483

$12.17

4

Rivet

36005

$2.11

5

ROD_LINK - Call your local BRP dealership

605448307

Unavailable

6

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

7

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

8

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

9

RH NUT - Call your local BRP dealership

M33019

Unavailable

10

LH NUT - Call your local BRP dealership

M33017

Unavailable

11

WASHER M10 - Call your local BRP dealership

20005

Unavailable

12

Elastic Flange Nut M10

232501416

$1.48

13

Stopper Plate

506150600

$4.39

14

Housing Bushing

506150500

$7.99

15

Housing Half

506150400

$7.62

16

Carriage Bolt M8 X 70

207787044

$1.37

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

RH WELDED LEVER - Call your local BRP dealership

605348402

Unavailable

19

Cover

M5345380

Unavailable

20

Bearing Support

605350644

$40.99

21

Hex. Screw

M40337

Unavailable

22

Ball Bearing

293350115

$12.11

23

Loctite 271, 10 ml

293800005

$26.99

24

WASHER - Call your local BRP dealership

M5446279

Unavailable

25

LH WELDED LEVER - Call your local BRP dealership

605348403

Unavailable

26

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

HANDLE BAR - Call your local BRP dealership

605249033

Unavailable

29

Front Padding Steering

605250305

Unavailable

29

REAR PADDING STEERING - Call your local BRP dealership

605250306

Unavailable

30

Steering Cover

605254676

Unavailable

31

MAIN TUBE - Call your local BRP dealership

605250189

Unavailable

32

EXTENSION - Call your local BRP dealership

605349584

Unavailable

33

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

M40124

Unavailable

34

Black Support Plate

506152536

$9.19

35

Strap Ass'y | Package XMR

506152115

$44.49

36

Strap Ass'y | Package XMR

506152115

$44.49

37

Hex. Screw M6 X 25

207162544

$1.15

38

Flat Washer 6 mm

234061410

$1.36

39

Elastic Stop Nut M6

232561414

$0.55

40

Not Available As Spare Parts

XXX

Unavailable

41

Steering Arm

M5348261

Unavailable

42

RH Tie Rod Cap

570024800

Unavailable

42

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

43

RH Cap Plate

517241200

Unavailable

43

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

44

Black Rivet

36037

$1.48

45

Washer 5,3 mm

20008

$0.74

46

BUSHING - Call your local BRP dealership

572036500

Unavailable

47

Allen Screw M8 X 45

M40828

Unavailable

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
