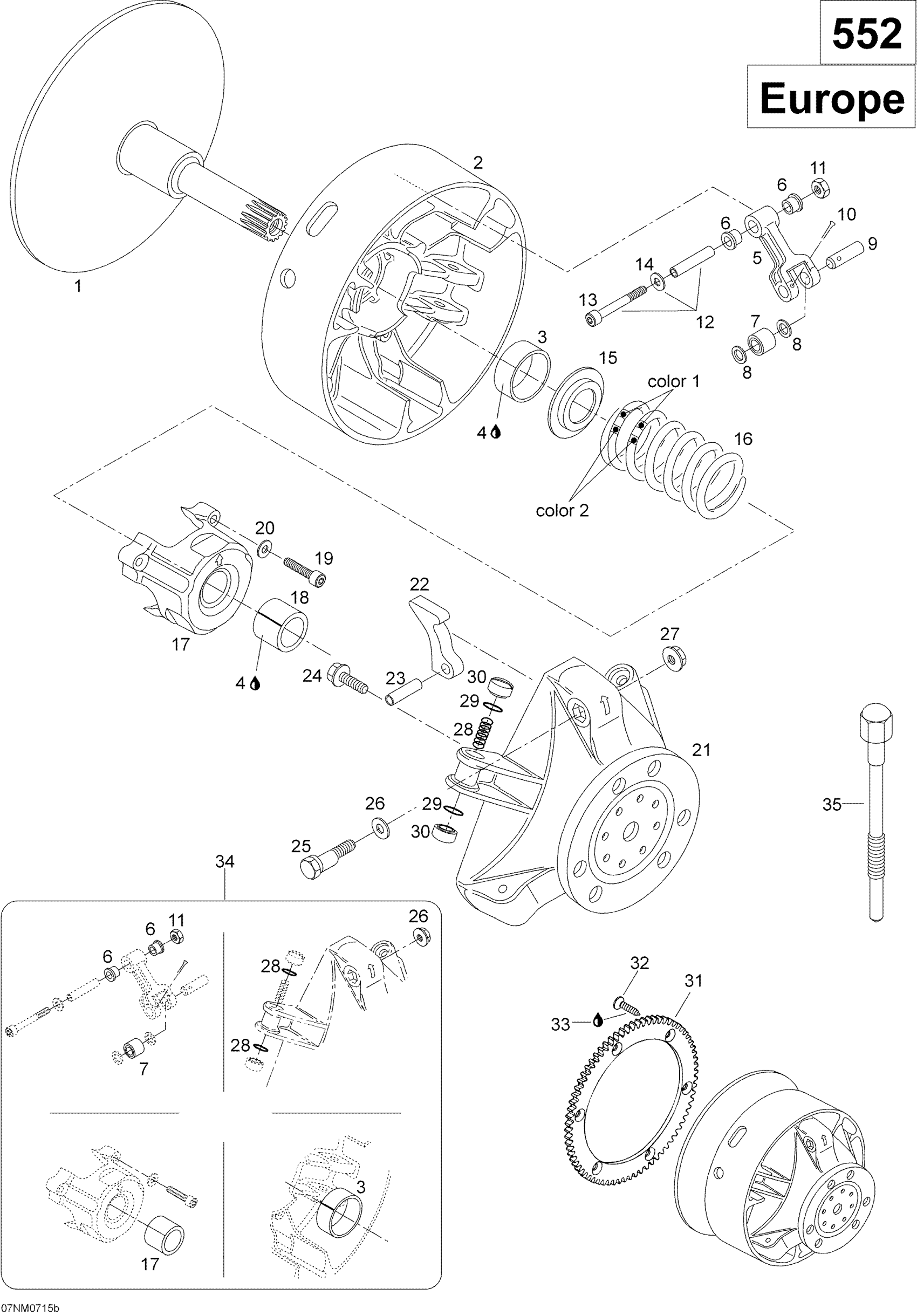

Ski-Doo Skandic SUV 550F, 2007 05- Drive Pulley 550F SUV, Europe Diagram

Not Available As Spare Part - Friction Washer

Unavailable

FIXED FLANGE - Call your local BRP dealership

417222412

Unavailable

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

Bushing

417004201

$25.99

Loctite 609, 10 ml

413703100

$26.99

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

Bushing

417004305

$11.52

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Pin

417004308

$13.99

Cotter Pin

250400060

$2.00

Elastic Stop Nut M6

232561414

$0.55

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

Flat Washer 6 mm

234061410

$1.36

Spring Seat

417222044

Unavailable

Spring, Violet/blue

415034900

$43.49

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

Bushing

417004501

$24.99

Socket Head Screw M6 X 40

250000038

$7.59

WASHER - Call your local BRP dealership

420245370

Unavailable

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

Ramp 290

417005290

Unavailable

Pin M8 X 24

732804009

Unavailable

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

Spring

417005700

$4.76

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

RING GEAR - Call your local BRP dealership

417222858

Unavailable

Hex. Screw M8 X 16

236281684

$4.12

Loctite 271, 10 ml

293800005

$26.99

Clutch Repair Kit

417006100

$189.99

Puller Inner Half

529007900

$56.99
