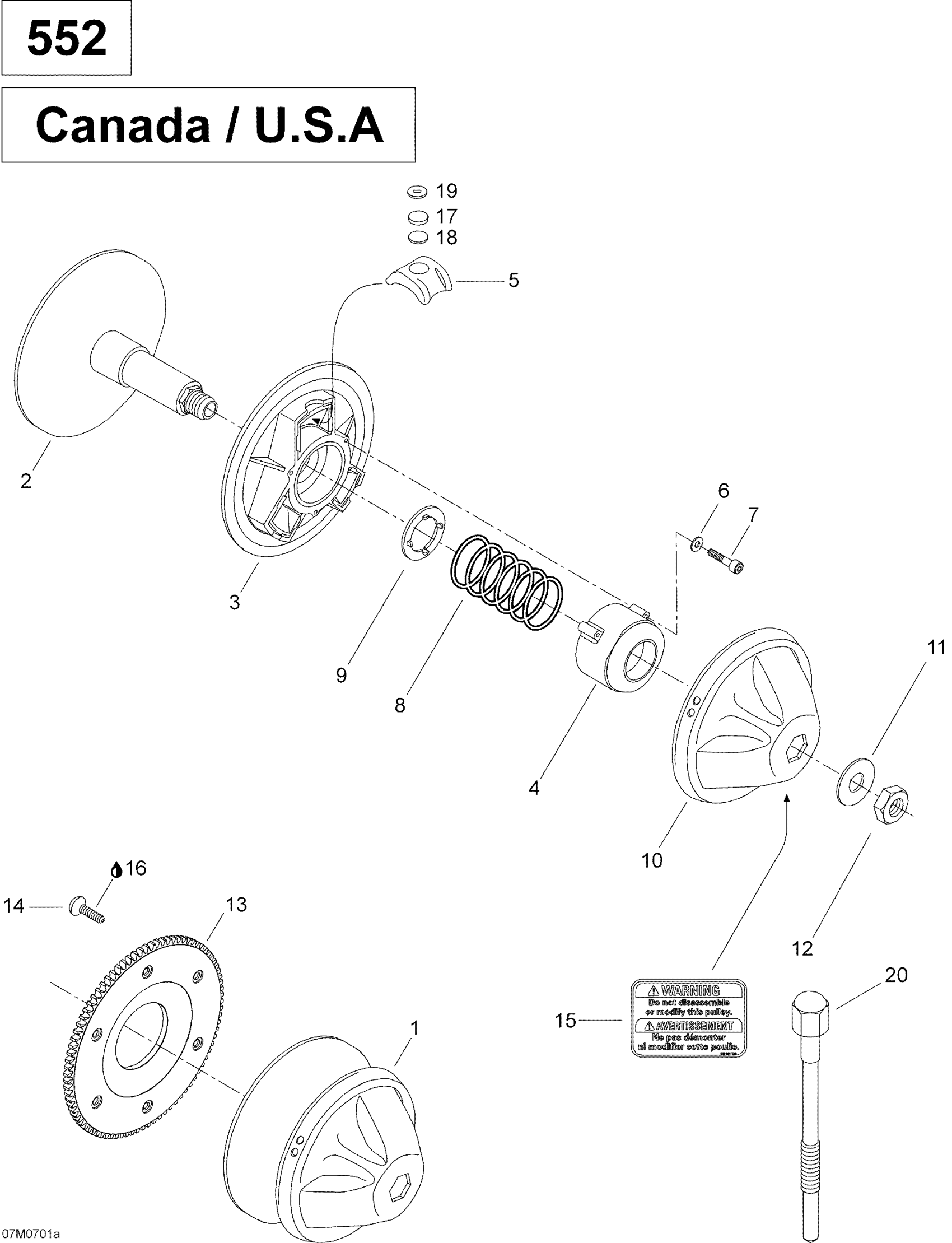

Ski-Doo Skandic SUV 550F, 2007 05- Drive Pulley 550F SUV Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Flange
M140054
Unavailable
3
SLIDING FLANGE - Call your local BRP dealership
417126692
Unavailable
4
SPRING COVER - Call your local BRP dealership
415128602
Unavailable
5
UNIT - Call your local BRP dealership | Includes 5 to 8
415129125
Unavailable
6
WASHER - Call your local BRP dealership
420245370
Unavailable
7
SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership
415128606
Unavailable
8
SPRING YELLOW/GREEN - Call your local BRP dealership
414742100
Unavailable
9
SPRING SEAT - Call your local BRP dealership
417126694
Unavailable
10
Cap
415128609
Unavailable
11
WASHER - Call your local BRP dealership
415128610
Unavailable
12
NUT - Call your local BRP dealership
417118300
Unavailable
13
Ring gear
417222861
Unavailable
15
Security Label
516001726
Unavailable
17
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
18
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417114400
Unavailable
19
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
