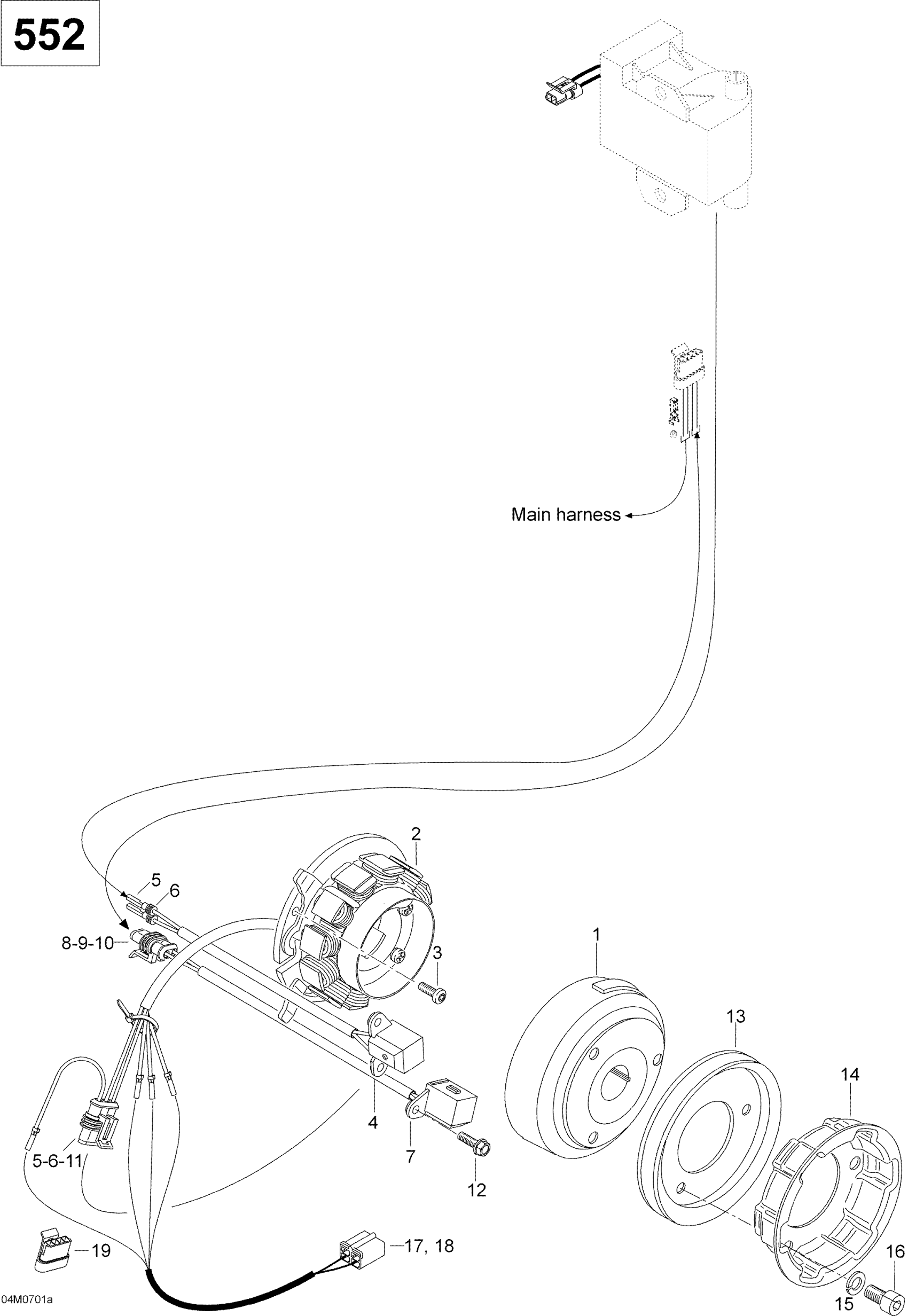

Ski-Doo Skandic SUV 550F, 2007 03- Magneto 550F SUV Diagram

#

Description
Price

—

Magneto Ducati | Includes 1 to 2

420888970

Unavailable

1

Flywheel

420889376

$494.49

2

Stator Plate A

420889369

$319.49

3

Screw

420641521

$8.57

4

Pick-Up

420665163

$164.99

5

Female Terminal

278001014

$3.28

6

Wire Seal

278001013

$3.28

7

PICK-UP - Call your local BRP dealership

420665160

Unavailable

8

Female Housing, 2 Circuits

409209500

$15.27

9

Female Terminal

278001014

$3.28

10

Wire Seal

278001013

$3.28

11

Female Housing, 3 Circuits

409209600

$35.99

12

Taptite Screw M5 X 16

420941928

Unavailable

13

V-Belt Pulley

420980486

$37.99

14

Rope Sheave

420852414

$29.49

15

Lock Washer

420845311

$1.90

16

Torx Flange Screw M8 X 16

420440852

$4.12

17

Female Terminal Housing, 4 Circuits

278001473

$26.99

18

Female Lock, 4 Circuits

278001474

$3.49

19

Male Housing

M42618

Unavailable
