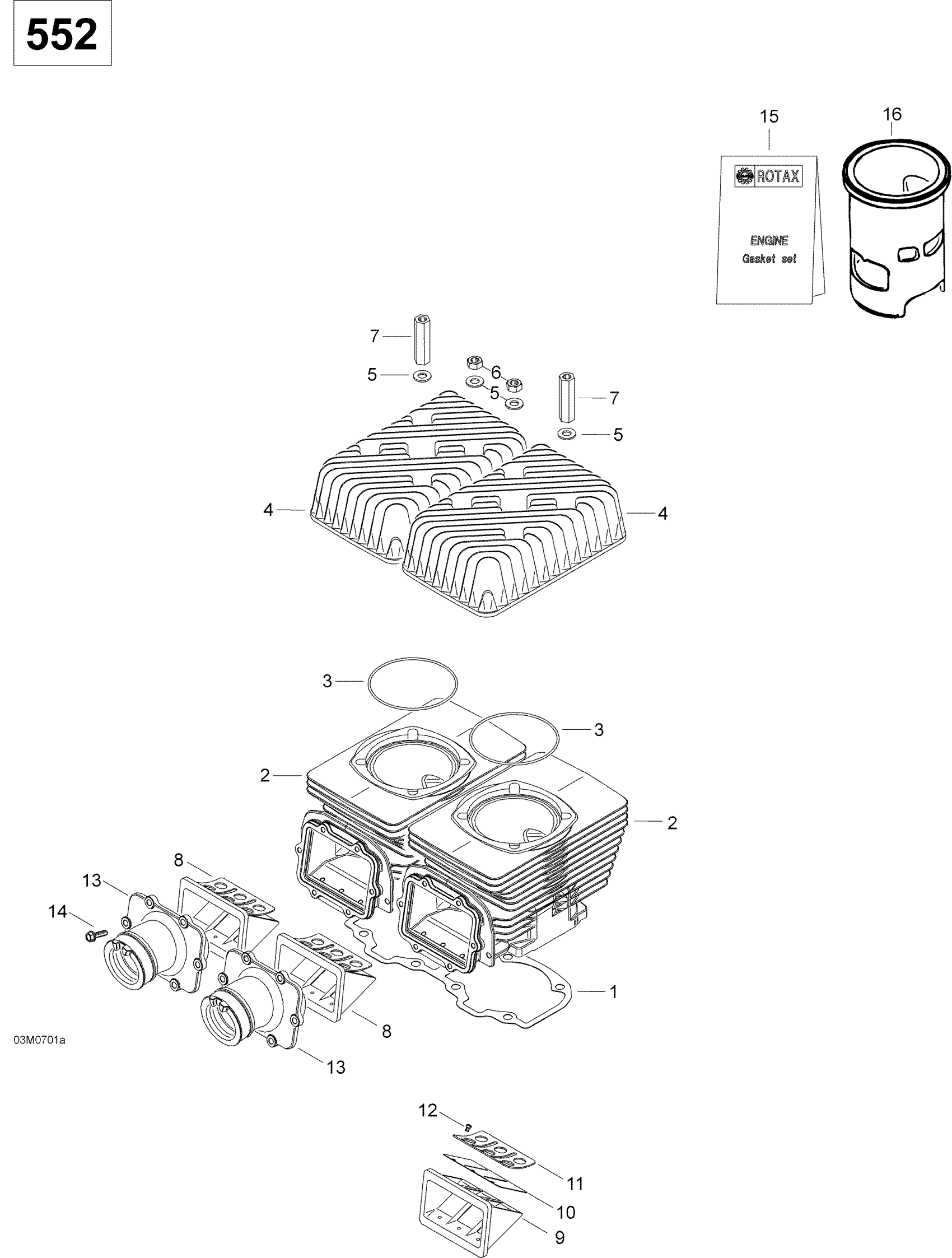

Ski-Doo Skandic SUV 550F, 2007 Cylinder and Cylinder Head 550F SUV Diagram

#

Description

Price

1

Gasket 0.3

420950910

$15.35

1

Gasket 0.4

420950911

$17.66

1

Gasket 0.6

420950912

$17.66

2

Cylinder This part replaces 420923978.

420923974

$409.99

2

REBUILD-CYLINDER 552 - Call your local BRP dealership

421000600

Unavailable

3

O-Ring This part replaces 420850540.

293300026

$2.67

4

HEAD CYLINDER - Call your local BRP dealership

420923595

Unavailable

5

Flat Washer 8.4 mm

420250315

$1.09

6

Hex. Nut M8

232081414

$0.60

7

Distance Nut M8 X 47

420842204

$14.54

8

Reed Valve Ass'y

420924519

$50.74

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Reed Pedal

420924532

$43.82

11

Reed Pedal Stop

420924539

$11.52

12

Phillips Screw M3 X 5

420941215

$1.42

13

Carburetor Socket

420867105

$63.82

14

Taptite Screw M5 X 16

420941928

Unavailable

15

Gasket Set, Engine

420889911

$89.20

16

Not Available As Spare Part - Friction Washer

Unavailable
