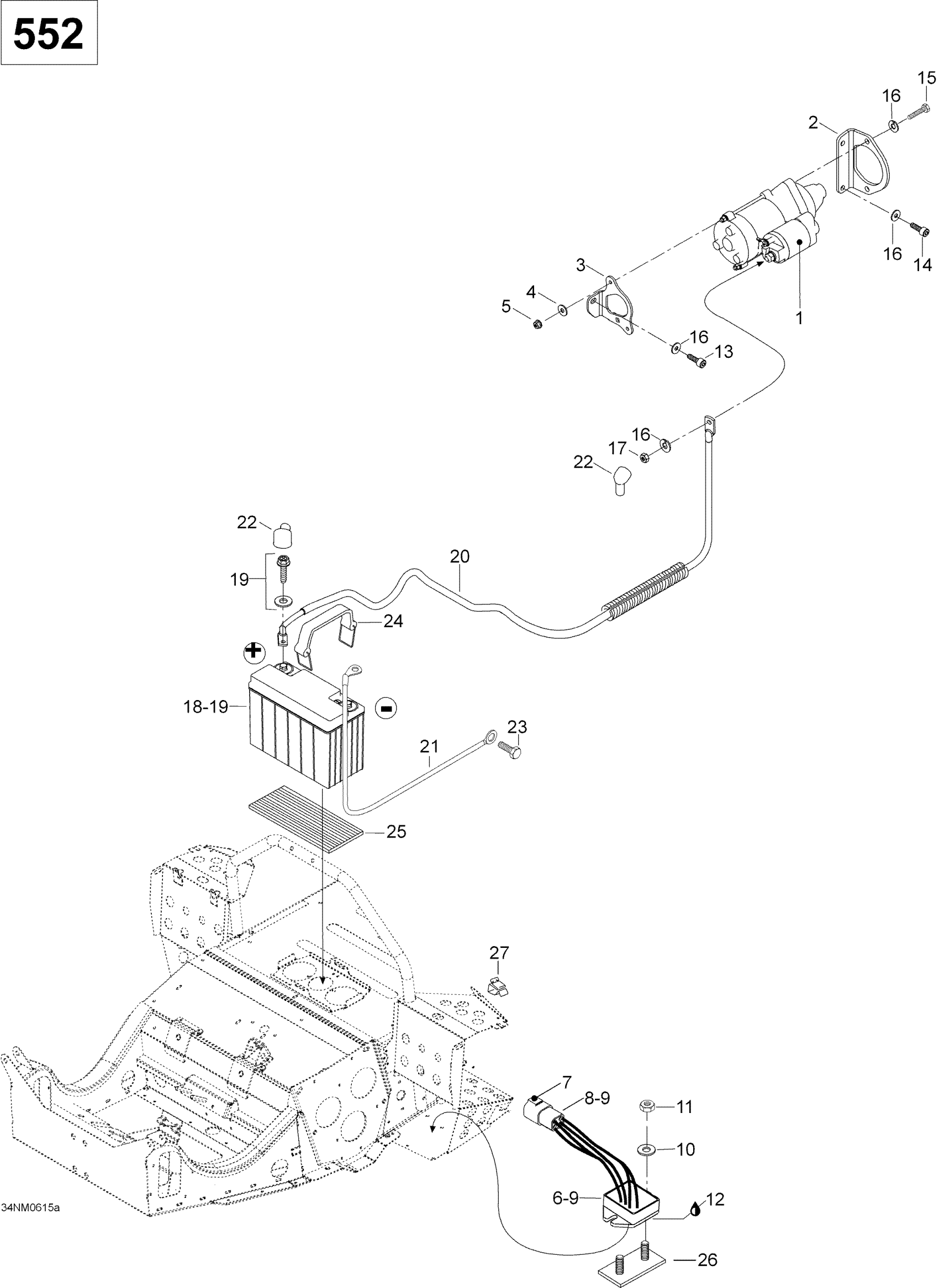

Ski-Doo Skandic SUV 550F, 2006 10- Battery And Starter 552 Diagram

#

Description
Price

1

STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A

515175795

Unavailable

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

$299.99

2

STARTER BRACKET - Call your local BRP dealership | Canada / U.S.A

515175652

Unavailable

2

STARTER BRACKET, P.T.O. - Call your local BRP dealership

420951415

Unavailable

3

STARTER SUPPORT MAG SIDE - Call your local BRP dealership | Canada / U.S.A

515175633

Unavailable

3

STARTER BRACKET, M.A.G. - Call your local BRP dealership

420951426

Unavailable

4

Washer 5,3 mm

20008

$0.74

5

Elastic Stop Nut M5

232551414

$0.87

6

Voltage Regulator Ass'y

515175939

$209.99

7

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

8

Male Terminal

515175568

$9.12

9

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

10

Flat Washer 6 mm

234062410

$0.77

11

Elastic Stop Nut M6

232561414

$0.55

12

Grease Tube Lmz, 400 G

413707500

Unavailable

13

Hex. Screw M8 X 16

M40066

Unavailable

14

Socket Head Screw M8 X 20

205082044

$1.15

15

Hex. Screw M8 X 20

207182044

$0.74

16

Lock Washer 8 mm

234181401

$0.92

17

NUT - Call your local BRP dealership

M33003

Unavailable

18

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

19

Battery Bolt Kit

250000282

$7.29

20

BATTERY WIRE - Call your local BRP dealership

605349434

Unavailable

21

Ground Wire

M549887

Unavailable

22

Protection Cap

570151000

$21.99

23

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

24

Battery Strap

515176044

$18.49

25

BATTERY CARPET - Call your local BRP dealership

605350237

Unavailable

26

SUPPORT - Call your local BRP dealership

M5448286

Unavailable

27

Clip

414227300

$1.67
