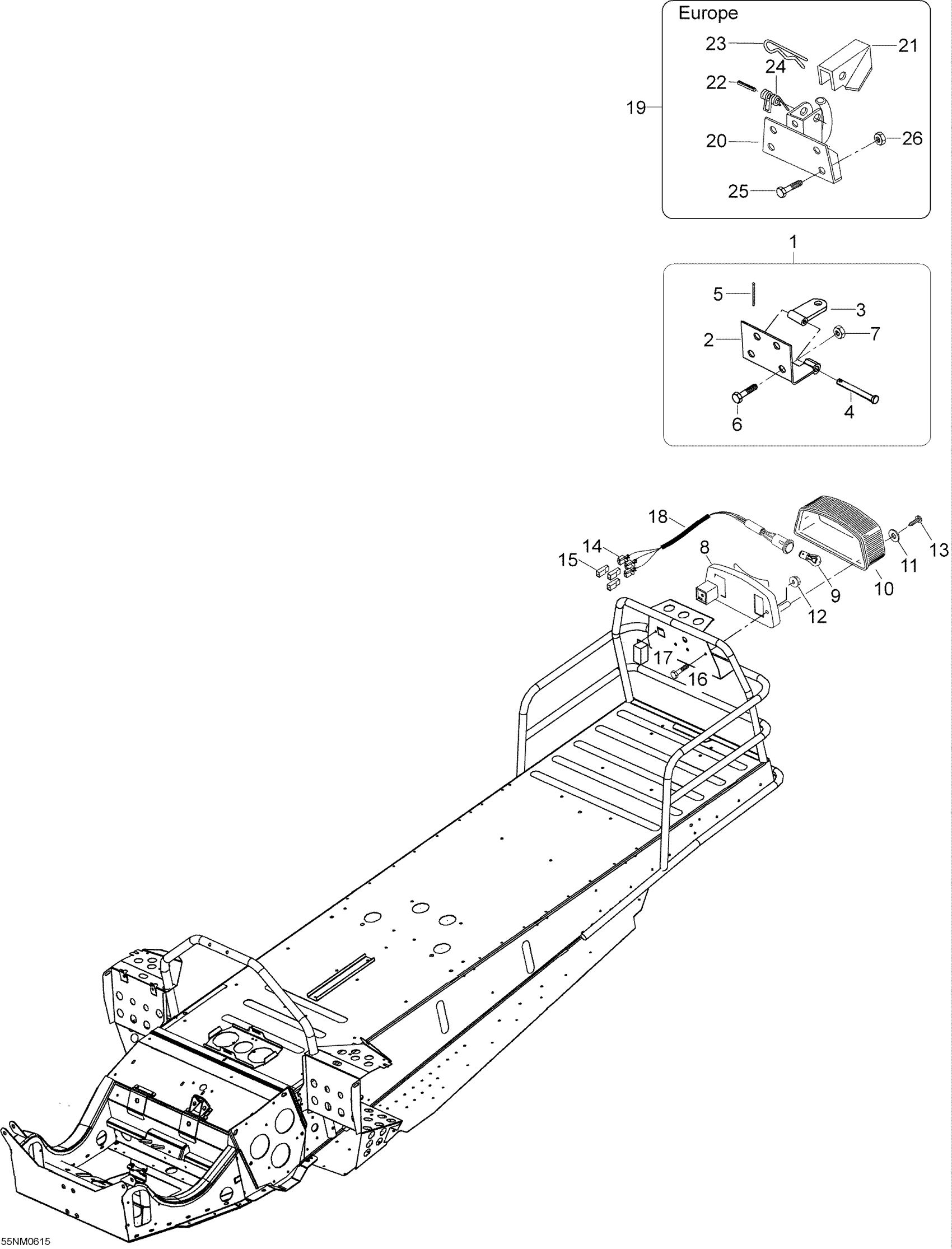

Ski-Doo Skandic SUV 550F, 2006 Luggage Rack Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$75.34

3

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

4

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

5

Cotter Pin

41031

$6.07

6

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

7

Hex. Elastic Stop Nut M8

232581414

$0.54

8

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

9

Bulb

520000758

$8.60

10

Lens

414513700

$26.09

11

Washer - Call your local BRP dealership

414516400

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

14

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

15

Female Terminal Housing, 1 Circuit

409010400

$7.25

16

Hex. Screw M6 X 30

207063044

$1.12

17

Adaptor

M5345713

Unavailable

18

Housing

M39023

Unavailable

19

HITCH ASS'Y - Call your local BRP dealership

5344156

Unavailable

20

HITCH ASS'Y - Call your local BRP dealership

5344156

Unavailable

21

Lock | EU

5440767

Unavailable

22

Pin

41012

$5.06

23

Hair pin

41029

$4.15

24

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

Unavailable

25

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

26

Hex. Elastic Stop Nut M8

232581414

$0.54
