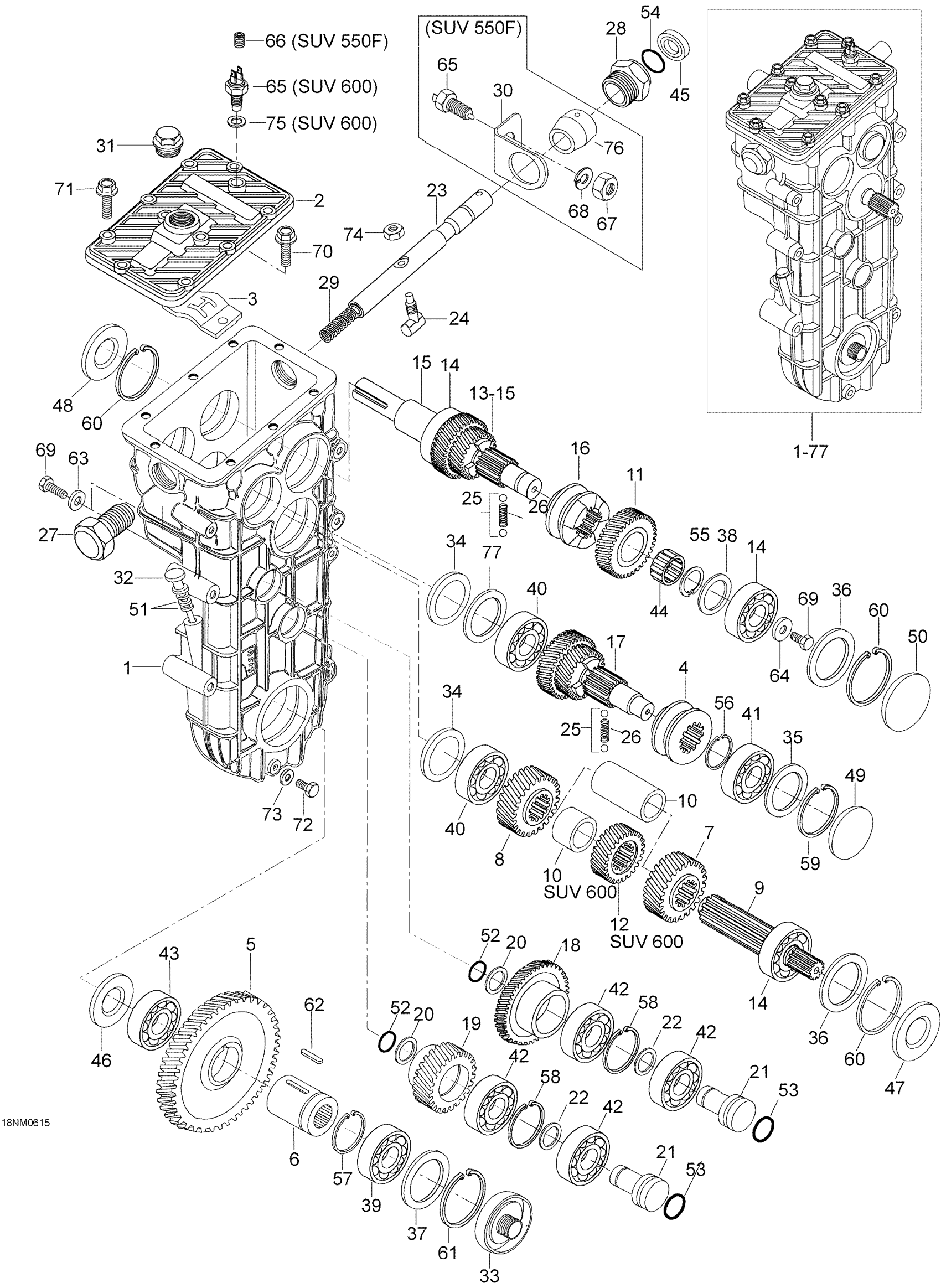

Ski-Doo Skandic SUV 550F, 2006 05- Transmission , 550F SUV Diagram

#

Description
Price

1

Transmission Ass'y | SUV 550, Includes 1 to 77

M870156272

Unavailable

1

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

Unavailable

2

COVER - Call your local BRP dealership

M875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

Wheel Clutch

M875156131

Unavailable

5

Sprocket 53 Th

M875156114

Unavailable

6

SHAFT - Call your local BRP dealership

M875156218

Unavailable

7

Sprocket 29Th | SUV 550

M875156051

Unavailable

8

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

Unavailable

9

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

Unavailable

10

SLEEVE - Call your local BRP dealership

M875156087

Unavailable

11

Sprocket 28 Th

M875156115

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

Unavailable

14

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

15

Sleeve

M875156089

Unavailable

16

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

17

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

Unavailable

18

SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.

875156050

Unavailable

19

SPROCKET 31 TH - Call your local BRP dealership

M875156049

Unavailable

20

Shim This part replaces M875156094.

875156094

$21.99

21

Axe *Shaft This part replaces M875147204.

875147204

$132.49

22

Washer

M875147205

Unavailable

23

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

24

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

25

Ball This part replaces M616810064.

616810064

$26.99

26

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

Unavailable

27

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

Unavailable

28

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

29

Spring This part replaces M875156078.

875156078

$109.99

30

BRACKET - Call your local BRP dealership

M5346698

Unavailable

31

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

32

Filler Cap Ass'y

M875156097

Unavailable

33

Bouchon *Plug

M875156104

Unavailable

34

Plug This part replaces M875152953.

875152953

$42.99

35

Shim

M617394252

Unavailable

36

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

37

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

Unavailable

38

WASHER-AXIAL - Call your local BRP dealership

M616092542

Unavailable

39

BALL BEARING - Call your local BRP dealership

M610060080

Unavailable

40

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

41

Bearing - Call your local BRP dealership This part replaces M6304.

6304

$41.99

42

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

Unavailable

43

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

44

Needle bearing This part replaces M611002529.

611002529

$27.49

45

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

46

Oil seal This part replaces M614102852.

614102852

$25.99

47

Oil seal This part replaces M614102562.

614102562

$51.99

48

Oil seal This part replaces M614103562.

614103562

$52.99

49

Plug This part replaces M614100052.

614100052

$28.49

50

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

51

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

Unavailable

52

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

53

O-ring This part replaces M614602431.

614602431

$11.60

54

O-ring This part replaces M614601523.

614601523

$11.60

55

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

Unavailable

56

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

$12.49

57

CIRCLIP - Call your local BRP dealership

M617300040

Unavailable

58

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

Unavailable

59

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$8.11

60

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

$12.99

61

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

Unavailable

62

KEY - Call your local BRP dealership

M603345080

Unavailable

63

WASHER - Call your local BRP dealership

M501150902

Unavailable

64

WASHER - Call your local BRP dealership

M875156112

Unavailable

65

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

Unavailable

66

Threated Plug

M640025012S

Unavailable

67

NUT - Call your local BRP dealership

M33021

Unavailable

68

WASHER - Call your local BRP dealership

M20016

Unavailable

69

Hex. Screw M8 X 20

207182044

$0.74

70

Screw

M534801362

Unavailable

71

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

72

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

73

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

74

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

75

Shim

M617391218

Unavailable

76

SLEEVE - Call your local BRP dealership

M5446699

Unavailable

77

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

$15.49
