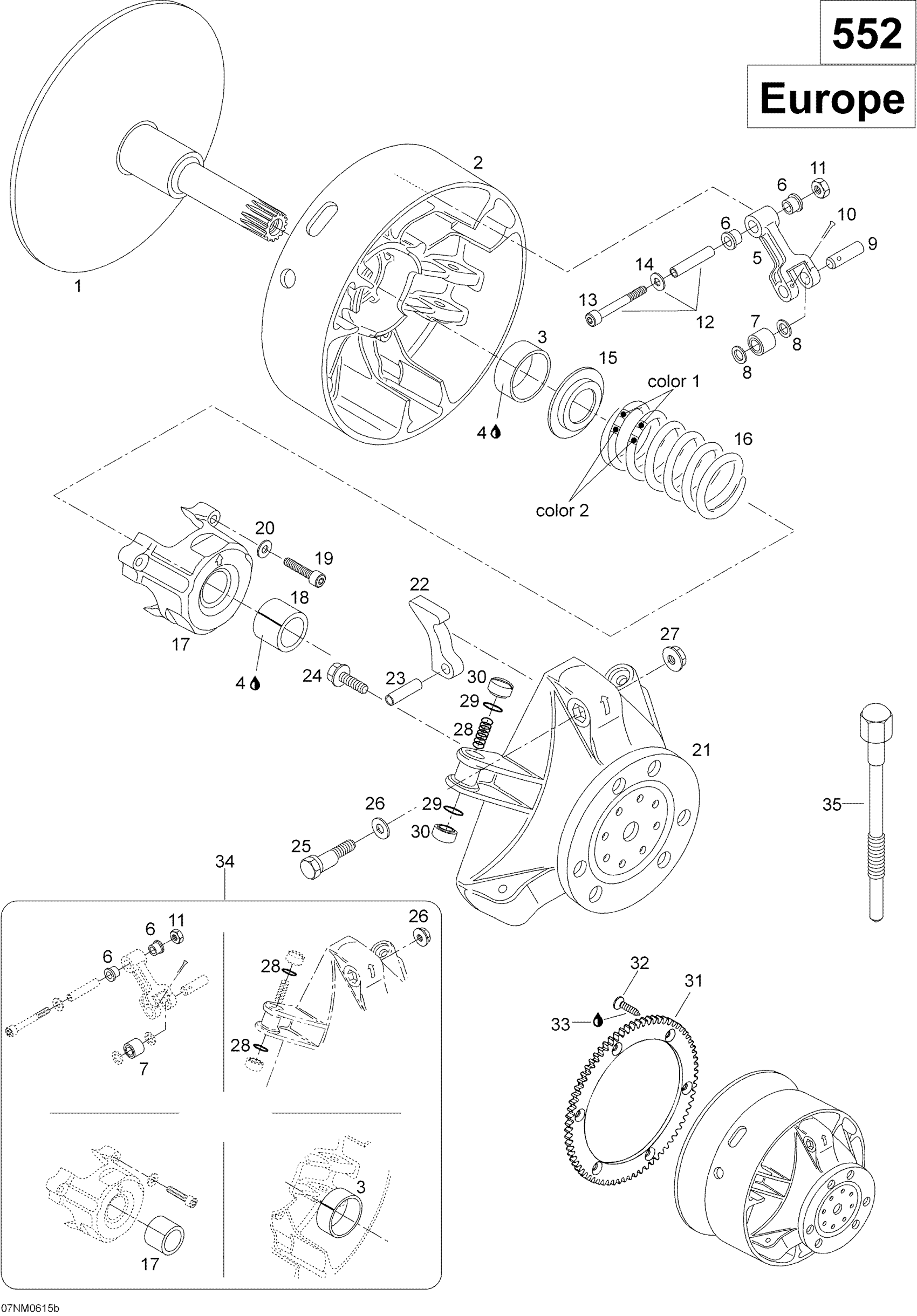

Ski-Doo Skandic SUV 550F, 2006 Drive Pulley 552, Europe Diagram

#

Description
Price

1

Drive pulley ass'y | Includes 1 to 33

605614015

Unavailable

1

FIXED FLANGE - Call your local BRP dealership

417222412

Unavailable

2

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

3

Bushing

417004201

$23.10

4

Loctite 609, 10 ml

413703100

$23.85

5

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

6

Bushing

417004305

$8.76

7

Roller

417222947

$19.37

8

Stopper Washer

417004302

$15.64

9

Pin

417004308

$12.79

10

Cotter Pin

250400060

$1.84

11

Elastic Stop Nut M6

232561414

$1.78

12

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

13

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

14

Flat Washer 6 mm

234061410

$1.19

15

Spring Seat

417222044

Unavailable

16

Spring, Violet/blue

415034900

$41.01

17

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

18

Bushing

417004501

Unavailable

19

Socket Head Screw M6 X 40

250000038

$6.33

20

WASHER - Call your local BRP dealership

420245370

Unavailable

21

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

22

Ramp 290

417005290

Unavailable

23

Pin M8 X 24

732804009

Unavailable

24

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

25

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

26

Washer

417005600

$3.75

27

Hex. Flange Nut M6

233061414

$1.54

28

Spring

417005700

$4.51

29

O-Ring

732401030

$0.93

30

Slider Shoe This part replaces 420460045.

417223021

$5.99

31

RING GEAR - Call your local BRP dealership

417222858

Unavailable

32

Hex. Screw M8 X 16

236281684

$3.88

33

Loctite 271, 10 ml

293800005

$23.85

34

Clutch Repair Kit

417006100

$170.12

35

Puller Inner Half

529007900

$58.99
