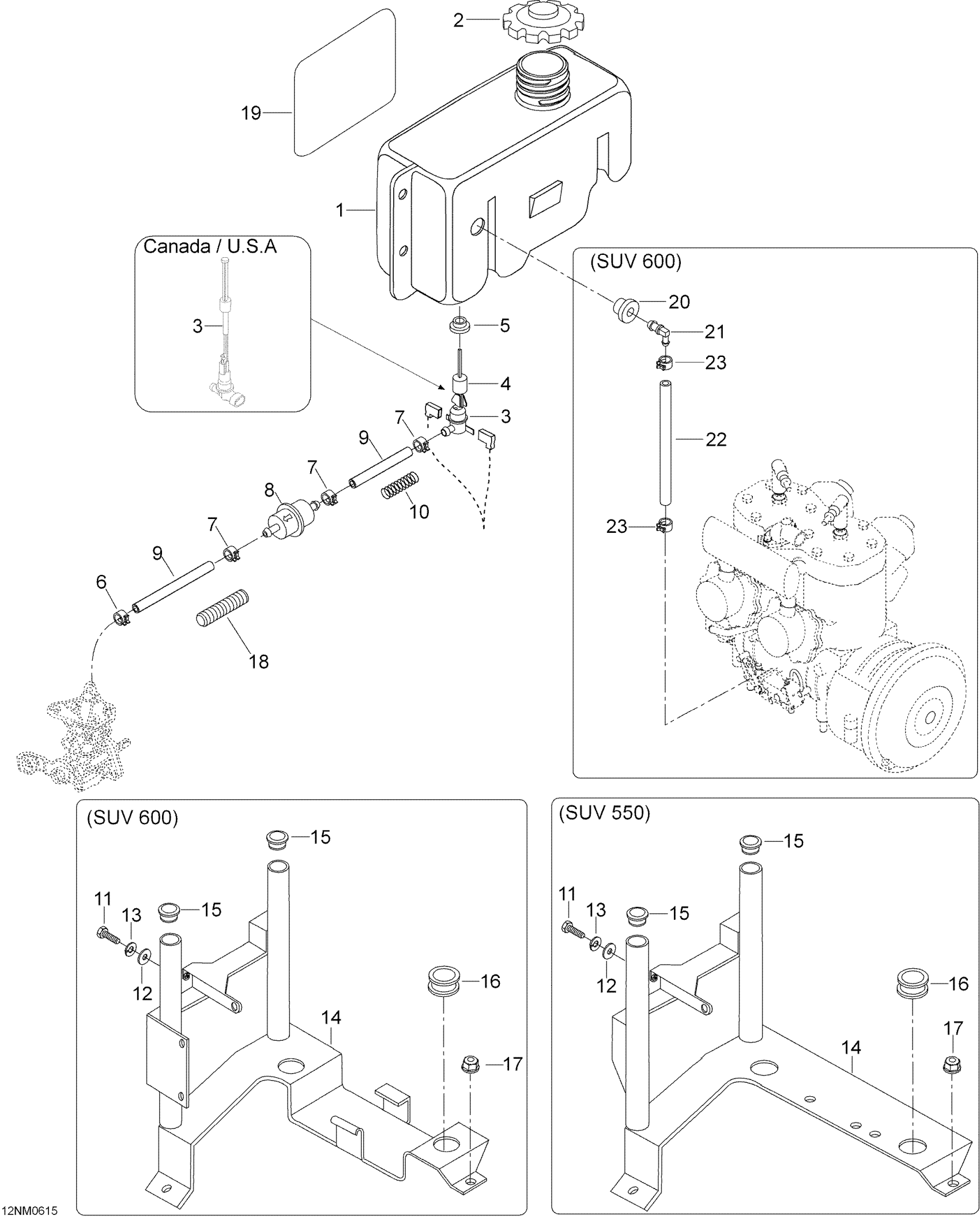

Ski-Doo Skandic SUV 550F, 2006 02- Oil System , 550F SUV Diagram

#

Description
Price

1

Oil Tank

M5142700

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Insulating Ring

570023000

$5.61

6

Spring Clamp

414420700

$0.72

7

Spring Clamp

414415200

$0.88

8

Filter

414536500

$4.02

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

10

SPRING - Call your local BRP dealership

M25005

Unavailable

11

Screw

M40322

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

Oil Tank Support | SUV 550

605350521

Unavailable

15

PLUG - Call your local BRP dealership

M28136

Unavailable

16

Grommet This part replaces M28022.

28022

$15.29

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

HOUSING - Call your local BRP dealership

M28015

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable
