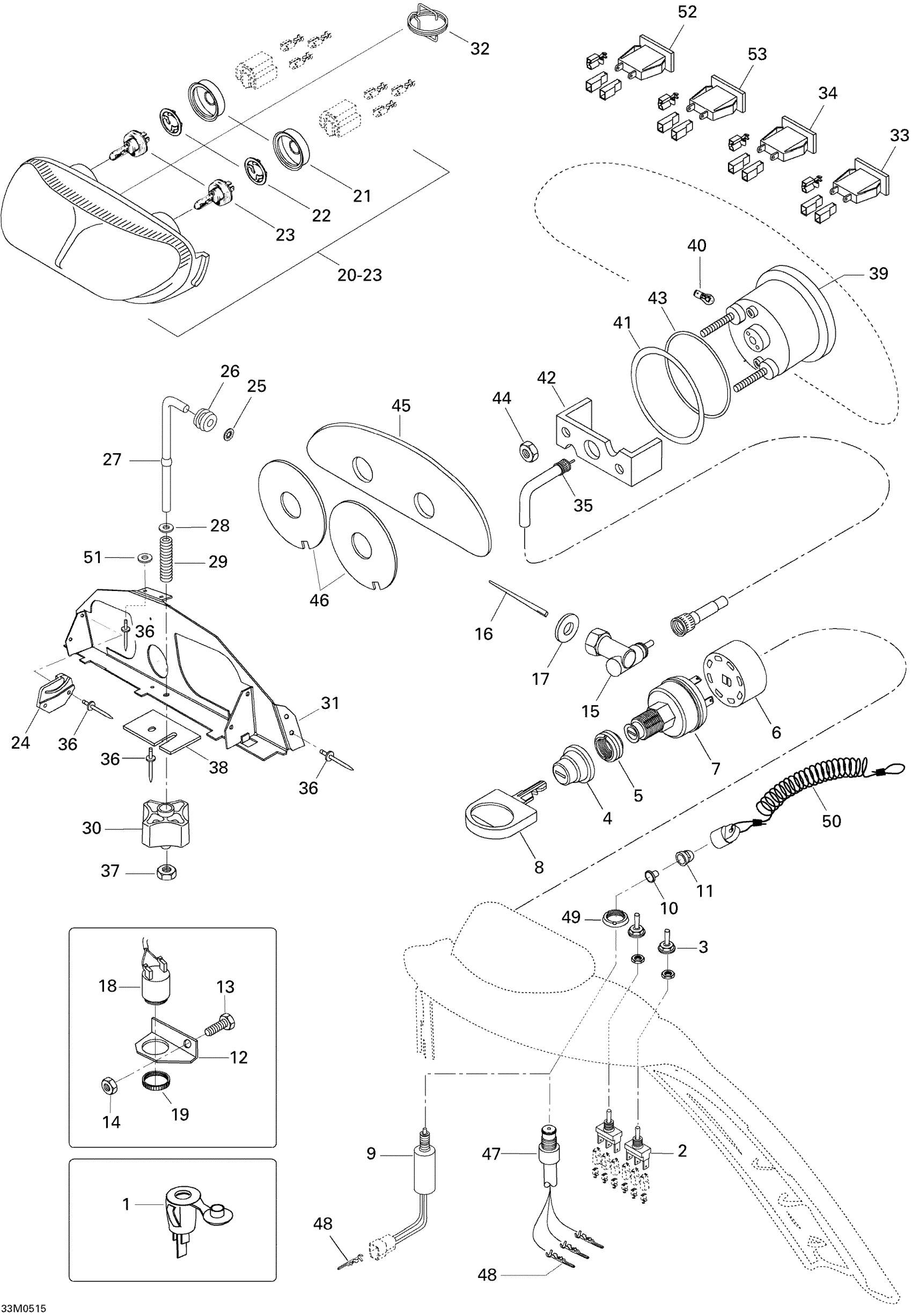

Ski-Doo Skandic SUV 550F, 2005 10- Electrical System 550F SUV Diagram

#

Description
Price

1

DC Outlet

710001248

$37.99

2

Switch (Heating Grip) | FREERIDE

410107300

$35.99

3

Switch Cover

515175281

$15.99

4

Switch Boot

570013700

$11.49

5

FACE NUT - Call your local BRP dealership

410112100

Unavailable

6

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

7

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

8

Blank Key

415129350

$26.49

9

Brake Switch

515175653

$19.49

10

Plunger Cap

570151100

$9.85

11

Switch Nut

515145900

$12.12

12

Support

M549459

Unavailable

13

Hex. Screw M6 X 16

207161644

$0.74

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$139.99

16

Tige Vitesse *Branch-Key This part replaces M45009.

45009

$30.49

17

Washer

M5444186

Unavailable

18

Back-Up Alarm

414792102

$149.99

19

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

20

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

21

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

22

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

23

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

24

RH Support

517289300

Unavailable

24

LH Support

517289400

Unavailable

25

Push Nut

732610072

$2.19

26

Grommet - Call your local BRP dealership

415100800

Unavailable

27

ADJUSTER ROD - Call your local BRP dealership

M5448100

Unavailable

28

Flat Washer 6 mm

234061410

$1.36

29

SPRING - Call your local BRP dealership

415100600

Unavailable

30

Handle - Call your local BRP dealership

515175548

Unavailable

31

Support

M5248092

Unavailable

32

Spring

M5445737

Unavailable

33

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

34

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

35

Speedometer Cable This part replaces M5344162.

5344162

$81.99

36

Rivet

36005

$2.11

37

Elastic Stop Nut M6

232561414

$0.55

38

Washer 6mm

M5448320

Unavailable

39

Speedometer, Kmh

515175335

Unavailable

39

Speedometer, Mph

515175336

Unavailable

40

Bulb 12V-1.7W

515175929

Unavailable

41

Washer

517258500

Unavailable

42

Case Holder

414806500

Unavailable

43

O-Ring

414807100

Unavailable

44

NUT M5 - Call your local BRP dealership

M33062

Unavailable

45

Foam

M5247817

Unavailable

46

Plastic Plate

M5447818

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Cap Ass'y

515178283

$38.99

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable
