Partiron

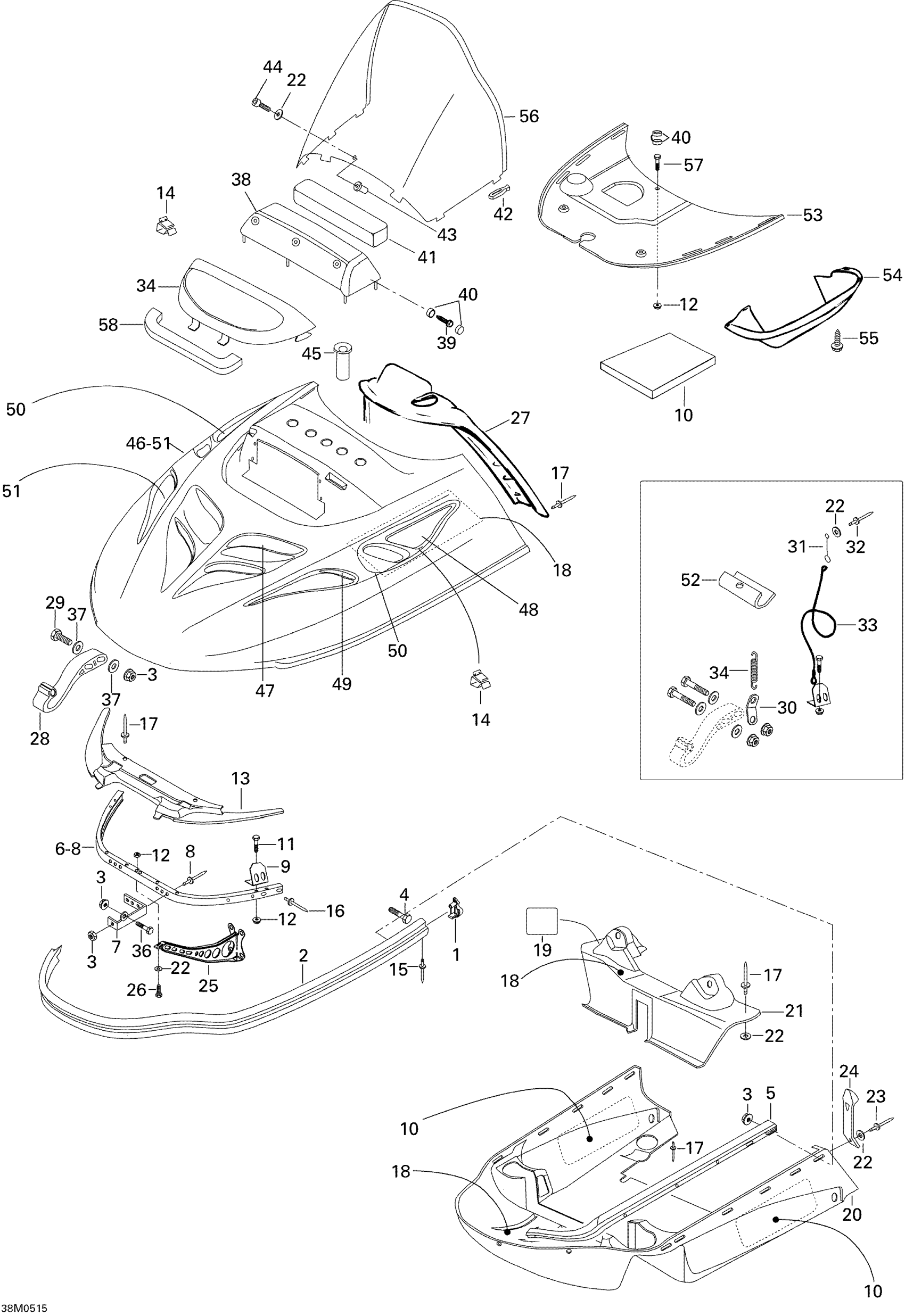

Ski-Doo Skandic SUV 550F, 2005 Cab And Console 550F SUV Diagram

#

Description
Price

1

RH Cap

M549096R

Unavailable

1

LH Cap

M549096L

Unavailable

2

Front Bumper

M5242798

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Vis *Screw

M40078

Unavailable

5

RH Hood Guide

M5242804

Unavailable

5

LH Hood Guide

M5242803

Unavailable

6

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

$179.99

7

Hinge

M5342234

Unavailable

7

Hinge

M5342345

Unavailable

8

Rivet

36108

$1.90

9

HOOD GUIDE - Call your local BRP dealership

605449350

Unavailable

9

Hood Guide

M5443217

Unavailable

10

Acoustic Foam

414631900

Unavailable

11

Screw M5 X 16

M40247

Unavailable

12

NUT M5 - Call your local BRP dealership

M33062

Unavailable

13

COVER - Call your local BRP dealership

605252352

$109.99

14

Clip

414227300

$1.67

15

RIVET - Call your local BRP dealership

M36097

Unavailable

16

Black Rivet

36037

$1.48

17

Black, Rivet

M36036

$1.69

18

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

19

ISOLATION SHEET - Call your local BRP dealership

605449182

Unavailable

20

BOTTOM PAN, SUV FC - Call your local BRP dealership | SUV 550

605152264

Unavailable

21

Cover

605248597

Unavailable

22

Washer 5,3 mm

20008

$0.74

23

Rivet This part replaces M36009.

36009

$1.15

24

Hood Latch

5342952

$24.49

25

Painted Central Support

M5245977

Unavailable

26

Screw

M40308

Unavailable

27

Dash | SUV 550

605148419

Unavailable

28

Hinge This part replaces M5343075.

5343075

$36.99

29

SCREW - Call your local BRP dealership

M40193

Unavailable

30

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

31

CABLE KEEPER - Call your local BRP dealership | SUV 550

605449395

Unavailable

32

Rivet

36005

$2.11

33

Retainer Cable | 550 SUV

M5346947

Unavailable

34

Spring This part replaces M5442675.

5442675

$14.99

35

Molding Lamp

M5246396

Unavailable

36

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

37

Flat Washer 6 mm

234062410

$0.77

38

INTAKE COVER - Call your local BRP dealership

605149010

Unavailable

39

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

40

COVER - Call your local BRP dealership

M282000

Unavailable

41

FILTER - Call your local BRP dealership

605349056

Unavailable

42

Windshield Latch

570023800

$4.49

43

Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055.

28055

$7.51

44

Screw

M40156

Unavailable

45

SHORT TUBE - Call your local BRP dealership

605449084

Unavailable

46

Hood Ass'y | SUV 550 (Yellow), Includes 25 to 29

605149586

Unavailable

46

HOOD ASS'Y - Call your local BRP dealership | SUV 550 (Black), Includes 25 to 29

605150039

Unavailable

47

Front Grill

M5142669

Unavailable

48

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

48

LH Upper Grill | SUV 550

M5242670

Unavailable

49

RH Lower Grill

M5242672

Unavailable

49

LH Lower Grill

M5342673

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Air Duct

M5246742

Unavailable

54

Air Duct | SUV 550

M5146986

Unavailable

55

Black, Dart

414644300

$0.98

56

WINDSHIELD - Call your local BRP dealership

M5147892

Unavailable

57

Screw M5X25

M40179

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable
