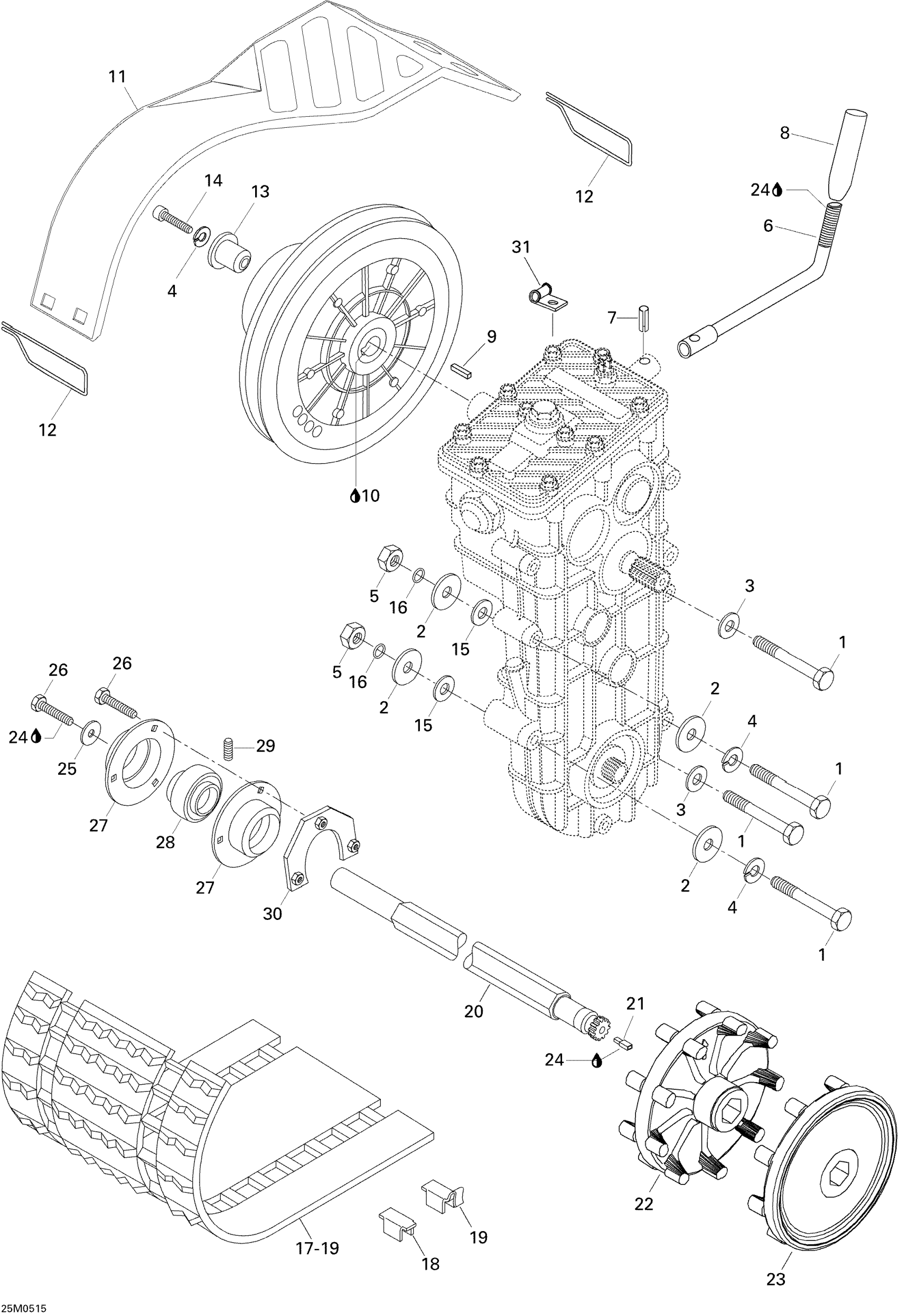

Ski-Doo Skandic SUV 550F, 2005 07- Drive Axle, Track And Belt Guard 550F SUV Diagram

Screw M8 X 80

M40012

Unavailable

Flat Washer 8 mm

234082410

$1.47

Flat Washer 8 mm

234081410

$0.83

Lock Washer 8 mm

234181401

$0.92

Hex. Elastic Stop Nut M8

232581414

$0.56

Bras Vitesse *Arm-Shifter

M5340902

Unavailable

Pin Spring

M41008

Unavailable

Shift button This part replaces M28247.

28247

$30.49

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

Belt Guard | SUV 550

605150015

Unavailable

Pin This part replaces M5442726.

5442726

$7.51

Sleeve This part replaces M5443201.

5443201

$47.99

Socket Head Screw M8 X 45

M40286

Unavailable

M8 Washer This part replaces M20077.

20077

$1.48

O-RING - Call your local BRP dealership

506151140

Unavailable

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1.00

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

CLEAT - Call your local BRP dealership

M5318322

Unavailable

Drive Axle This part replaces M5345117.

5345117

$269.99

Speed Drive Insert This part replaces M542013.

542013

$8.59

SPROCKET - Call your local BRP dealership

414931800

Unavailable

HALF SPROCKET - Call your local BRP dealership

415067400

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Washer

M546336

Unavailable

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

Bearing House This part replaces M534430.

534430

$23.99

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

Fasten Ring Weld This part replaces M546421.

546421

$40.99

Not Available As Spare Parts

XXX

Unavailable
