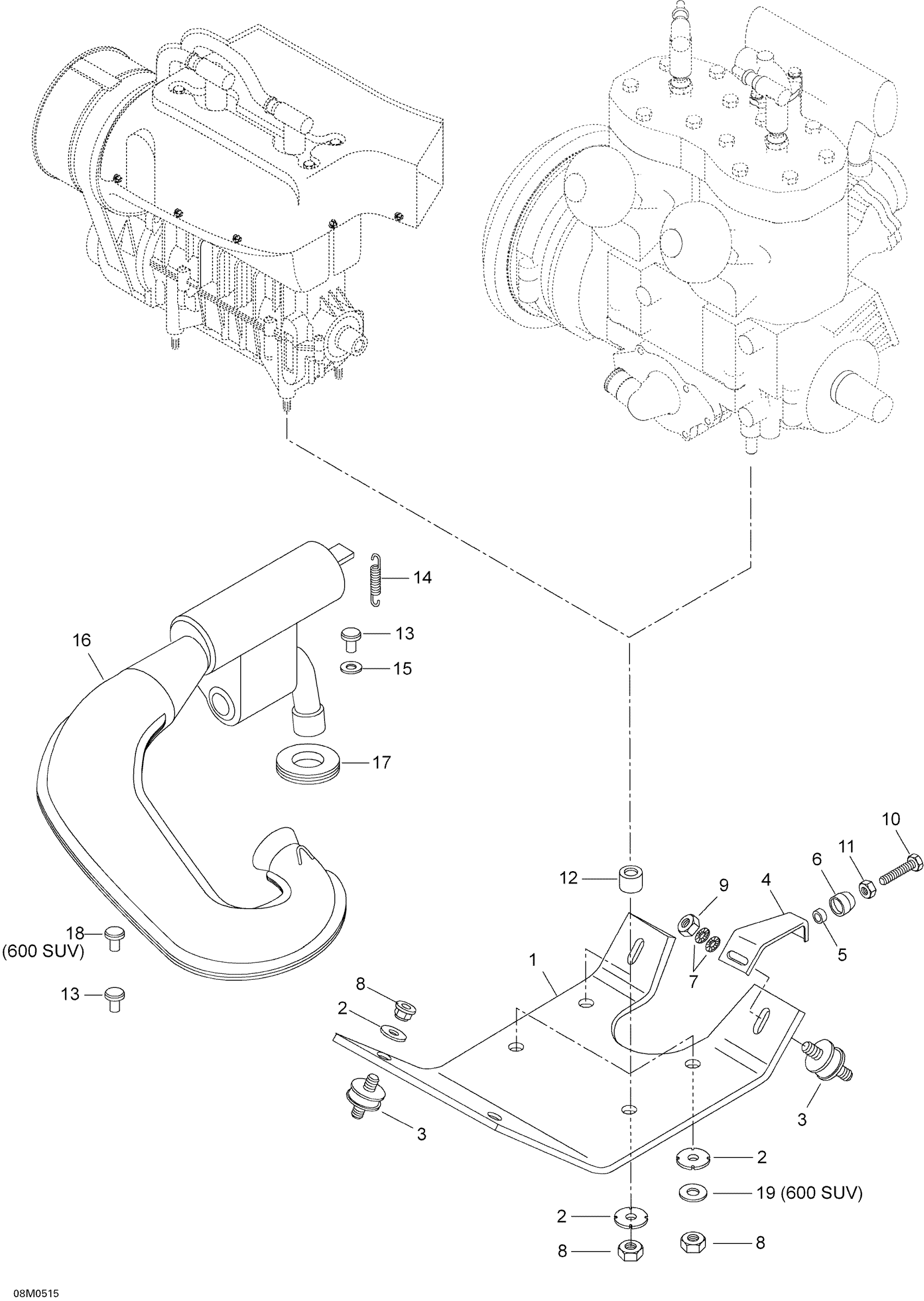

Ski-Doo Skandic SUV 550F, 2005 01- Engine And Engine Support, 550F SUV Diagram

#

Description
Price

1

ENGINE SUPPORT - Call your local BRP dealership

605249349

Unavailable

2

Lock Washer

512056700

$3.17

3

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

4

Support

M539902

Unavailable

5

Rubber Washer

M2846014

Unavailable

6

SLEEVE - Call your local BRP dealership

605449240

Unavailable

7

Lock Washer D10

20068

$2.00

8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

9

Hex. Nut M10 X 1.5

232006414

$1.37

10

Hex. Screw M8 X 25

M40121

Unavailable

11

NUT - Call your local BRP dealership

M33003

Unavailable

12

SLEEVE - Call your local BRP dealership

M5446347

Unavailable

13

Rubber Bumper

514053654

$50.99

14

Spring This part replaces 420938795.

420938796

$9.27

15

Washer

M20087

Unavailable

16

Tuned Pipe Ass'y | SUV 550

605150134

Unavailable

17

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable
